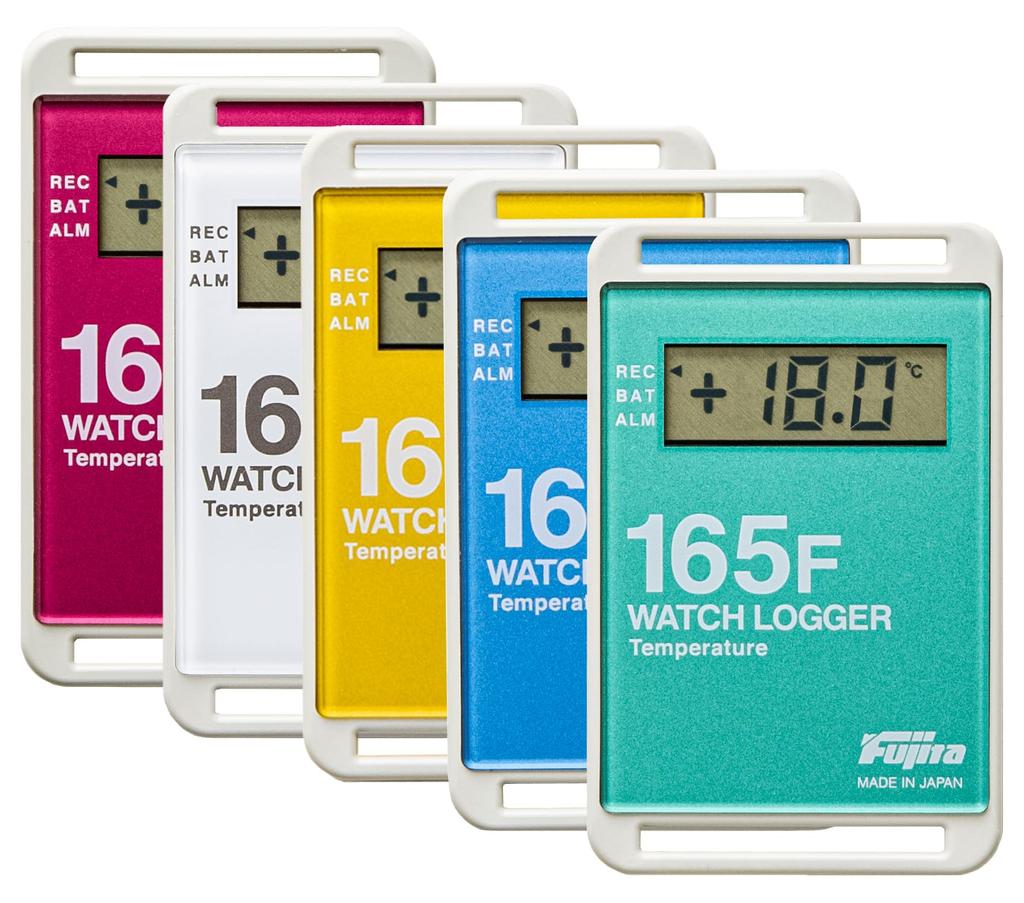

This electronic recorder features a compact size and a five-color panel.
Its compact size and condensed functionality won't get in the way of your work.
Its IP67 waterproof construction means that even if the unit gets dirty, it can be wiped clean and disinfected for continued use.
It runs on a replaceable, commercially available coin battery, so it's not restricted by the Radio Law or aircraft installation.
The five-color panel allows for color-based identification and management.
Visualize your work by displaying sample color, case color, installation location color, and graph color.
It uses the international NFC standard, making it ideal as a logger for the IoT era.
In addition to operation via PC, it can also be used with smartphones and tablets.
Data can be sent via email or FTP with GPS information attached with a single touch.
The smartphone and PC apps can be downloaded for free after registration.
Example Applications
Management systems for pharmaceuticals, clinical test samples, active pharmaceutical ingredients, and chemicals in research and medical institutions.
Temperature control to ensure the safety of frozen foods, fresh foods, seafood, meat, and dairy products.
Monitoring management in agriculture, forestry, fisheries, livestock, and various maintenance services.
Temperature and humidity control to add value to the storage and transportation of wine and alcohol containers and flower arrangements.
Preventive temperature and humidity maintenance management for high-value items such as paintings.
Specifications
[Measurement Element] Temperature
[Number of Channels] 1ch
[Measurement Range] -40°C to 80°C
[Measurement Accuracy] ±1°C (0°C to 40°C), ±2°C (-40°C to 0°C / 40°C to 80°C)
[Measurement Display Resolution] 0.5°C
[Sensor] Temperature Measurement IC
[Recording Interval] 1 minute or more 255-minute interval (adjustable in 1-minute increments)
[Recording Capacity] 16,000 records
[Recording Mode] One-time (recording stops when capacity is full), Rollover (recording continues by overwriting old data when capacity is full)
[LCD Display] Measurement Value, Operation Display, Battery Life Warning, Warning Display, Unit
[Power Supply] One CR2025 Lithium Battery
[Battery Life] Approximately 1 year (battery life may vary depending on usage conditions)
[Data Protection] Data stored in non-volatile memory
[Interface] Wireless communication (uses dedicated reader KT-350)
[Dimensions] H54 x W34 x D10mm
[Weight] Approximately 18g (including one CR2025 battery)
[Operating Environment] -40 to 80°C / 5 to 90% RH
[Accessories] One CR2025 Lithium Battery, One Instruction Manual (Warranty Card)
Recommended PC Requirements
OS: Windows Vista/7/8, CPU: Pentium 200MHz or higher Display resolution: 1280x720 or 1920x1080. USB and CD-ROM (external). Requires dedicated reader KT-350 or NFC card reader.
Compatible smartphones and tablets running Android version 4.03 or higher. Interface: Models with NFC card reader.
Country of Origin: Japan
This electronic recorder features a compact size and a five-color display.
Temperature Measurement Range: -40°C to 80°C. Resolution: 0.5°C. Accuracy: ±1°C (0°C to 40°C), ±2°C (-40°C to 0°C / 40°C to 80°C).
Recording Interval: 1 minute to 255 minutes (adjustable in 1-minute increments). Recording Capacity: 16,000 records.
Recording Modes: One-time (recording stops when capacity is full), Rollover (recording continues by overwriting old data when capacity is full).
