60kg DS5160 High Torque Full Metal Digital Steering Servo, Waterproof, 270°, Compatible with Baja RC Cars

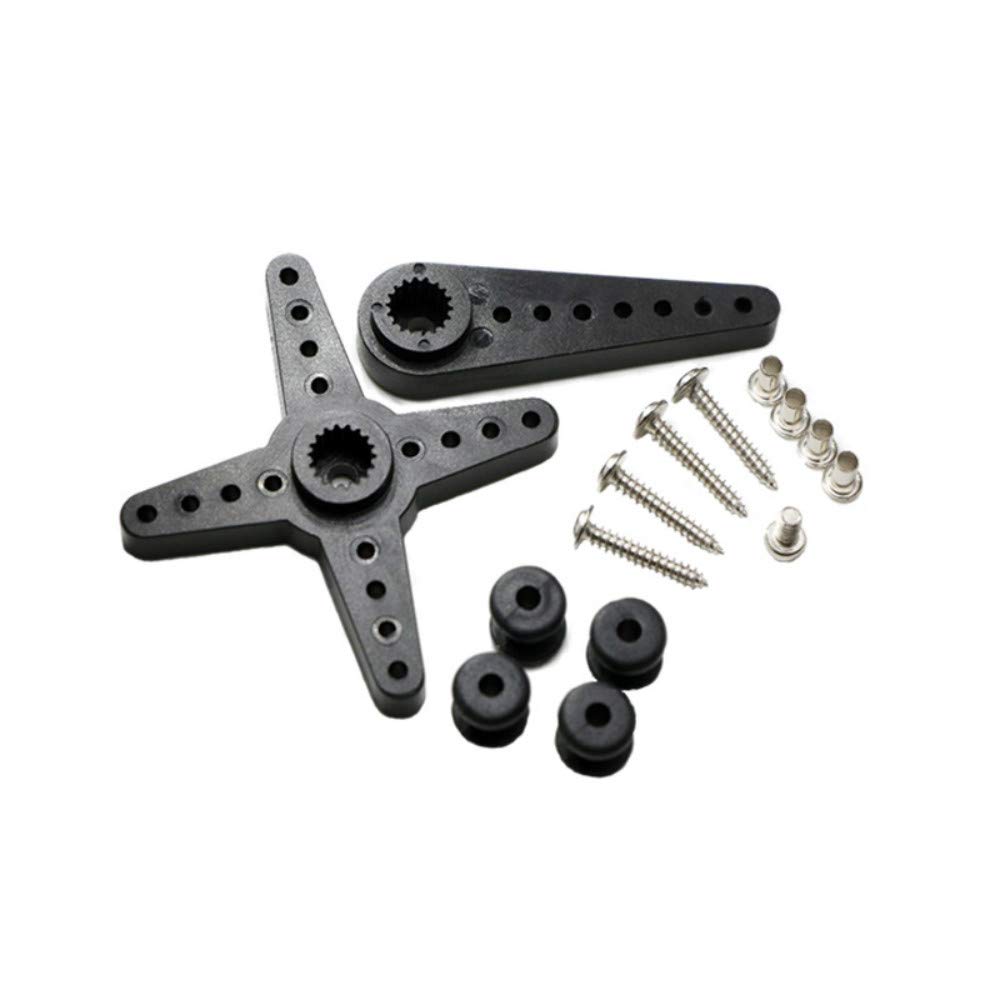

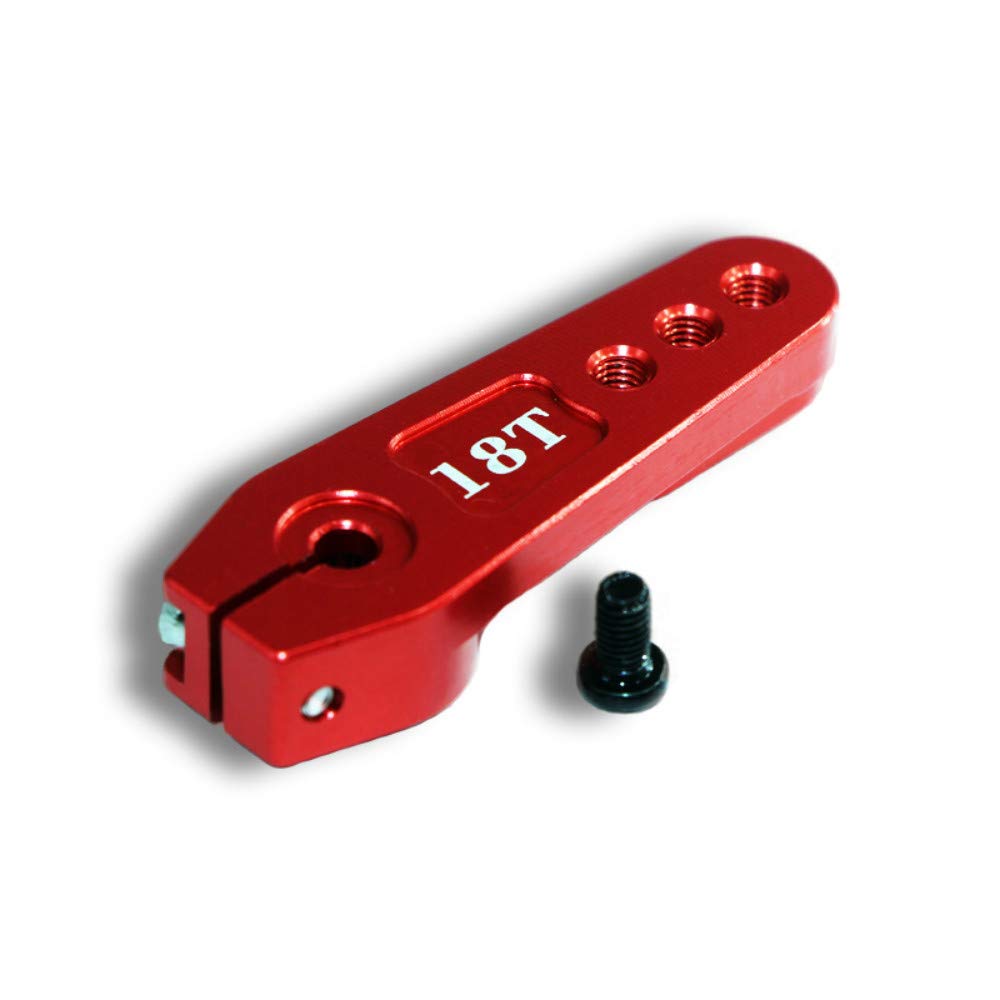

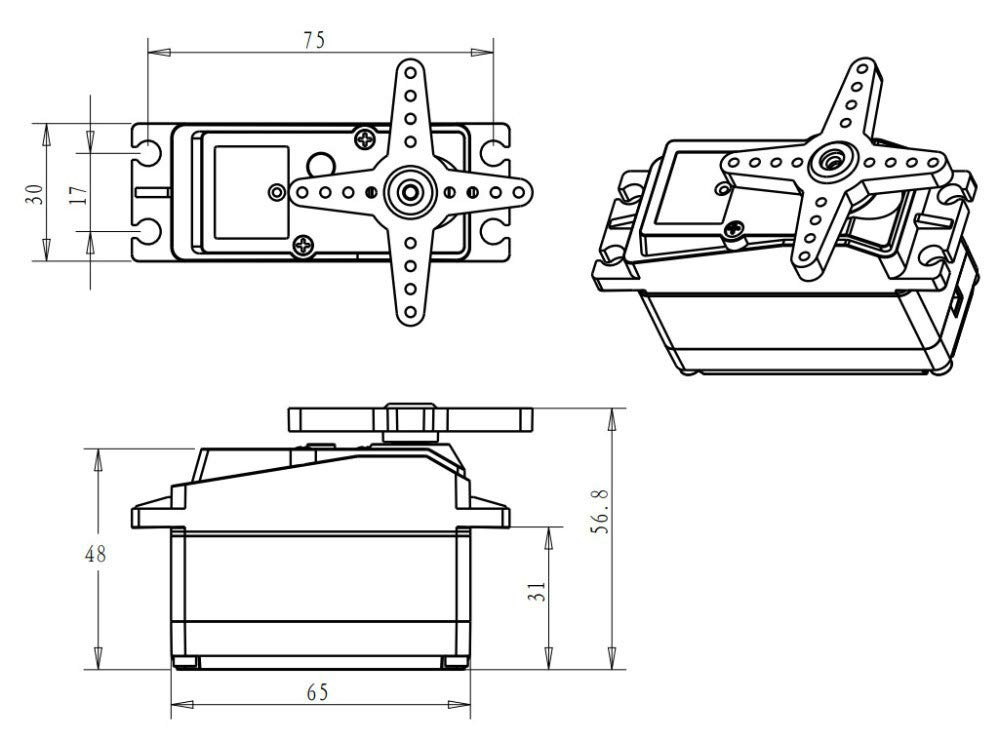

Note: 1. The optimum operating voltage is 7.4V. We recommend using a 2-second battery (6V-8.4V) for power. 2. The servo's operating angle is 180° or 270° (PWM: 500µs-2500µs). Some remote controls can only output 1000-2000µs, so we recommend purchasing the 270° version. Package Includes: 1 DS5160 Digital Metal Robot Servo 1 18T Servo Arm Set of Screws (See Picture) or 1 DS5160 Digital Metal Robot Servo 1 18T Metal Servo Horn Disc Set of Screws (See Picture) Size: 65*30*48 (Servo) Weight: 162g Wire Length: 320mm Speed: 0.17 sec/60 degrees at 6v 0.15 sec/60 degrees at 7.4v 0.13 sec/60 degrees at 8.4v Torque: 58 kg/cm² at 6v 65 kg/cm² at 7.4v 70 kg/cm² at 8.4v Voltage: 6v-8.4v Dead Zoning setting: 3 microseconds Features: - Durable metal gears - Dual ball bearings - Programmable digital amplifier with Mosft drive - Shaft mounting holes on the bottom - Original factory product - Low noise Includes: Long and short aluminum holders and circle holders; 18T and circle holders; Directional angle: up to 180 or 270 degrees - Mechanical angle: 360 degrees (Compatible with Futaba JR Hitec plugs/output wheels/radio control systems) Caution: When using servos, avoid locking them. Locking will increase the internal current of the servo several times, causing temperature increases and potentially damaging the servo. Usage Precautions: 1. We recommend using lithium polymer batteries with a high discharge rate (above 5°C). Do not use dry batteries. 2. Use a short, thick power cord; do not use Dupont cords. 60kg RDS5160 Digital Metal Robot Servo (270° Control Angle) Mechanical Angle: 360° Precision potentiometer, waterproof with stable, low noise, and high linearity and accuracy. Strong copper and aluminum gears with a CNC aluminum intermediate shell. Optimal operating voltage is 7.4V. Torque: 58kg.cm.at (6V), 65kg.cm.at (7.4V), 70kg.cm.at (8.4V). Perfect for your DIY projects: Easy to install and widely used in remote-controlled crawler cars, vehicles, trucks, boats, aircraft, helicopters, robot arms, etc.
