Attributes:
*Die Thread Size: 3/8-24UNF; *Die Outer Diameter: 30mm; *Die Thickness: 11mm; *Die Material: Alloy Tool Steel (9SrCi)
*Stock Size: 30mm x 11mm (D*H); *Stock Fit Die Size: 20mm-30mm Outer Diameter/M9-M11;
*Stock Overall Length: 255mm; *Stock Handle Diameter: 9.6mm; *Stock Material: Cast Iron

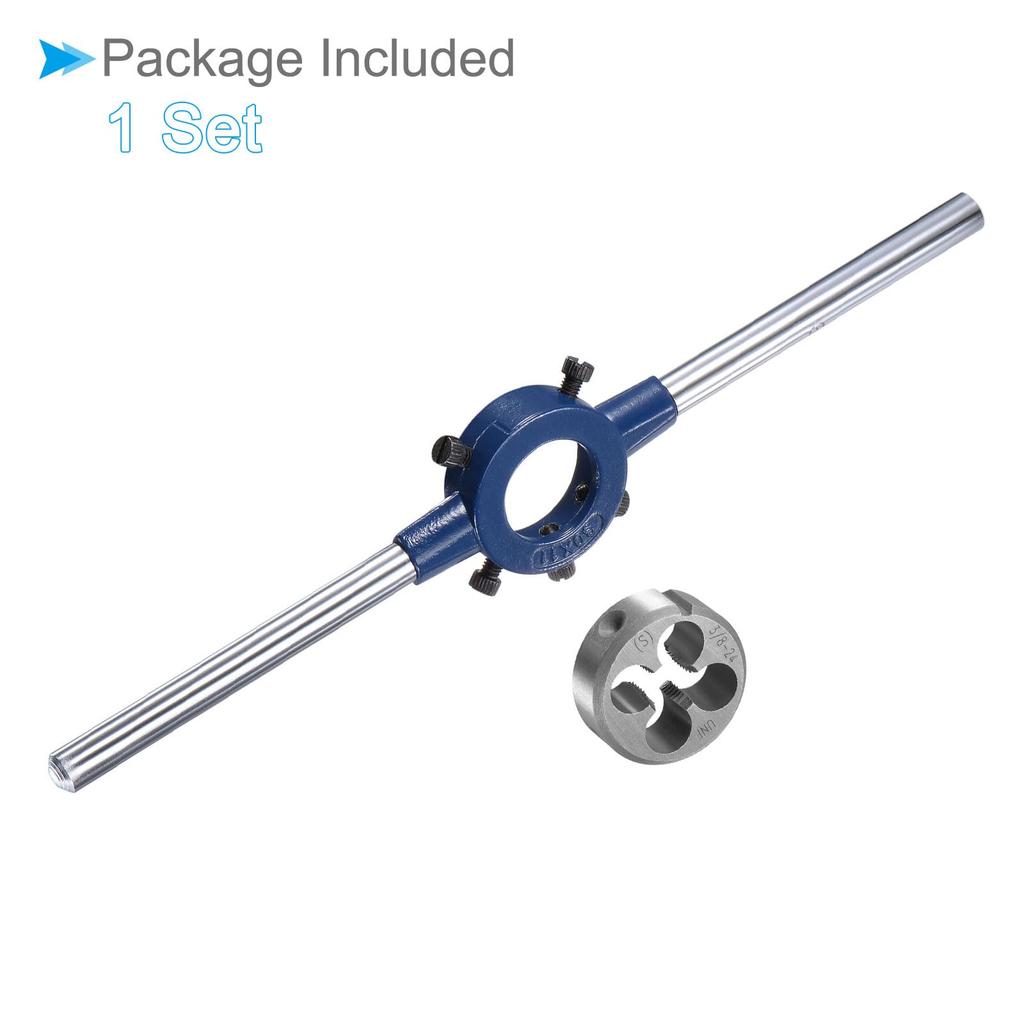

Package Contents:
*1 x Round Die, 1 x Die Stock Handle
Applications and Features:
---The die and die wrench set is widely used in repairs to cut or create threads on bolts, pipes, fittings, rods, bars, or other cylindrical objects. It is suitable for machining stainless steel, aluminum alloys, cast iron, copper, iron, aluminum, and plastic. It is an essential tool for anyone who needs to precisely cut threads on cylindrical objects.

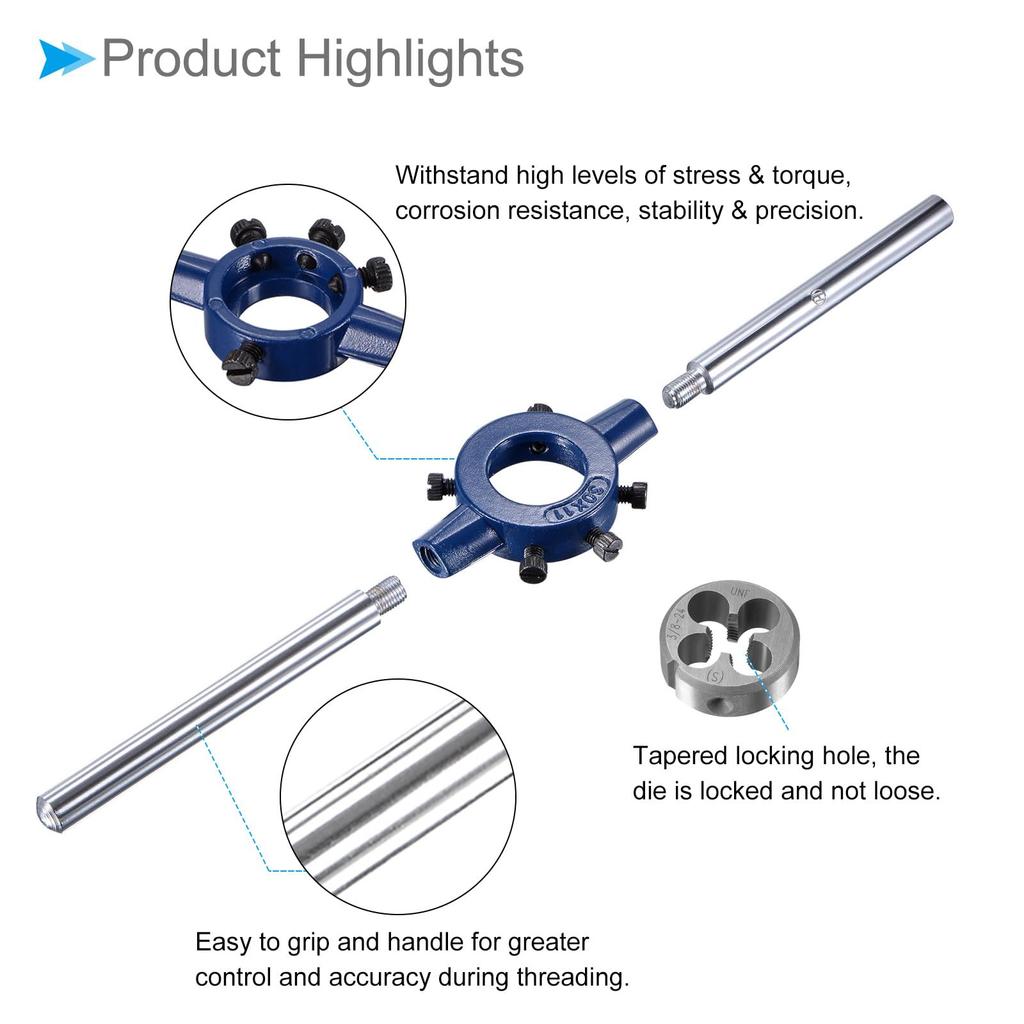

9SrCi alloy tool steel round dies offer high torque, excellent wear resistance, and durability. Designed with tapered locking holes, the dies lock securely when cutting male threads and won't loosen. Use them with the die handle to apply pressure and rotate the die around the component to form the desired thread.
The die wrench is made of strong, durable cast iron, withstanding high levels of stress and torque while providing corrosion resistance, stability, and precision. The die stock is comfortable to grip and handle, improving control and precision during threading.
Helpful Tips:
Use a lubricant (such as oil or coolant) and rotate the die slowly and steadily, applying consistent pressure. It is important to periodically invert the die to break up chips and prevent clogging. Select the appropriate size die and die stock wrench based on the diameter of the object requiring threading.

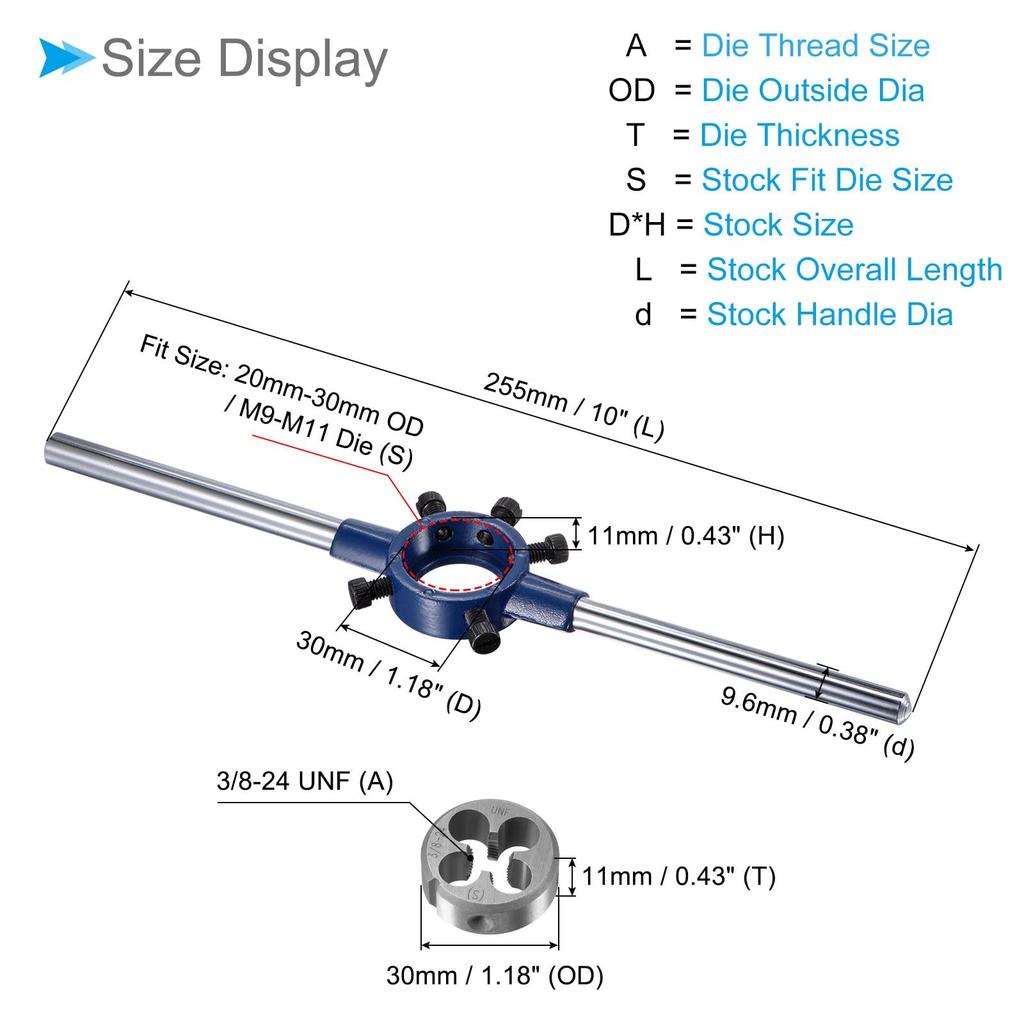

★Die and Stock Set Sizes---Round Die: Thread Size: 3/8-24UNF. Outer Diameter: 30mm, Thickness: 11mm. Die Stock: Size: 30mm x 11mm. Compatible die size: 20mm-30mm outer diameter/M9-M11; Overall length: 255mm, Handle length: 9.6mm.
★Easy to Use---Designed with a tapered locking hole, the die securely locks in place when cutting external threads. The die stock is comfortable to grip and handle, improving control and precision during thread cutting.
★Easy to Use---The machine tap features straight flutes designed for fast downward chip evacuation. Suitable for tapping machines, drill presses, CNC milling machines, and milling machines. The drill bit's sharp spiral flutes create smooth, accurate holes, allowing for faster drilling speeds, improved chip evacuation, and improved coolant flow.
★Alloy Tool Steel and Cast Iron---9SrCi alloy tool steel dies offer high torque, excellent wear resistance, and durability. This wrench is made of strong, durable cast iron, withstanding high levels of stress and torque, providing corrosion resistance, stability, and precision.
★Helpful Tips---Use lubricant (such as oil or coolant) and apply constant pressure to rotate the die slowly and steadily. It is important to periodically flip the die to break up chips and prevent clogging. Choose the appropriate size based on the diameter of the object.
