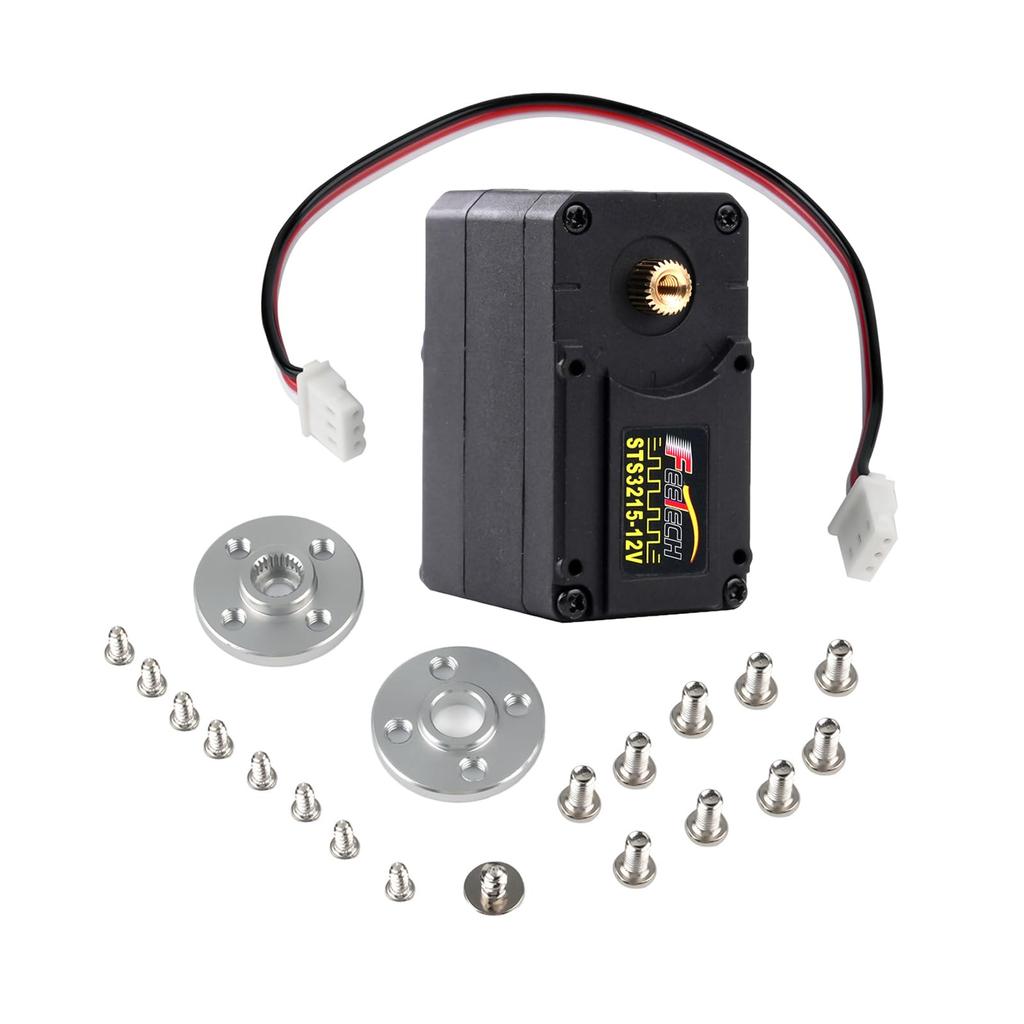

DIYmall STS3215 12V 30KG Magnetic Encoder Servo Metal Gear Dual Axis TTL Serial Bus Servo 360 Degree String Servo for Arduino Robot Arm Smart Robot

Product Description

Model: STS3215-12V (ST-3215-C018) Product Name: 12V 30KG 2-Axis TTL String Servo Storage Temperature Range: -30℃~80℃ Operating Temperature Range: -20℃~60℃ Size: A: 45.2mm B: 24.7mm C: 35mm Weight: 55±1g Gear Type: Copper Angle Limit: Unlimited Bearing: Ball Bearing Horn Gear Spline: 25T/OD5.9mm Horn Type: Plastic, POM Case: PA+GF Connector Wire: 15CM Motor: Core Motor Operating Voltage Range: 4-14V No-Load Speed: 0.222 sec/60°@12V Operating Current (No-Load): 180mA@12V Peak Stall Torque: 30kg.cm@12V Rated Torque: 10kg.cm@12V Stall Current: 2.7A@12V Command Signal: Digital Packet Protocol Type: Half-Duplex Asynchronous Serial Communication ID Range: 0-253 Communication Speed: 38400bps~1Mbps Travel Angle: 360° (0~4096°) Feedback: Load, Position, Speed, Input Voltage, Current

Package Contents: STS3215 12V 30KG Magnetic Encoder Servo x 1.

Safety Warnings

None STS3215 12V 30kg Serial Bus TTL Control Smart Servo with 12-bit High-Precision Magnetic Coding Sensor Allows position control within a 360-degree effective range while continuously rotating 360 degrees. Operating Voltage Range: 4-14V; No-Load Speed: 0.222 sec/60°@12V; Operating Current (No-Load): 180mA@12V; Peak Stall Torque: 30kg.cm@12V; Rated Torque: 10kg.cm@12V; Stall Current: 2.7A@12V; Command Sign: Digital Packet Multiple servos can be daisy-chained on the same serial bus. Suitable for use in industrial equipment, robots, and small torque-driven application scenarios.

Items Required: STS3215 12V 30KG Magnetic Encoder Servo x 1
