Feature:

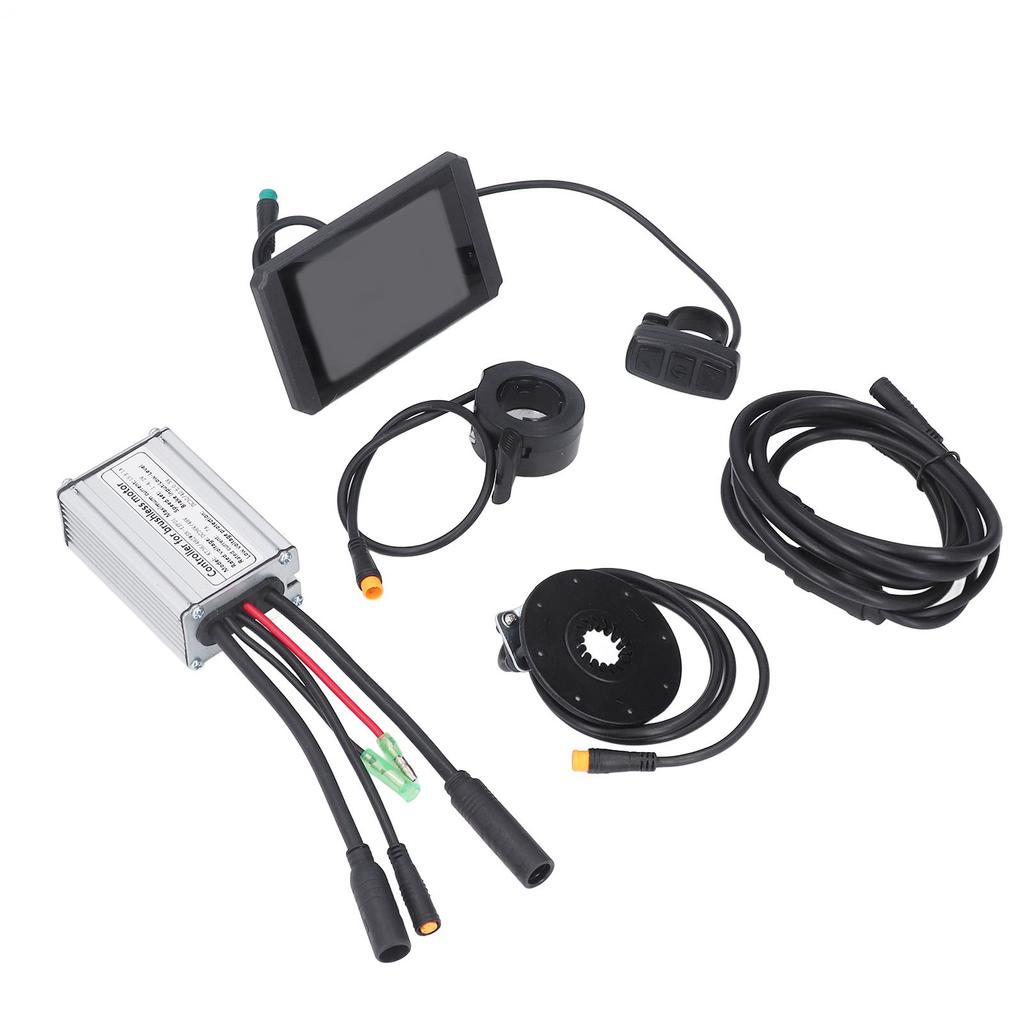

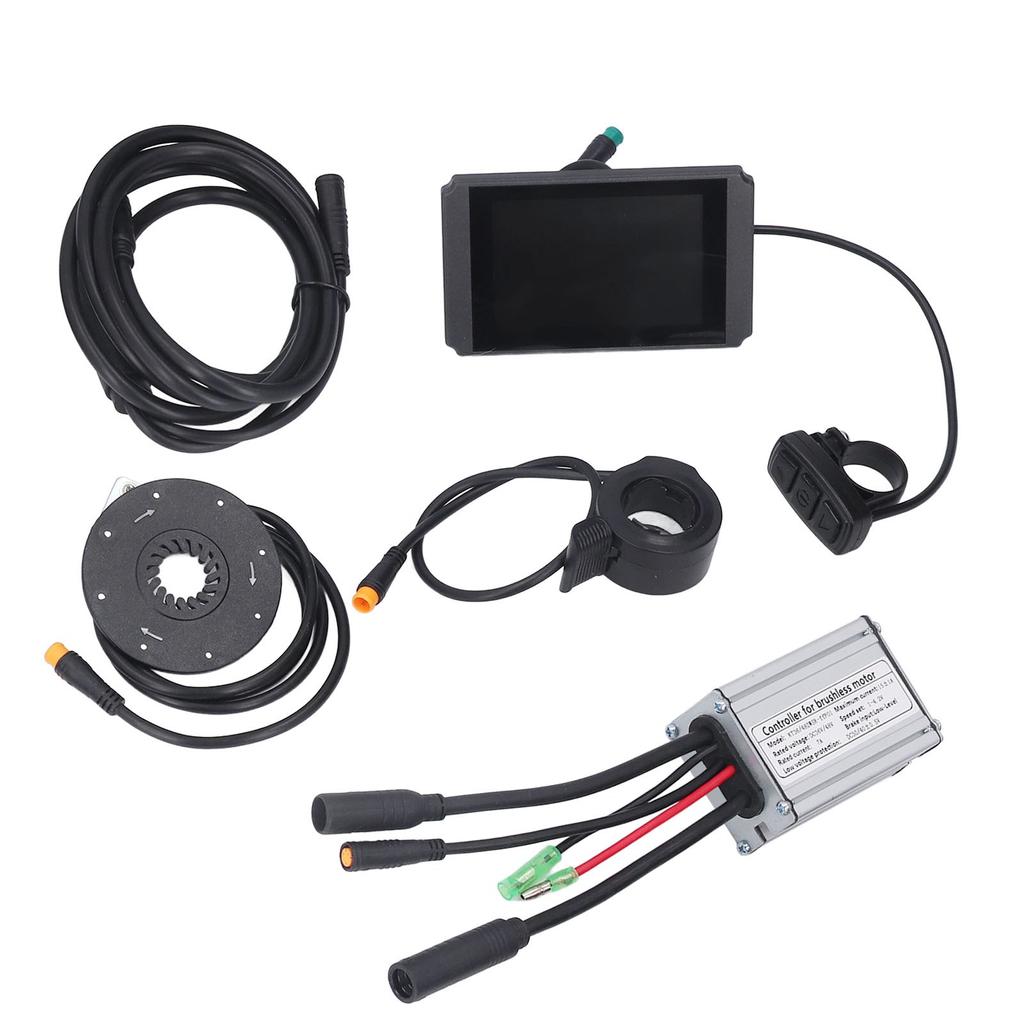

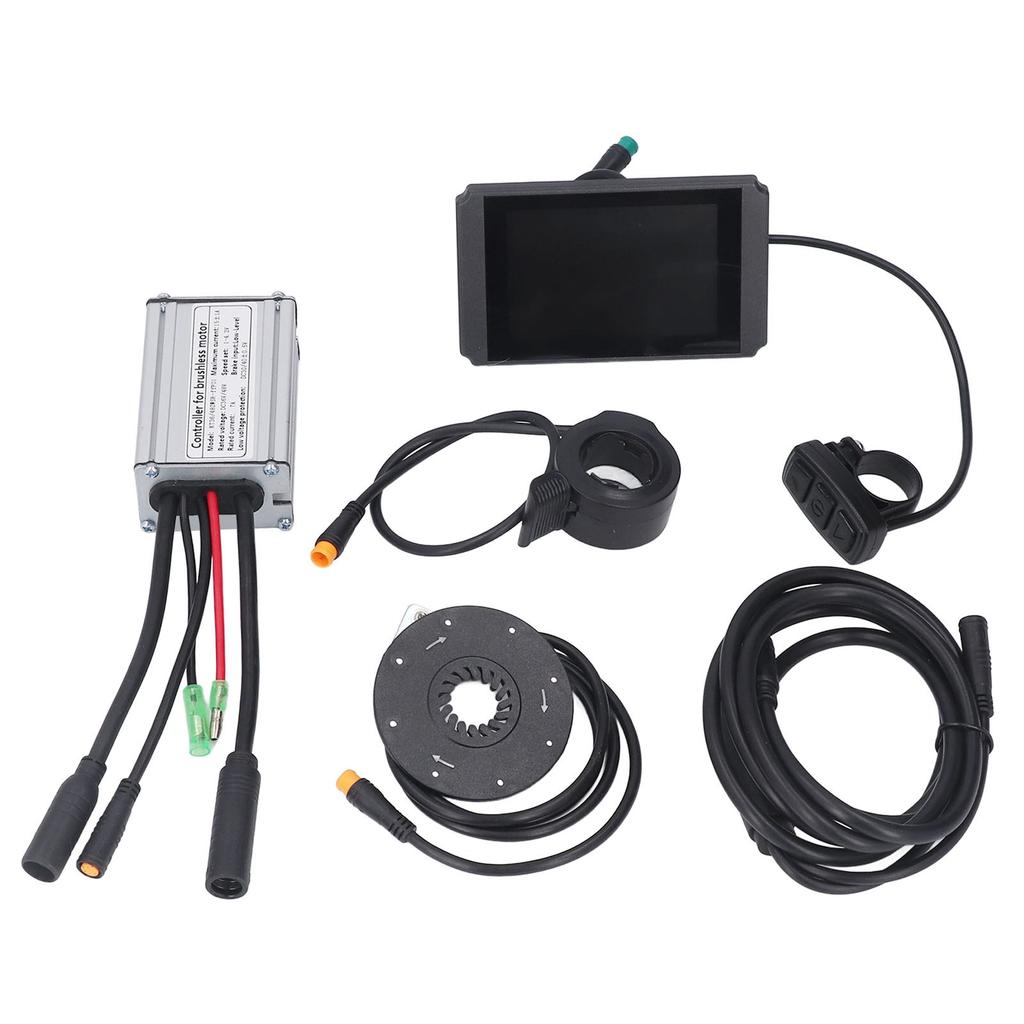

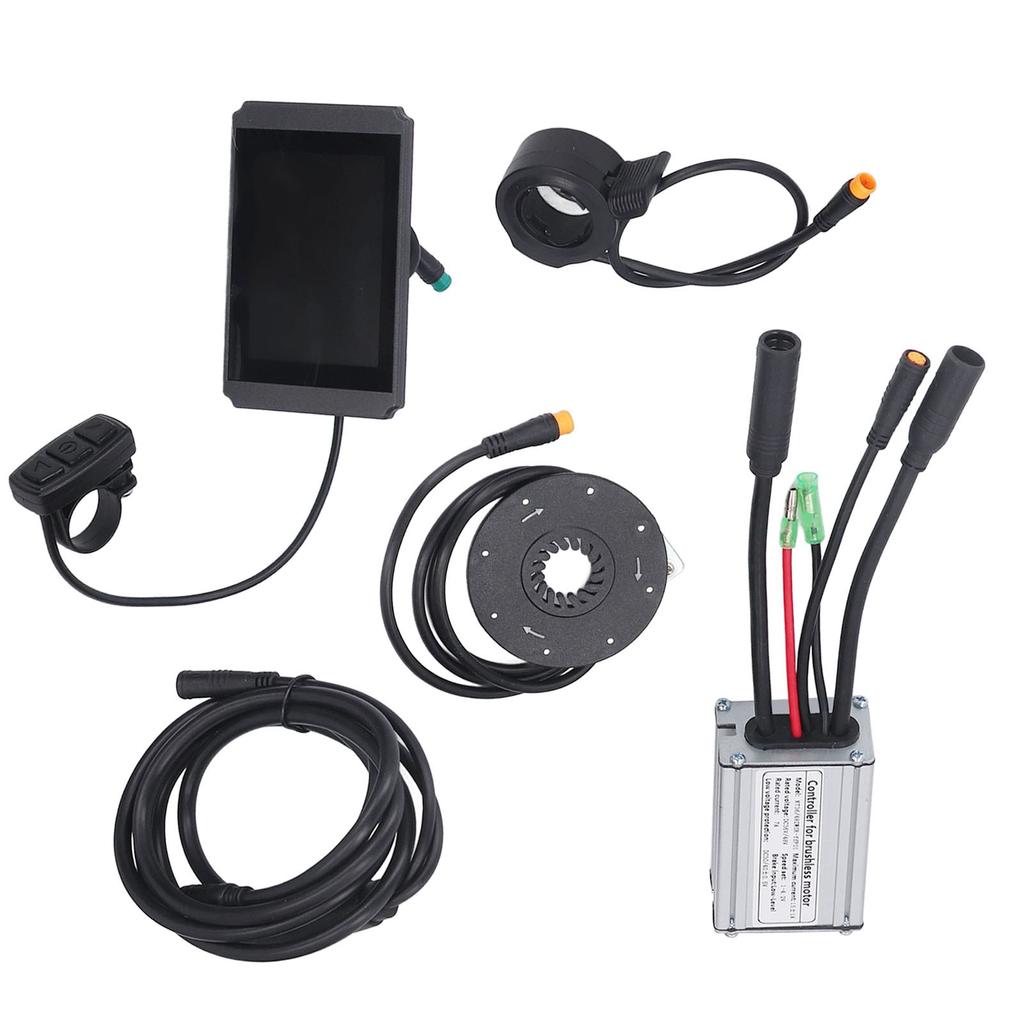

1. [Complete Kit] Professional bicycle lithium battery modification controller kit includes 15A controller, LCD8H instrument, 130X finger dial, 8C power assist sensor and one to two connection wire.
2. [Good Heat Dissipation] Bicycle modification controller housing is made of high quality metal with grooves design, which has good heat dissipation, protects the internal circuit and avoids thermal overload.
3. [Waterproof Meter] Electric bike modified meter is made of high quality ABS material, with good toughness and waterproof performance, providing better protection, light and durable.
4. [Multi Function Meter] Electric bike conversion kit with LCD8H display meter with multiple functions to display battery level, backlight, brake, temperature, travel time, speed, etc, allowing you to easily view.
5. [Application] Electric bicycle 15A controller kit, suitable for 250W, 350W brushless motor. Mainly used for DIY electric scooters, folding bikes, etc. Improve riding fun, suitable for cyclists who like a challenge.
Specification:
Item Type: Electric Bike Controller Kit
Material: Aluminum Alloy + ABS Plastic
Controller Box: Approx. 82 x 53 x 31mm 3.2 x 2.1 x 1.2in
Meter: Approx. 109 x 67mm 4.2 x 2.6in
Controller Rated Voltage: DC 36V 48V
Controller Rated Current: 7A
Controller Maximum Current: 15+ 1A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Applicable Brushless Motor Power: 250W, 350W
Connector Type: Full Waterproof Connector
1 to 2 Wire Description: One end is connected to the controller, the other end is connected to the meter and dial
Controller Wire Definition:
1. Red, black single wire: Power wire
2. Black single large wire (9pin): Motor wire
3. Black single wire (9pin): 1 to 2 wires
4. Black single wire (3pin): PAS power sensor wire
LCD8H Meter Function Description: Up Button, Switch Button, Down Button, PAS Mark, Battery Capacity Indication, Power Display, Running Mark, One Way Time, Total Travel Time, Battery Voltage, Brake Display, 6km h Thrust Assist, Riding Speed (Metric), Maximum Speed, Average Speed, Distance Traveled, Total Distance, Backlight and Headlights, Ambient Celsius, Ambient Fahrenheit.
.
Package List:
1 x Controller1 x Meter1 x
Meter Mounting Bracket4 x Meter Mounting Bracket Gasket2 x Meter Mounting Bracket Screws1 x Meter Manual1 x Throttle Finger Dial1 x Power Assist Sensor1 x Controller Wiring Manual1 x One to Two Connecting Wire
Note:
1. Retrofit kits must be fully waterproof kits.2. Manual measurement, please allow some errors.
