Feature:
1. Metal Housing: The controller housing is made of metal with grooved design, which can protect the internal circuit due to its good heat dissipation function, thus avoiding thermal overload
2. ABS Meter: The meter adopts ABS material, which is light and durable, has good toughness and waterproof performance, and provides better protection for the internal circuit
3. Data display: LCD5 display meter makes it easier to view the data on the panel, such as battery display, light display, brake display, temperature, time, speed, distance function, etc

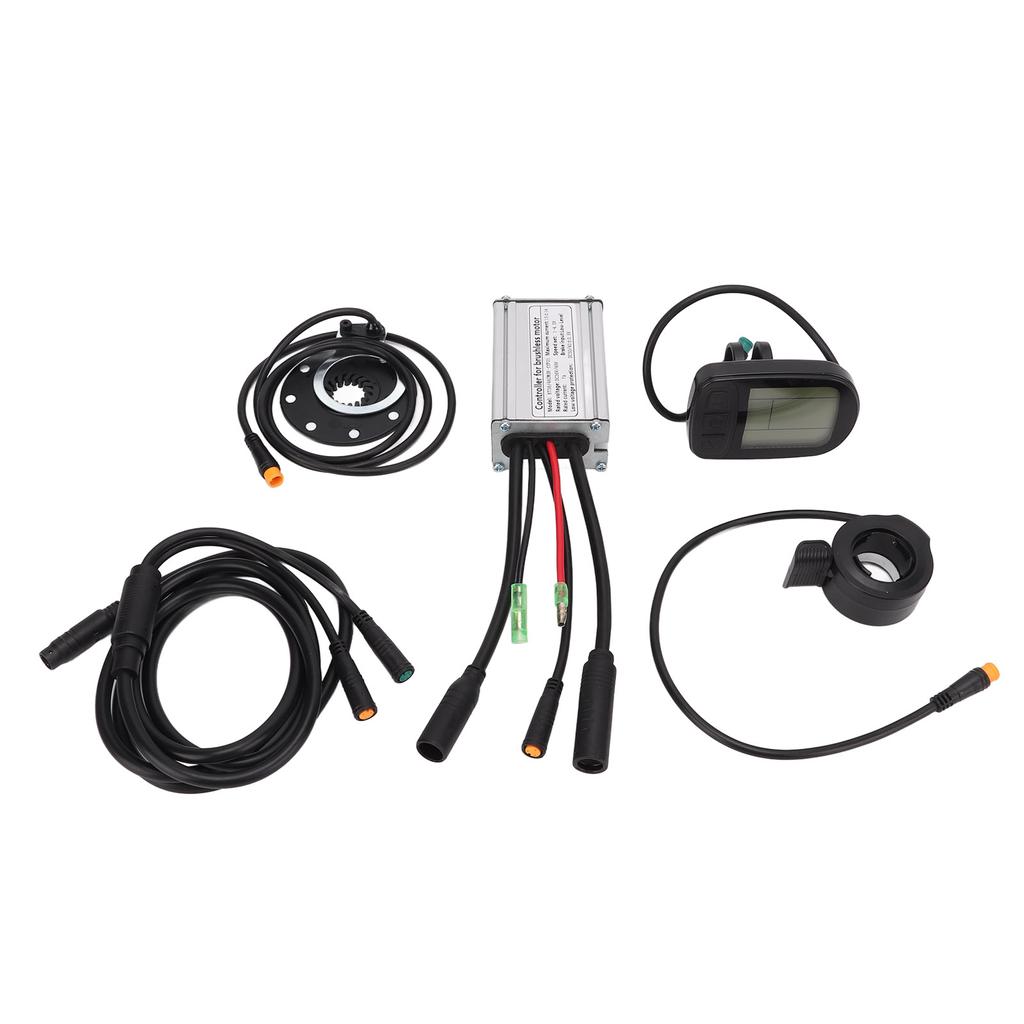

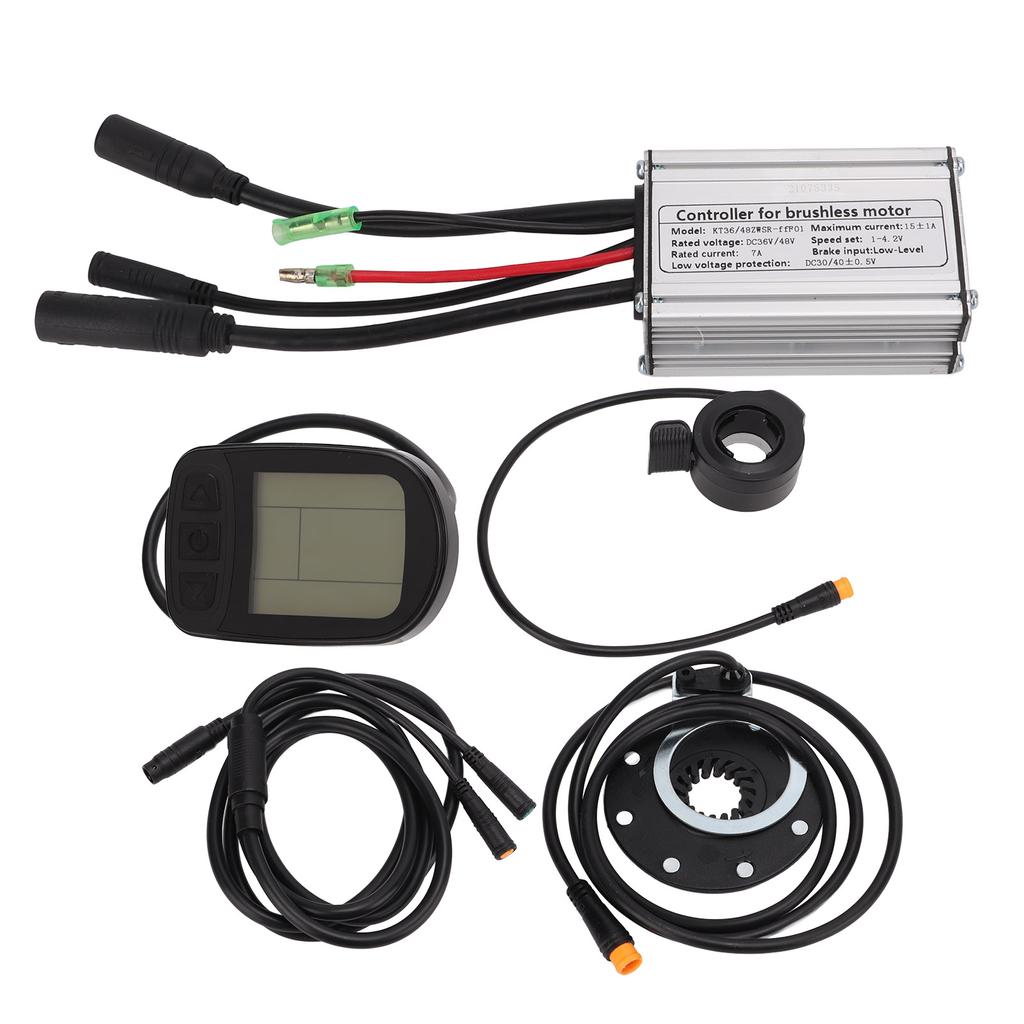

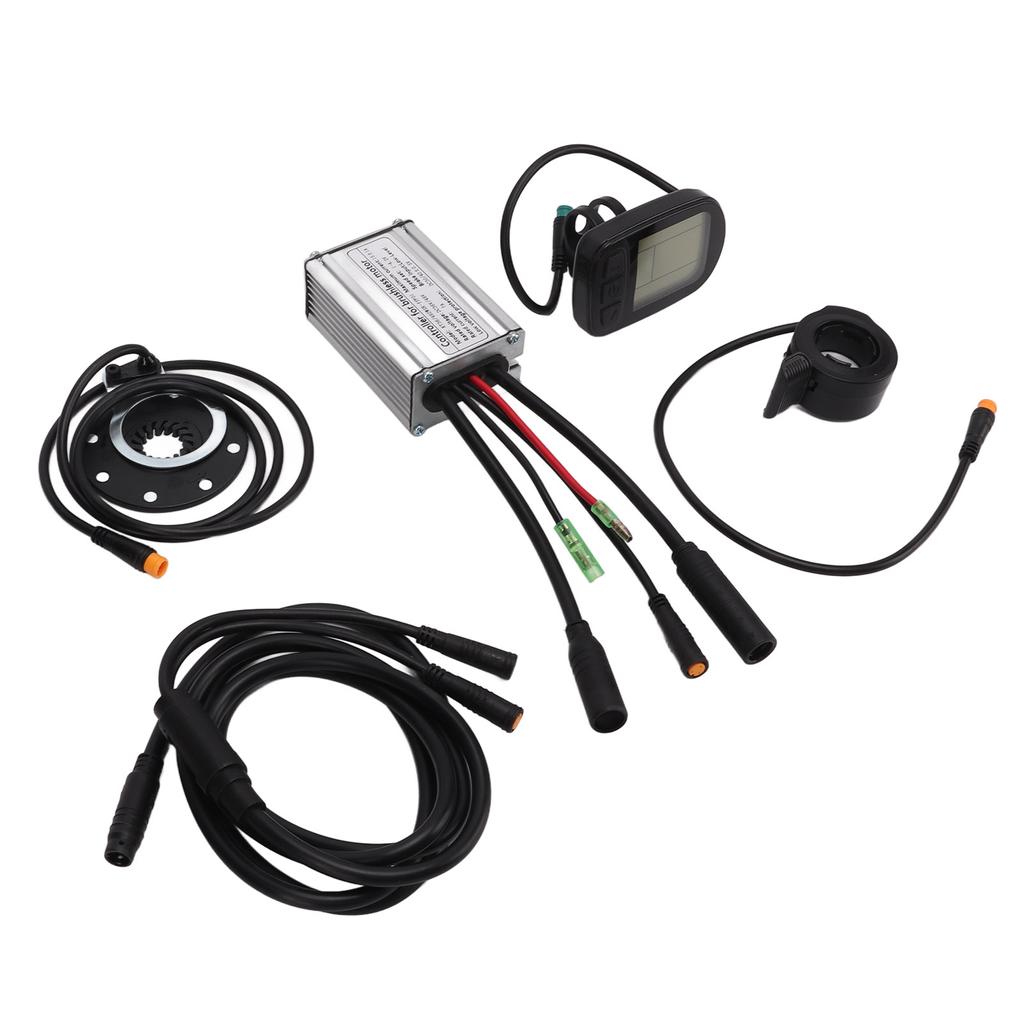

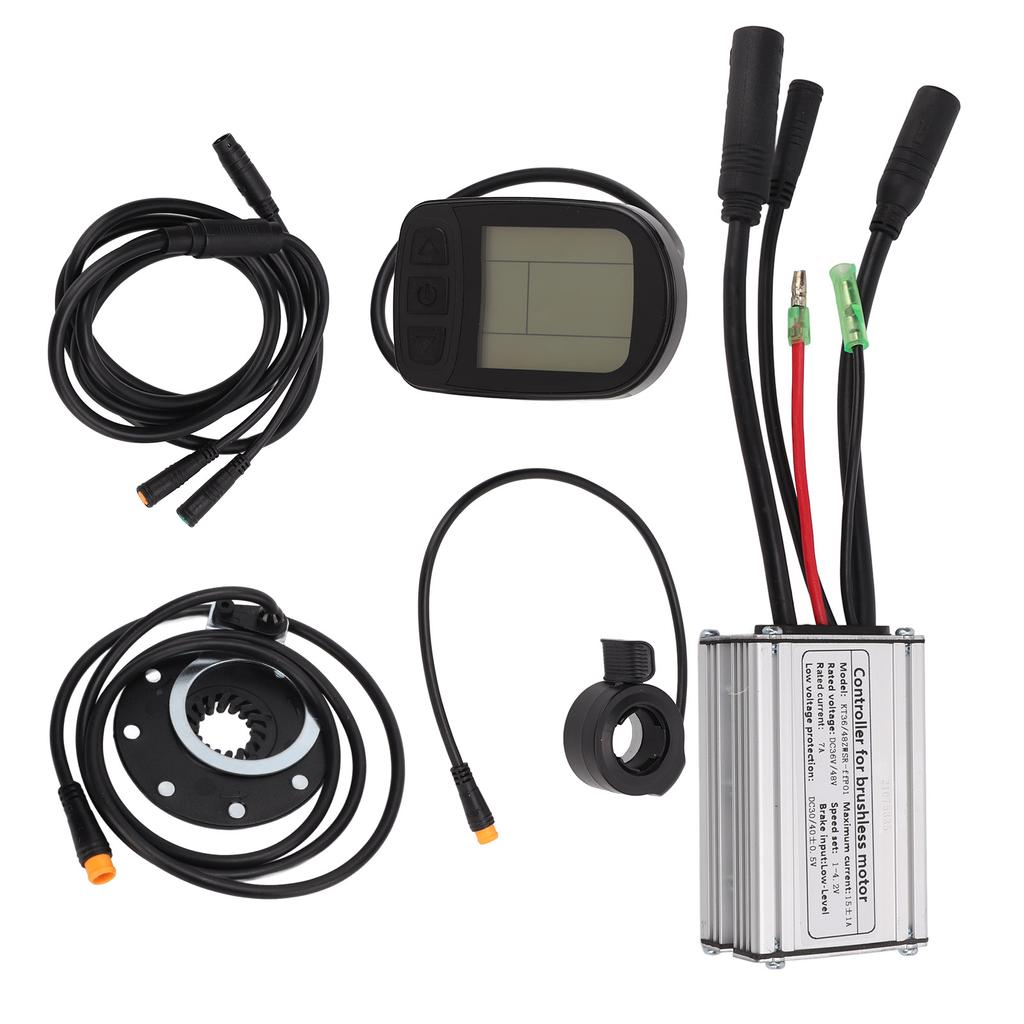

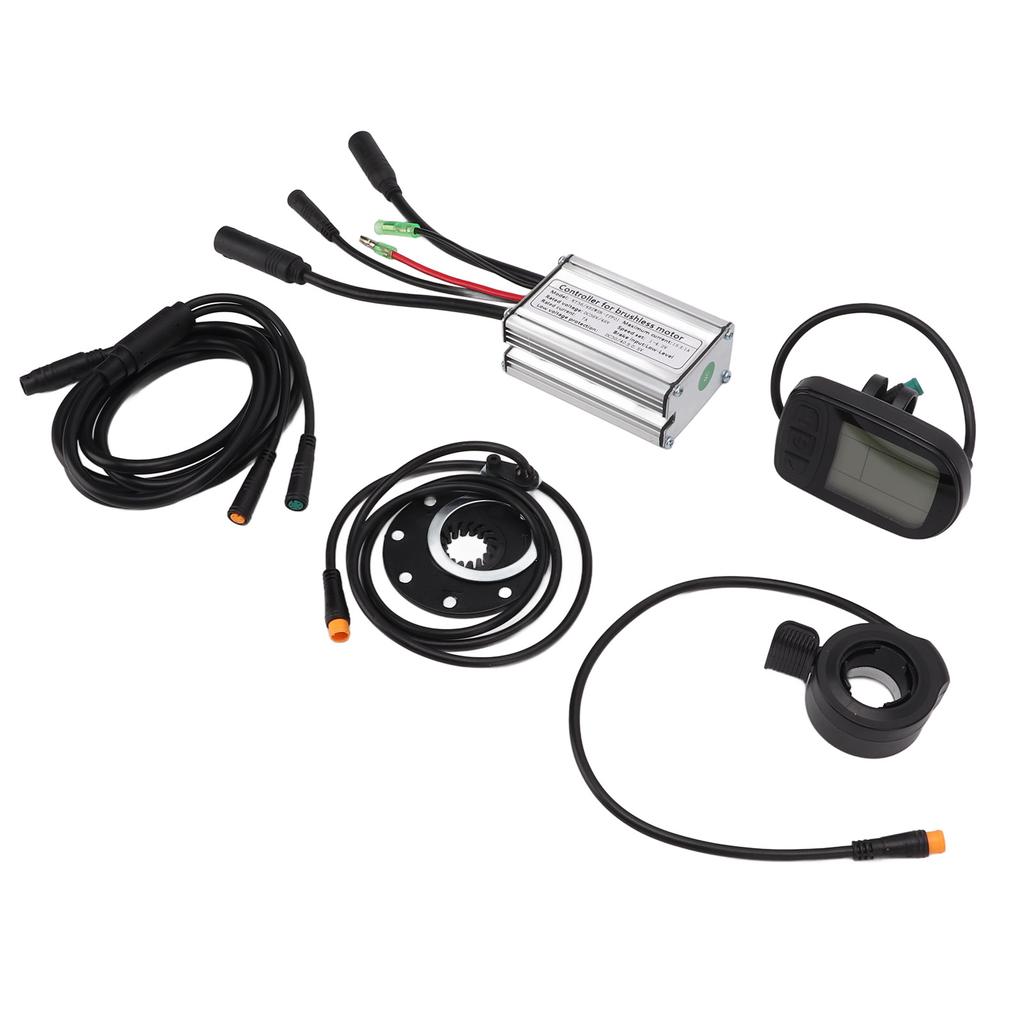

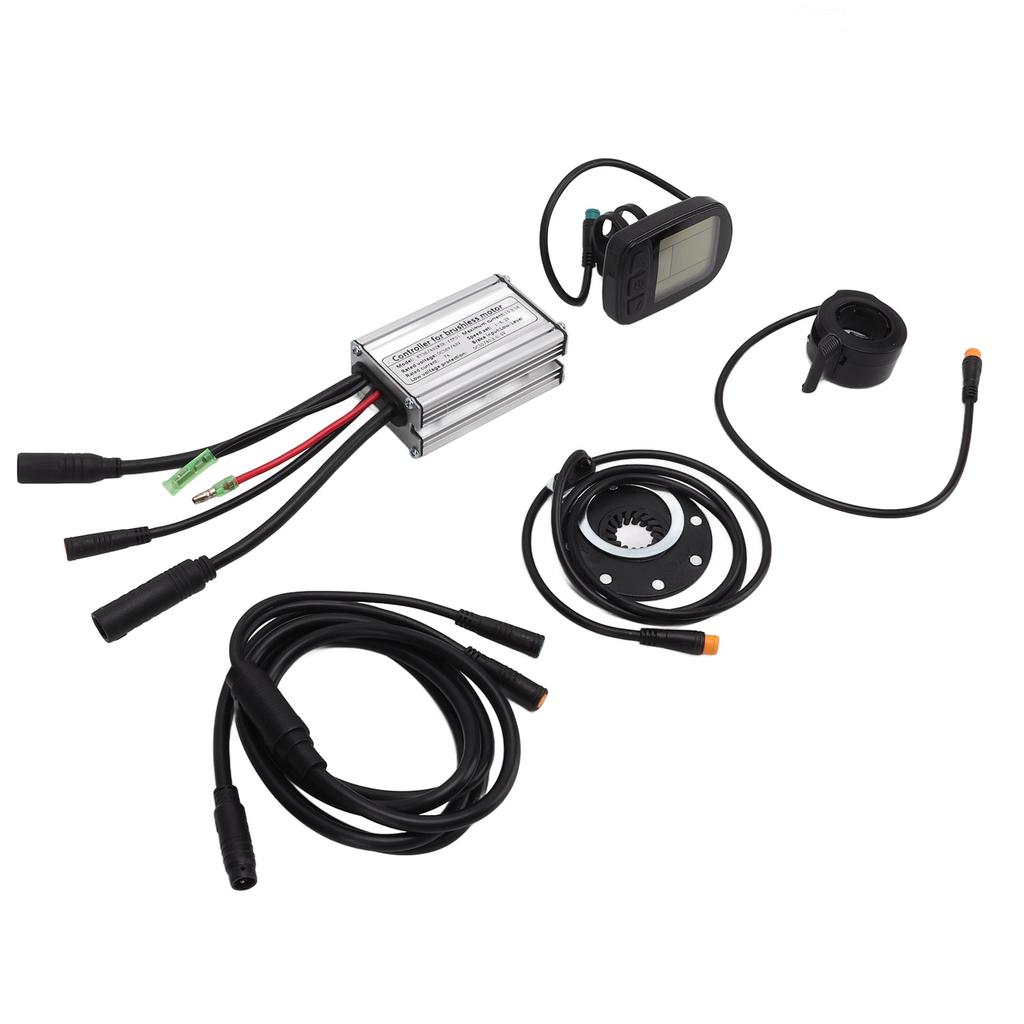

4. Package Contents: The electric bicycle modification kit includes controller, LCD5 instrument, shifter, servo actuator, 1 to 2 cable
5. Scope of Application: Suitable for 250W, 350W brushless motors, mainly used for DIY electric bicycles, electric vehicles, electric scooters, folding cars, etc
Specification:
Item Type: Electric Bicycle Modification Kit
Material: Aluminum Alloy, ABS Plastic
Controller Box: Approx. 82 x 53 x 31mm 3.2 x 2.1 x 1.2in (manual measurement allowable error)
Controller Rated Voltage: DC 36V 48V
Controller Rated Current: 7A
Controller Maximum Current: 15+ 1A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30 40+ 0.5V
Applicable Brushless Motor Power: 250W, 350W
Connector Type: Full Waterproof Connector
1 to 2 Line Description: One End is Connected to the Controller, the Other End is Connected to the Meter and Dial
Controller Line Definition:
1. Red, Black Single Wire: Power Wire
2. Black Single Large Wire (9pin): Motor Wire
3. Black Single Wire (9pin): 1 to 2 Wires
4. Black Single Wire (3pin): PAS Power Sensor Wire
LCD5 Display Instrument Function Description: Up Button, Switch Button, Down Button, PAS Marking, Battery Capacity Indication, Power Assist Function, One Way Time, Total Travel Time, Throttle Display, 6km h Thrust Assist System, Riding Speed (metric), Riding Speed (imperial), Maximum Speed, Average Speed, Distance (metric), Distance (imperial), Travel Distance, Total Distance, Battery Voltage, Brake Display, Backlight and Headlights.
.
Package List:
1 x Controller1 x Meter1 x Instrument Manual1 x Throttle Controller1 x Servo Actuator Sensor1 x Controller Wiring User Manual1 x 1 to 2 Connecting Line
Note:
Note that the retrofit kit must be a fully waterproof kit
