Feature:

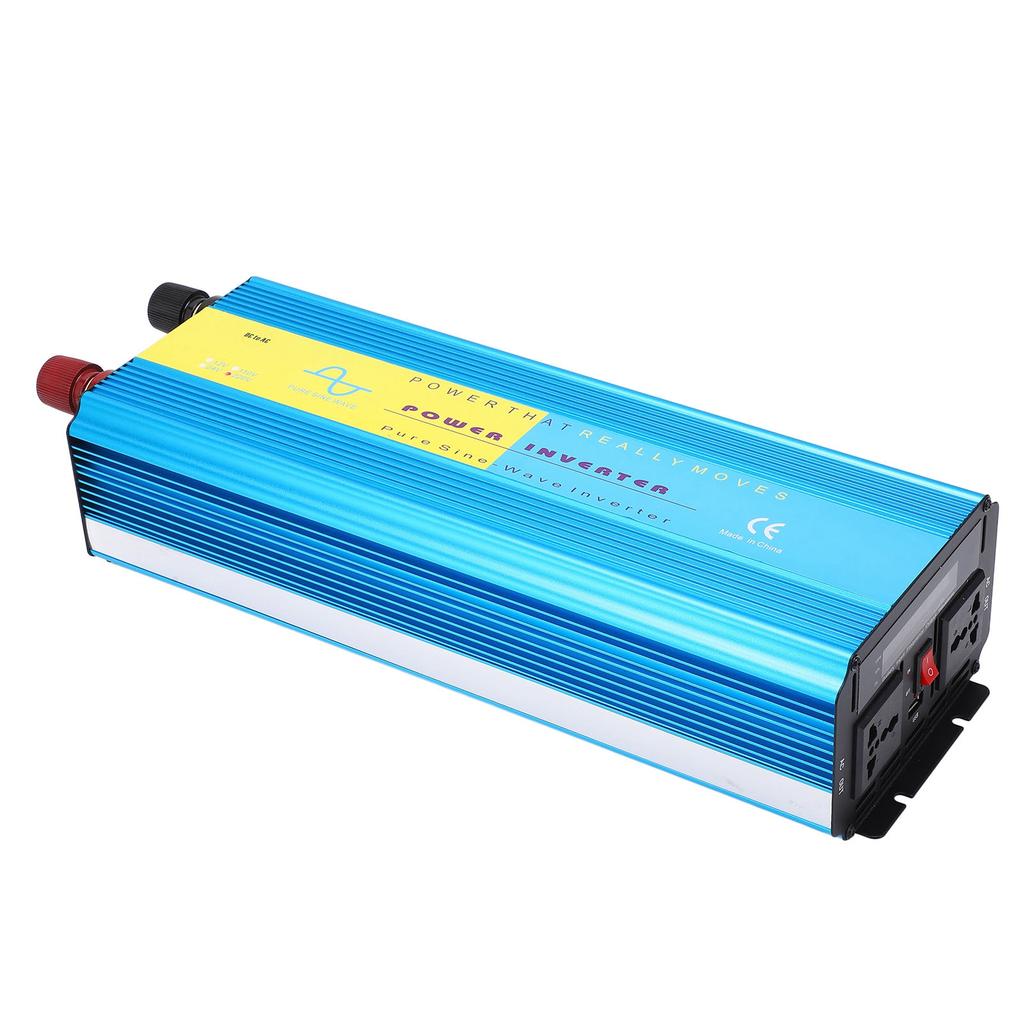

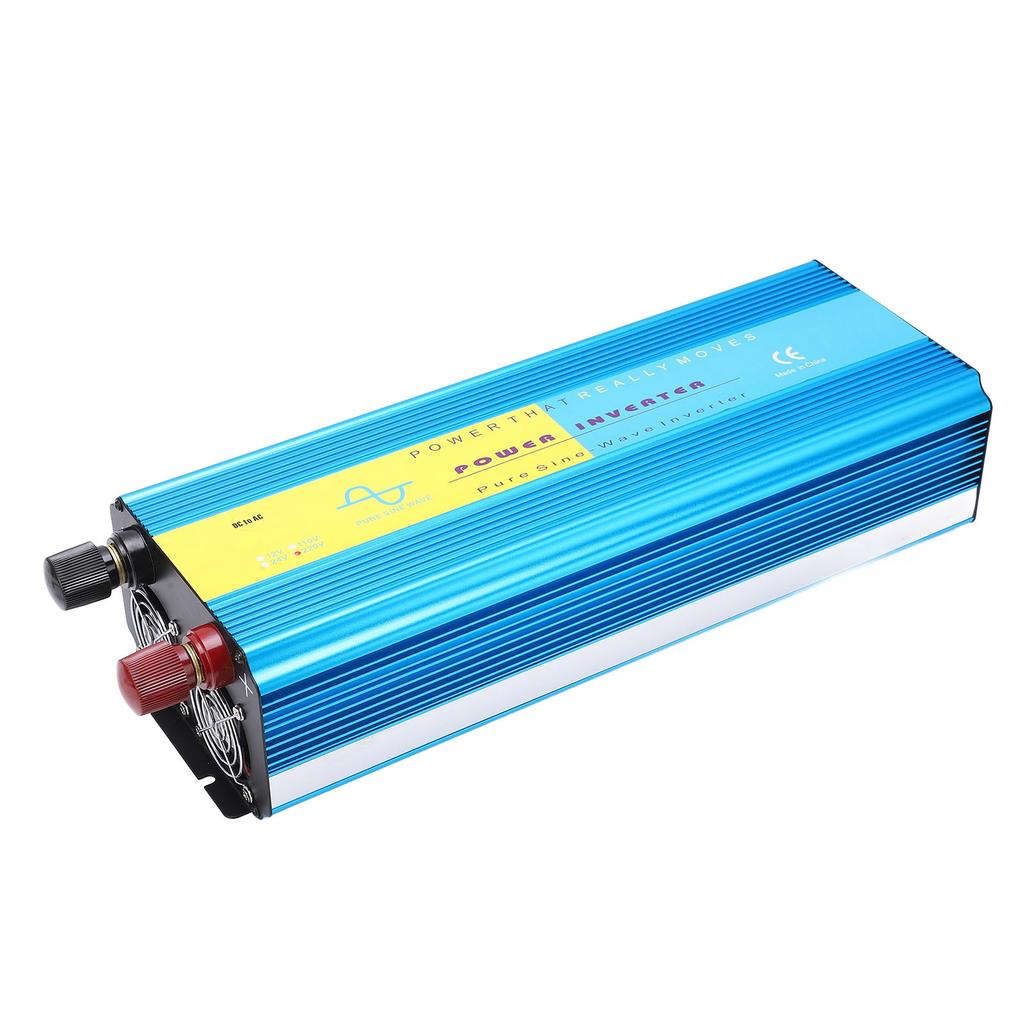

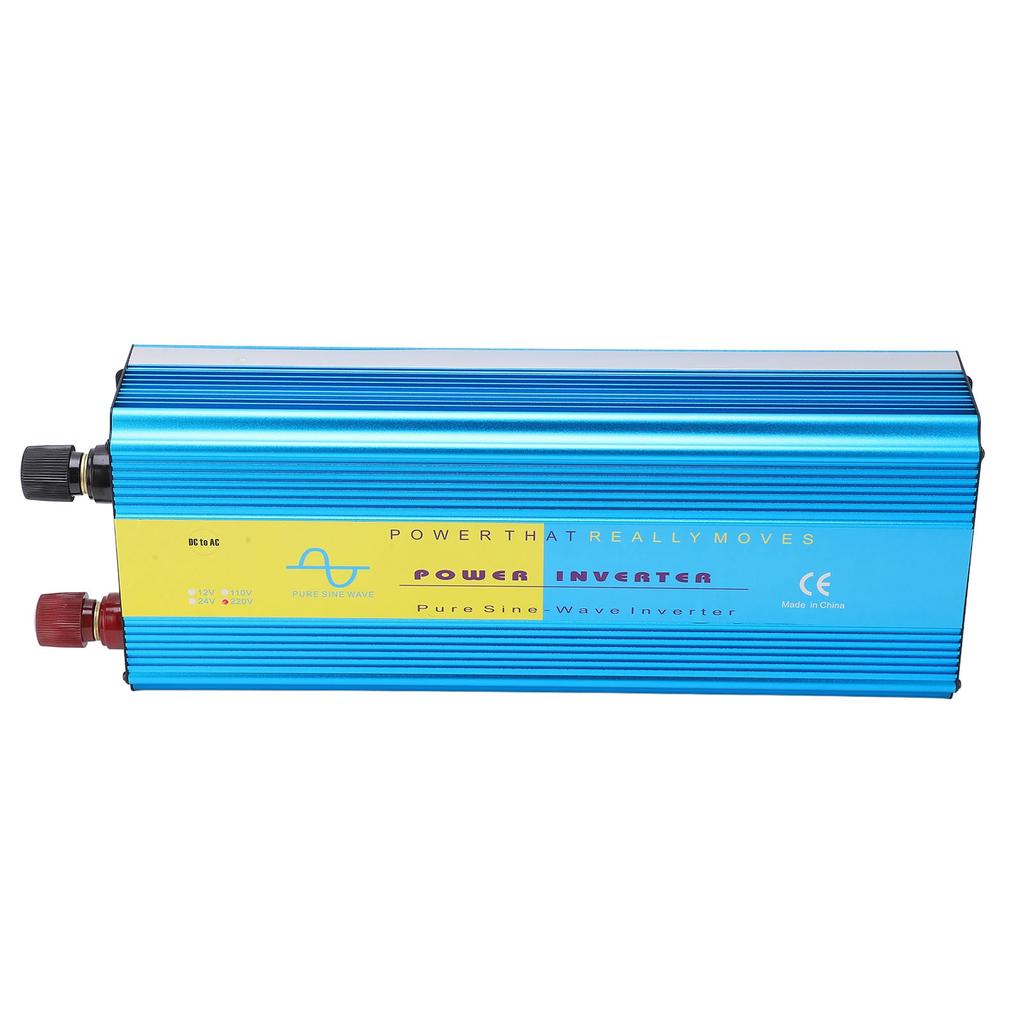

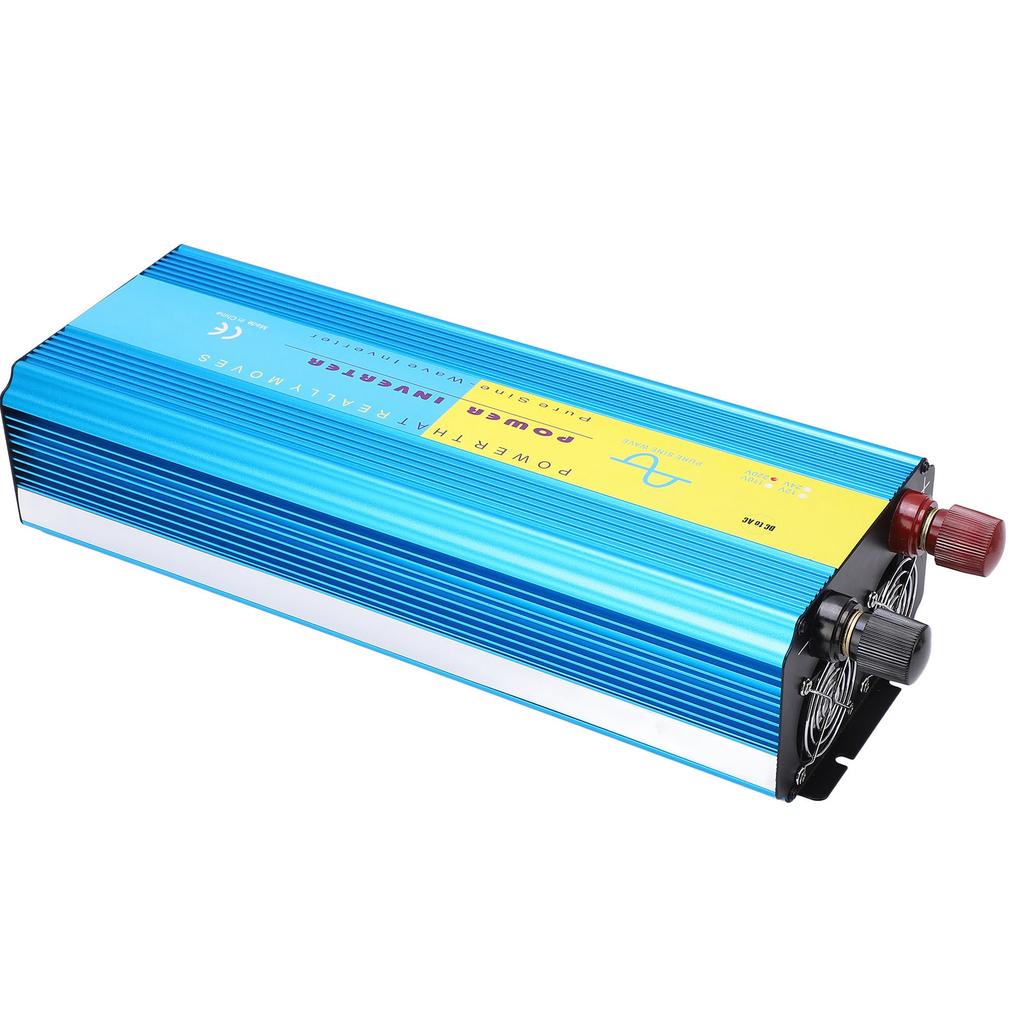

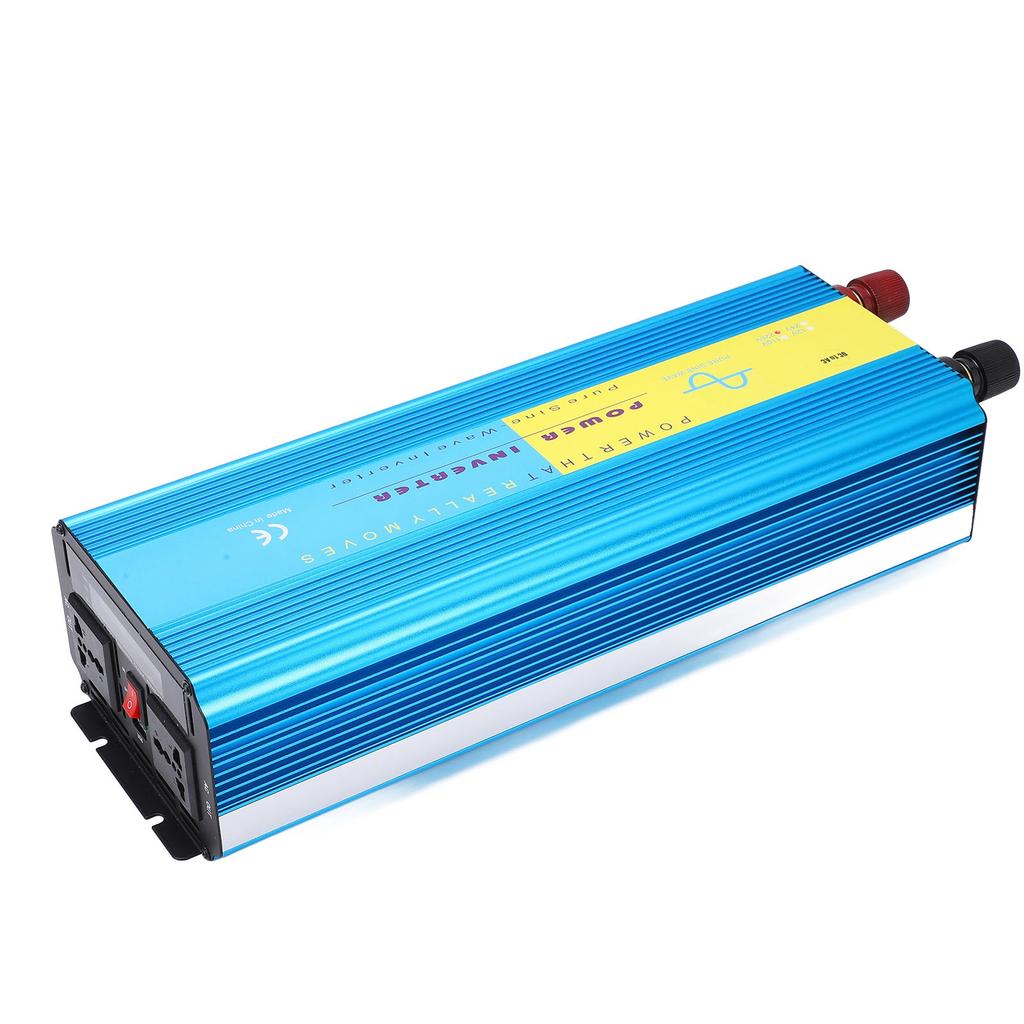

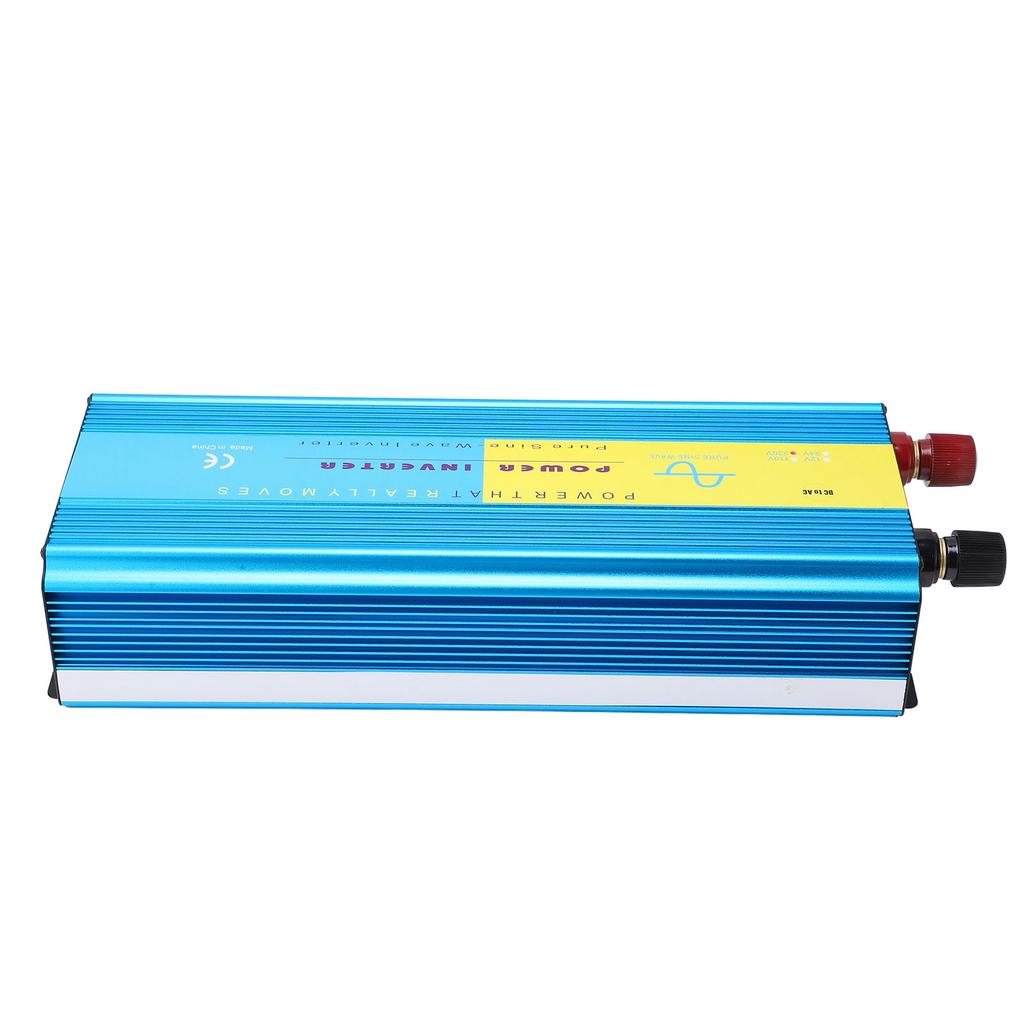

1. Multifunctional pure sine wave inverter, with 2000W continuous power and 4000W peak power, strong practicality, allows you to use household appliances in outdoors.
2. Double universal plug, wide applicability. With LCD display, it can show battery power, input voltage, HZ, output voltage and waveform.
3. With high temperature, low pressure, over voltage, over current, short circuit protection. Aluminum alloy shell, dual fan heat dissipation, good cooling effect.
4. Widely used in air conditioners, home theaters, electric grinding wheels, electric tools, sewing machines, DVD, VCD, computers, TVs, washing machines, range hoods, refrigerators, video recorders, massagers, fans, lighting, etc.
5. Various electrical appliances can be used in the car by connecting household appliances to the output end of the power converter. The electrical appliances that can be used include mobile phones, laptops, digital cameras, cameras, lights, electric shavers, CD players, game consoles, and so on.
Specification:
Item Type: Car Inverter
Material: Rubber + Aluminum Alloy + ABS
Continuous Power: 2000W
Peak Power: 4000W
Input Voltage: DC 12V
Output waveform: Pure Sine WaveSize: 412 x 105 x 140mm 16.2 x 4.1 x 5.5inApplication: Applicable to 12V direct current. Applicable to cars, motorcycles, ships, emergency work, outdoor work, home emergency
How to Use:
1. The DC voltage must be consistent
Each inverter has a DC voltage value, such as 12V, and the battery voltage must be selected to be consistent with the inverter s DC input voltage.
2. The output power of the inverter must be greater than the power used by the electrical appliances, especially for electrical appliances with high power at startup, such as refrigerators and air conditioners, a larger margin should be left.
3. The positive and negative poles must be connected correctly
The DC voltage connected to the inverter is marked with positive and negative poles. Red is positive (+), black is negative ( ), the battery is also marked with positive and negative, red is positive (+), black is negative ( ), must be connected to positive (red to red), negative Connect negative (black connect black). The Diameter of the connecting wire must be thick enough, and the length of the connecting wire must be reduced as much as possible.
4. It should be placed in a ventilated and dry place, beware of rain, and have a distance of more than 20cm from surrounding objects, away from flammable and explosive products, and do not place or cover other objects on the machine. The use environment temperature is not more than 40 celsius . .
5. Charging and inverter cannot be carried out simultaneously. That is, do not insert the charging plug into the electrical circuit of the inverter output during inverter.
6. The interval between two startups is not less than 5 seconds (cut off the input power).
7. Please wipe with a dry cloth or anti static cloth to keep the machine tidy.
8. Before connecting the input and output of the machine, please ground the shell of the machine correctly.
9. In order to avoid accidents, it is strictly forbidden for users to open the case for operation and use.
10. When you suspect that the machine is malfunctioning, please do not continue to operate and use it.
11. When connecting the battery, make sure that there are no other metal objects on your hands to avoid short circuit of the battery and burn the human body.
12. The use environment, based on safety and performance considerations, The installation environment should have the following conditions:
1) Dry: Do not soak in water or rain;
2) Shady And Cool: The temperature is between 0 celsius and 40 celsius ;
3) Ventilation: Keep no foreign matter within 5cm on the shell, and the other end faces are well ventilated.
13. How to install and use
1) Put the inverter switch in the OFF position, and then insert the cigar head into the cigarette lighter socket in the car to ensure that it is inserted in place and has good contact;
2) Make sure that the power of all electrical appliances is below the nominal power of the inverter. Insert the plug of the electrical appliance directly into the socket at one end of the inverter, and make sure that the sum of the power of all connected appliances in the two sockets is in the inverter standard. Within said power;
3) Turn on the inverter switch, the green indicator light is on, indicating that it is working normally.
4) The red indicator light is on, indicating that the inverter shuts down due to overvoltage undervoltage overload overtemperature.
5) In many cases, due to limited output of the car cigarette lighter socket, the converter will alarm or shut down during normal use. At this time, just start the car or reduce the electric power to return to normal.
14. Matters needing attention
1) TVs, monitors, motors, etc. reach the peak power when starting. Although the inverter can withstand the peak power twice the nominal power, the peak power of some electrical appliances that meet the requirements may exceed the peak output power of the converter. , Triggers overload protection, and the current is shut off. This situation may occur when multiple electrical appliances are driven at the same time. At this time, turn off the electrical switch, turn on the inverter switch, and then turn on the electrical switches one by one, and turn on the electrical appliance with the highest peak value first.
2) During use, the battery voltage begins to drop. When the voltage at the DC input end of the inverter drops to 10.4 11V, the alarm buzzes. At this time, the computer or other sensitive electrical appliances should be turned off in time. If the alarm sound is ignored, The inverter will automatically shut off when the voltage reaches 9.7 10.3V, which can prevent the battery from being over discharged. After the power supply protection is turned off, the red indicator light will light up;
3) The vehicle should be started in time and the battery should be charged to prevent power failure, which affects the start of the car and the battery life;
4) Although the converter has an overvoltage protection function, if the input voltage exceeds 16V, the converter may still be damaged;
5) After continuous use, the surface temperature of the shell will rise to 60 degrees C. Pay attention to the unobstructed airflow and keep away objects that are easily affected by high temperature..
Package List:
1 x Pure Sine Wave Inverter2 x Negative Power Cord2 x Positive Power Cord2 x Positive and Negative Knob2 x Fuse2 x Copper Ring Gasket1 x Manual
Note:
1. Use the inverter in strict accordance with the provisions of the user manual;2. The output voltage of the inverter is alternating current, so it should be placed in a safer place to prevent electric shock. When not in use, it is best to cut off its input power;3. Do not place the inverter in direct sunlight or near the outlet of the heater. The working environment temperature of the inverter should not exceed 40 degrees Celsius;4. The inverter will generate heat when it is working, so do not place objects near or on it.5. The inverter is afraid of water, so do not expose it to rain or sprinkle with water.
