Feature:
1. Accurate Measurement With 1mm Aperture: The paint color matching tool features a 1mm measurement aperture that accurately catches fine details and colors. Designed to focusing on specific points or small areas, it offers accuracy, making it particularly suitable for measuring small, opaque items with slick surfaces.
2. User Friendly 3.5 inch Touchscreen: The color difference meter tester is equipped with a 3.5 inch capacitive touchscreen that provides an intuitive human machine interface. With its easy double tap function for color difference comparison, users can quickly and conveniently navigate the system, ensuring an easy operating experience.
3. Advanced Laboratory Color Deviance Alerts: The color difference comparison interface includes laboratory color channel indicators that offer deviance alerts. This feature simplifies the color mixing process, making it easier for users to achieve the desired shade while ensuring accurate results.
4. Flexible Probe Design: The detachable design of the probe allows for accurate alignment when measuring small items. Users can even invert the probe to measure small workpieces directly above the measurement hole, ensuring that the main unit s readings remain unaffected. This design enhances versatility and convenience during measurements.
5. Comprehensive Color Matching And Analysis: The digital paint color meter comes with multiple standard electronic color cards, enabling quick and accurate matching of the closest color card number with a matching accuracy of over 90percent . Additionally, it provides a professional spectral reflectance curve for detailed color data analysis, including hue, saturation, and brightness, while also providing QC inspection functionality for automatic compliance checking based on user defined thresholds. The device also connects to a dedicated mobile app for enhanced color sharing and data management, as well as supporting data import or export with accompanying PC software for statistical analysis.
Specification:
Item Type: Portable Color Reader
Material: Aluminum Alloy
Lighting Method: D 8, including specular component(SCI)
Light Source: Full Spectrum LED Light Source
Wavelength Range: 400 700nm
Wavelength Interval: 10nm
Measurement Aperture: Approx. 1mm 0.039in
Measurement Condition: Light Source D65, Observer 10 degrees
Measurement Time: Approx. 1s
Color Spaces: CIE Lab, LCh, Luv, Yxy, CMYK, RGB, Yellowness 98, Whiteness 98, Whiteness Gauz, Whiteness Hunter, Whiteness R457, HSL, HSV, Spectral Reflectance
Color Difference Formulas: ΔExab, ΔExuv, ΔEx94, ΔExcmc(2:1), ΔExcmc(1:1), ΔExcmc(1.4:1), ΔEx00
Repeatability: Standard Deviation △Exab Within 0.03 (Measurement Conditions: Preheating Calibration, Measuring Whiteboard Average Value Every 3s for 30 Times)
Difference Between Tables: △Exab<=0.4 (Mean value of 12 color tiles of BCRA II series)
Size: Main Body: Approx. 132 x 66.6 x 20mm 5.2 x 2.62 x 0.79in (L x W x H)
Probe: Approx. 45.4 x 37.3 x 64.1mm 1.79 x 1.47 x 2.52in (L x W x H)
Weight: 390g 13.76oz
Power Supply: Rechargeable Li Battery 3.7V 4000mAhx1(Included), A single full can be measured continuously 10000 times.
Display: 480 x 320 Dot IPS Color Screen
System Language: Simplified Chinese, English
Data Interface: USB (Type C), Bluetooth
Operating Temperature Range: 0 45 celsius , 0 85percent RH (No Condensation)
Storage Temperature Range: 25 55 celsius , 0 85percent RH (No Condensation).

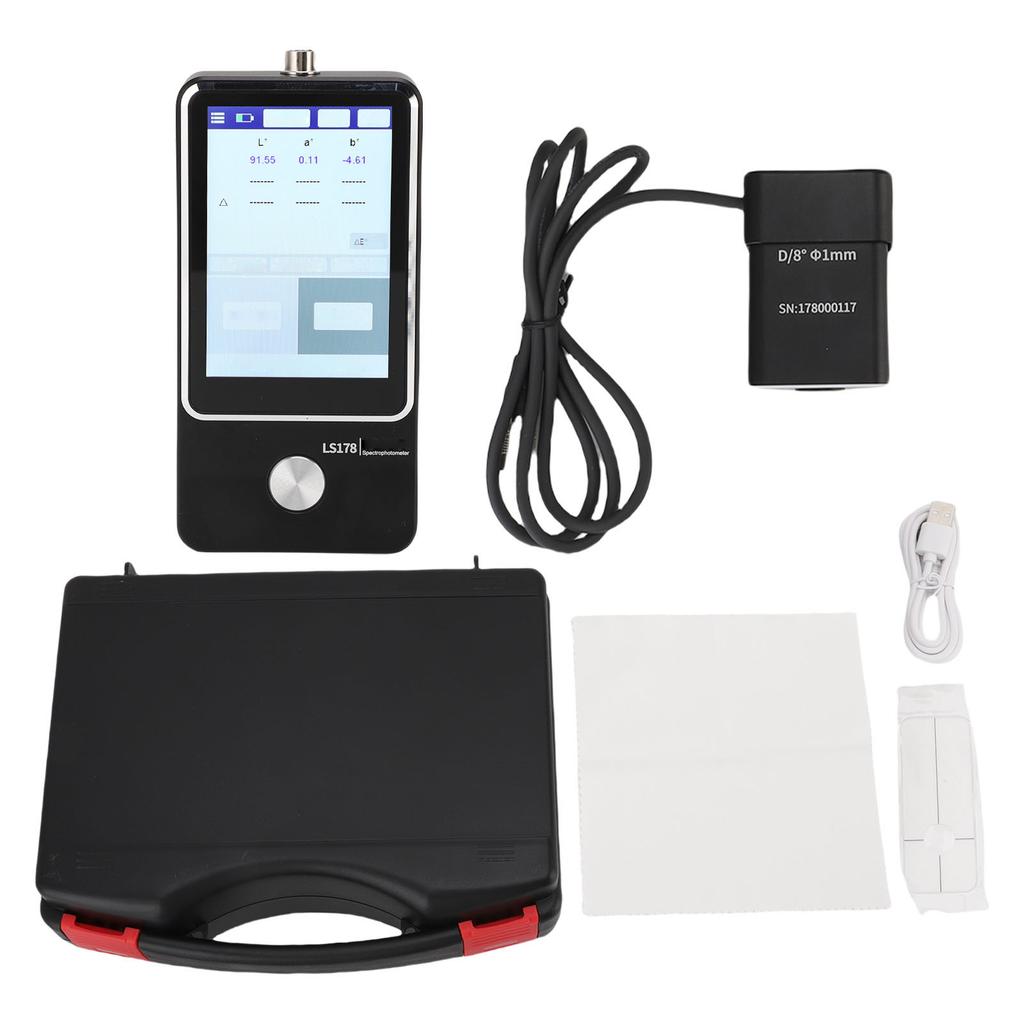

Package List:
1 x Spectrophotometer
1 x Probe
1 x Manual
1 x USB Cable
1 x Cleaning Cloth
1 x Positioning Plate
1 x Storage Box
