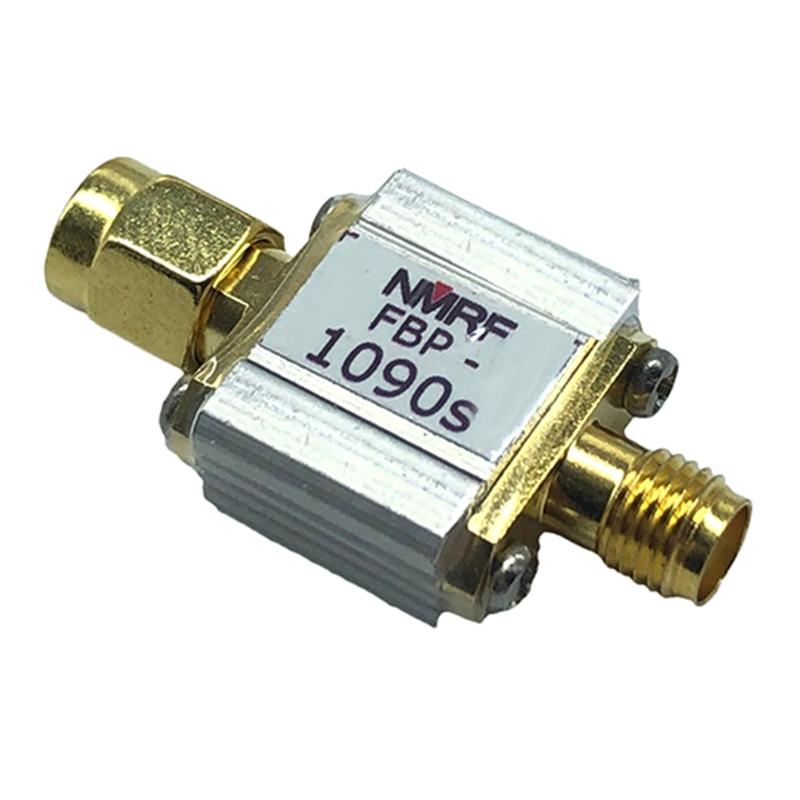

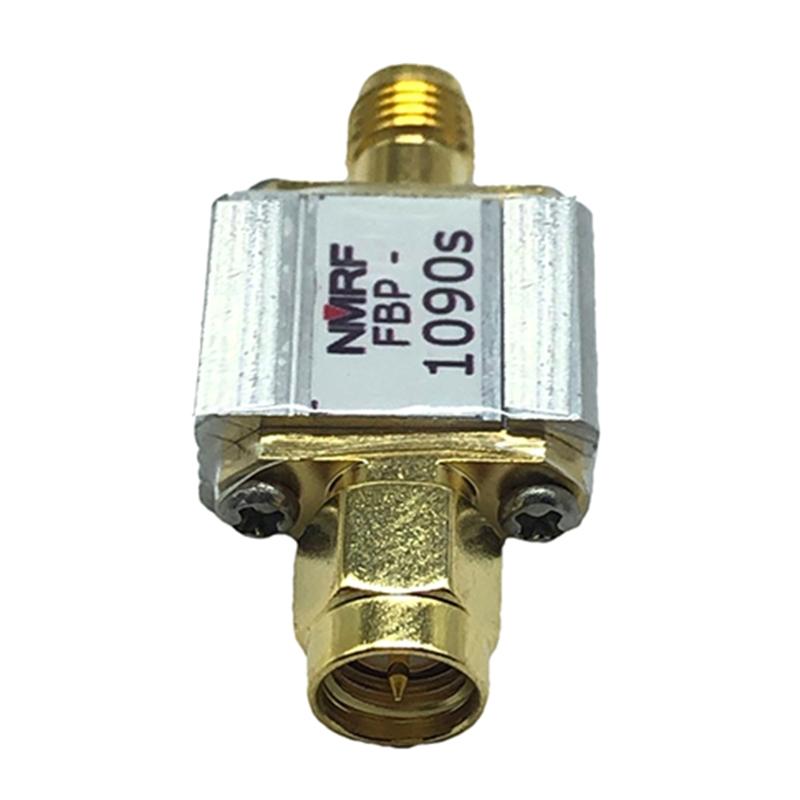

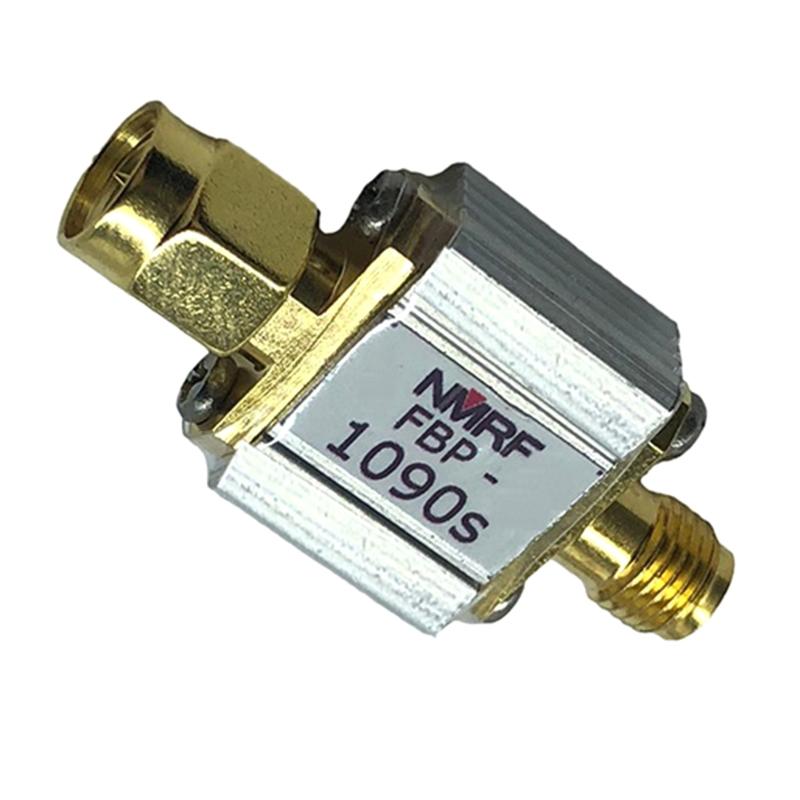

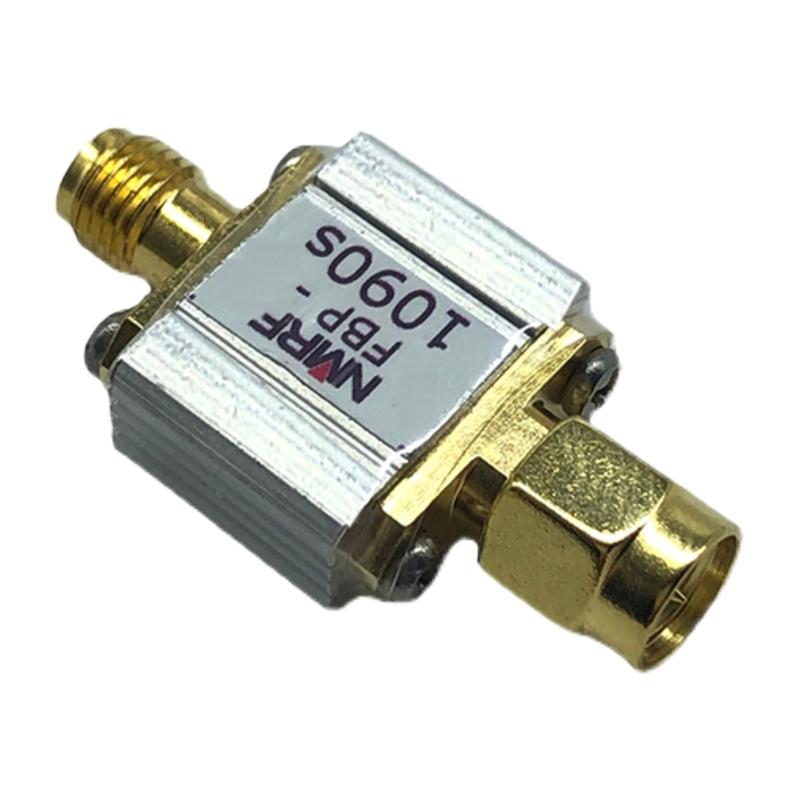

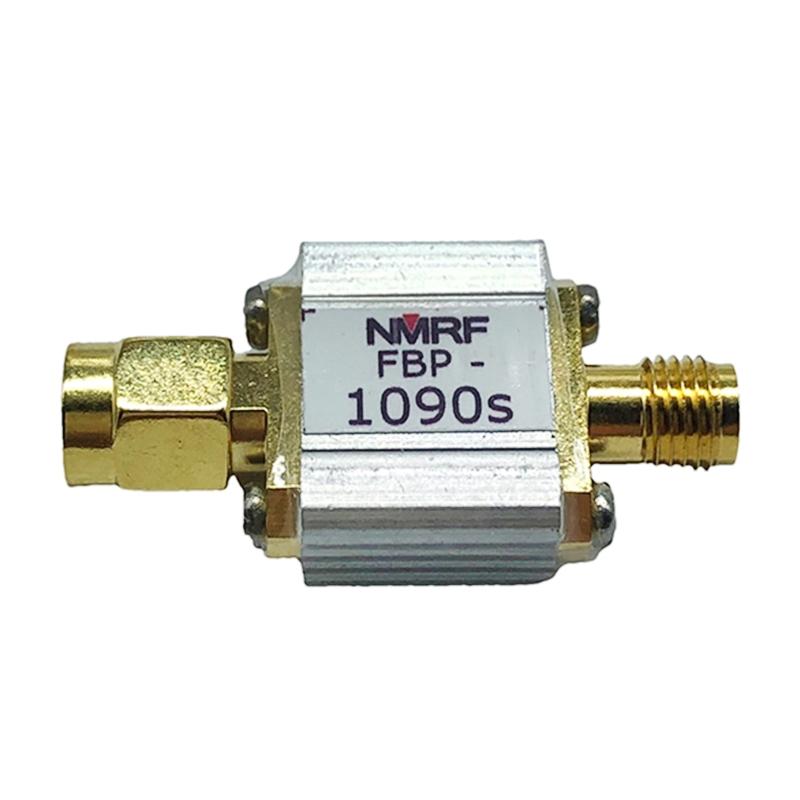

1090MHz Center Frequency Band-Pass Filter Bandpass Filter 3 dB Bandwidth 1090mhz Effectively Filters ADS-B Receiver

Features: The filter can ensure the passband bandwidth of 8MHz, cut-off characteristics steep. The performance optimization of the ADS-B receiver for 1090MHz effectively filters out-of-band signals, reducing noise and increasing dynamic range. Ultra-small device size, easy to use. Pass band (3 dB bandwidth): 25 MHz (see the actual frequency response diagram) Band interpolation loss: 2.7 ~ 3.2 dB

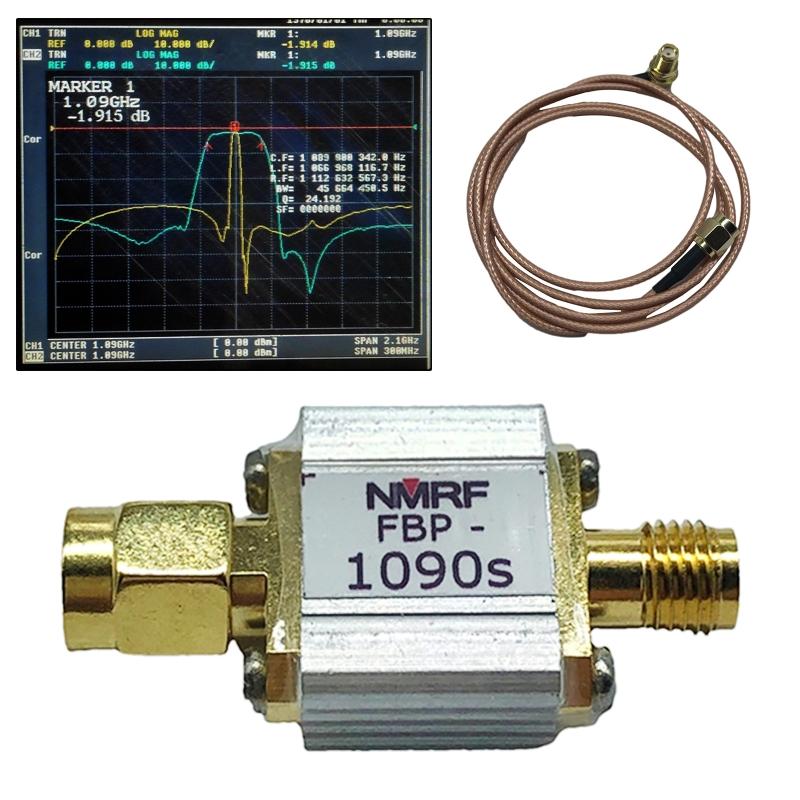

Specifications: Material:Metal Model: FBP-1090s Impedance: 50 Ohms Center Frequency: 1090 MHz Pass Band (3 dB bandwidth): 25 MHz (see the actual frequency response diagram) 30 dB bandwidth: <40 MHz Band interpolation loss: 2.7 ~ 3.2 dB Maximum load power: 100 mW (20 dBm) Interface: SMA-M, SMA-F Frequency response diagram (yellow line width 2100MHz, blue line width 200MHz):

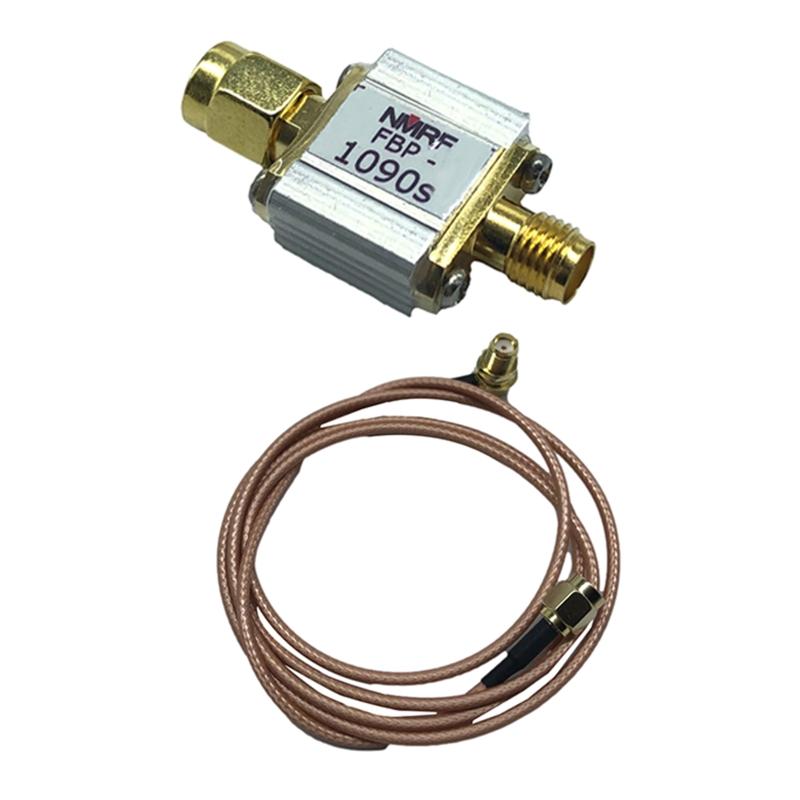

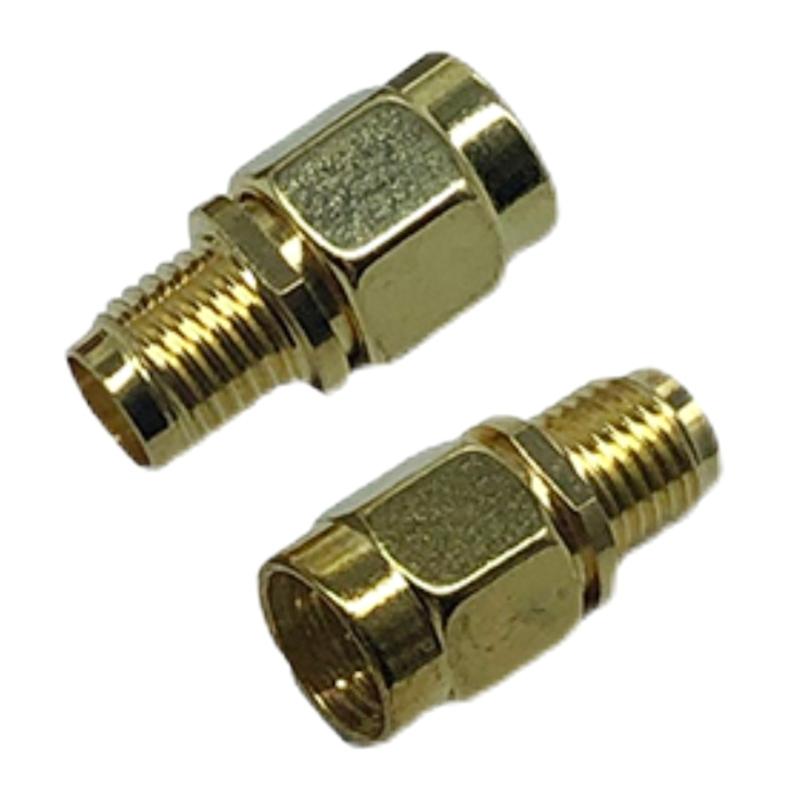

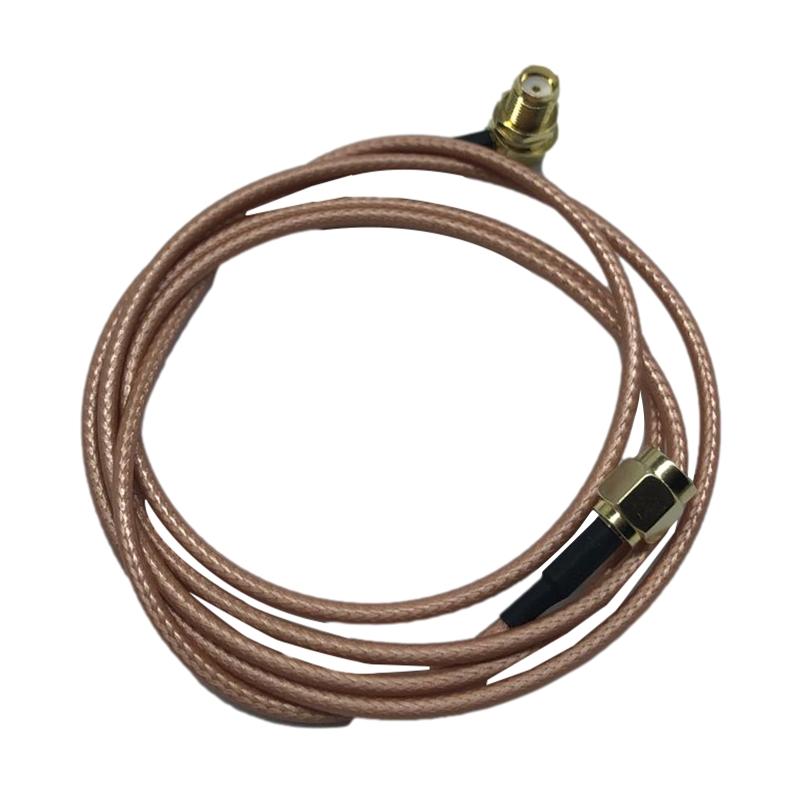

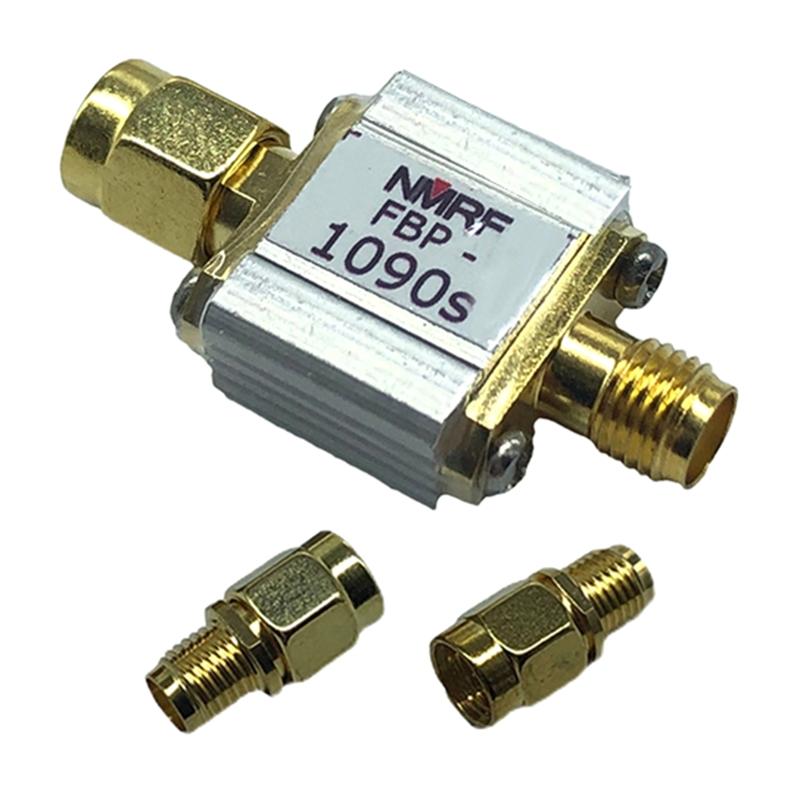

Package Includes: Package A:(A/B/C Optional) 1x FBP-1090s Saw Bandpass Filter Package B: 1x FBP-1090s Saw Bandpass Filter 1x Adapter Package C: 1x FBP-1090s Saw Bandpass Filter 1x Adapter 1x Cable

note: Please allow 1-2cm errors due to manual measurement,pls make sure that you do not mind before you order. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
