Mini Hd Digital Hdtv Antenna With Adapter Dvb-t2 Receiving Antenna For European American Hdtv

Comments: 1. You will need to reset your TV and digital receiver from time to time to ensure you get all available services. Readjustment takes only a few minutes and can be done using the remote control. 2. TV reception depends on the distance from your home, tower and surroundings.

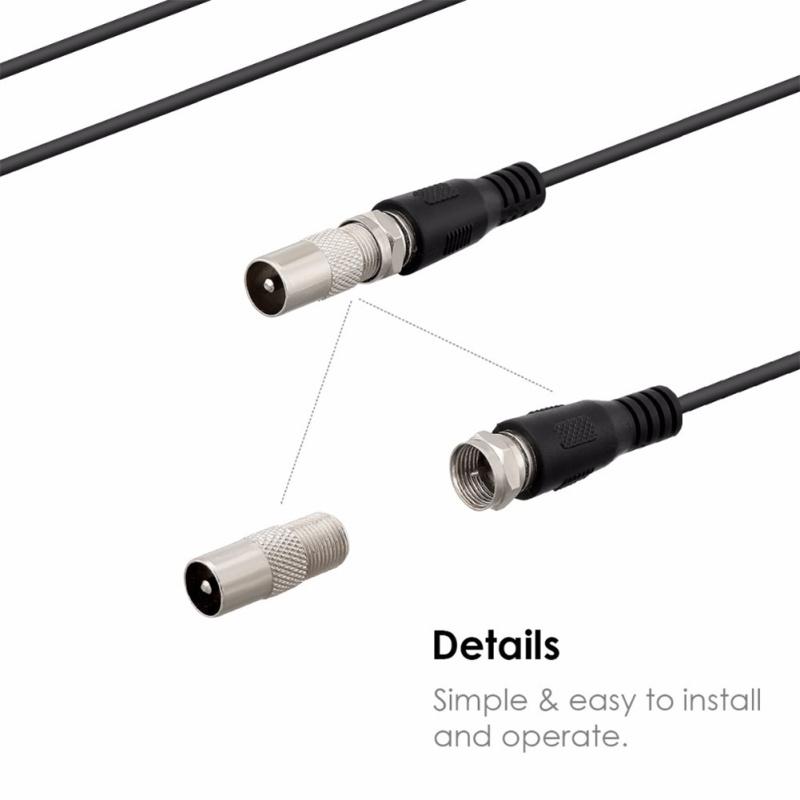

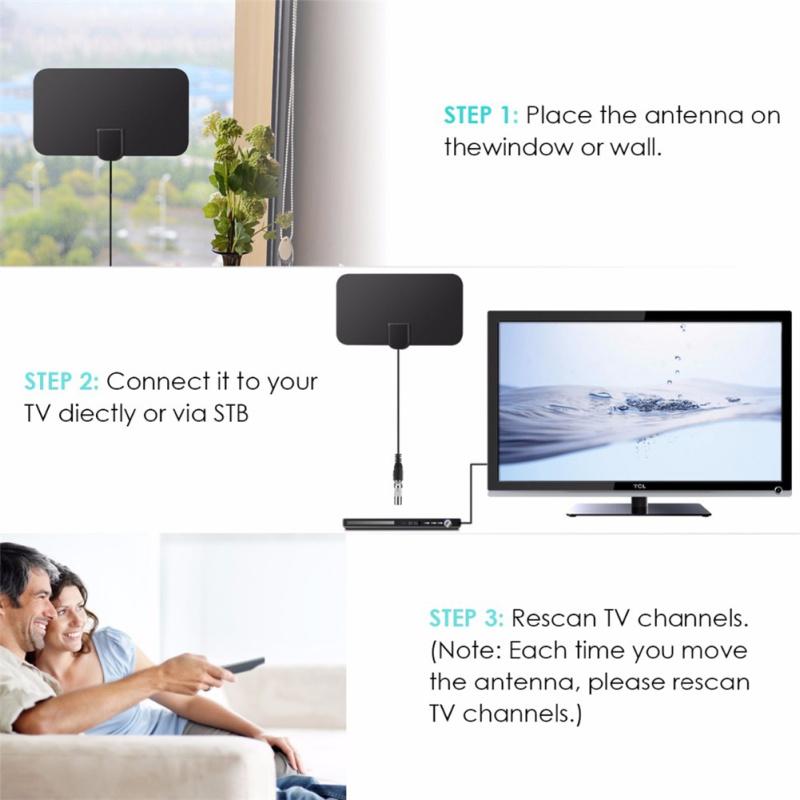

Description: Product Name: TV Antenna Resolution: support 1080p Range of use: 50 miles range Coaxial cable: 3M long Connector Type: F-Headband TV Adapter V.S.W.R.:<=1.5,Max:1 Impedance: 75Ohm Function: Multidirectional ability Channels: bring up all "free" channels Gain: 20 dBi (with amplifier) Operating frequency: 174-240MHz, 470-862MHz Product size (MM): 210x120x0.6 Setup Guide: Step 1 Connect one end of the included coaxial cable (f male) to the ANT/IN connector on the back of the DVB-Tuner TV. Step 2 In the TV/'s settings menu, set the tuner mode to "Antenna" or "Air". See your TV manual for more detailed instructions. Step 3 In the TV/'s settings menu, set the TV to "scan" for channels. This can sometimes be listed as Auto Program, Auto Scan, Channel Scan for Channel Search. See your TV manual for detailed instructions. Step 4 If reception is intermittent, try moving the antenna to another location and rescan the TV until you find the best location. Step 5 Fix the antenna in the best position you found. Packing list: 1 x HD digital antenna receiver 1 x adapter 1 x packing box Note: 1. Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding. 2. Due to the difference of different monitors, the picture may not reflect the actual color of the product. Thanks.
