Delay Power Off: The XY-WJ01 relay module has reliable delay power off function, can accurately control the circuit on and off. Supports 3.0-24V high level and 0.0-0.2V low level triggering.
Display and Buttons: This delay relay module has a clear display screen, simple and intuitive.Button controls are convenient and fast, meeting the needs of various electrical scenarios.
Wide Application: This delay cycle timing circuit switch is suitable for various electrical equipment, providing effective and convenient control methods, with a working voltage of 6-30V.
Output Capacity: Power off trigger design, which can realize on demand timing cycle. The 1 channel relay module can control the electric equipment within DC 30V 10A or AC 220V 5A.
Compact and Practical: The relay module is compact and lightweight, easy to install and use. The shell is made of ABS material, has high strength, impact resistance, and long service life.
Features

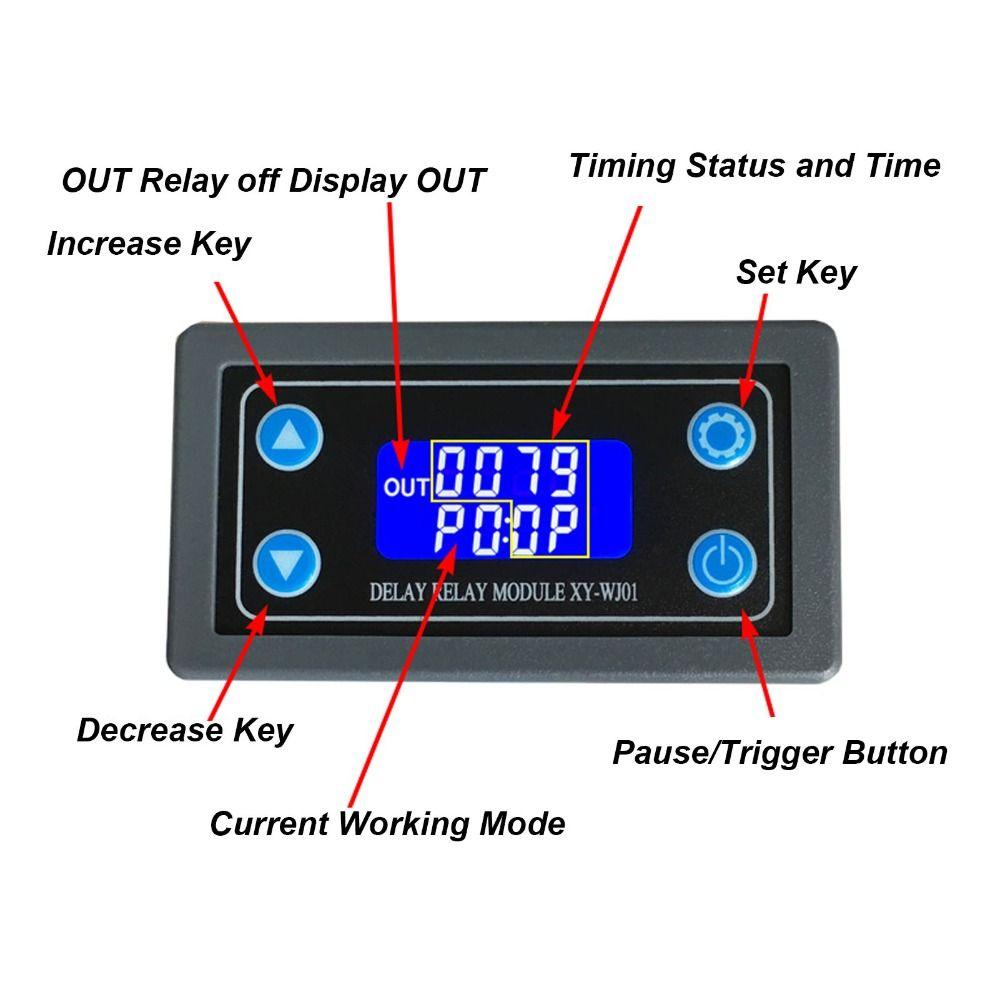

Equipped with a liquid crystal display (LCD), the current mode and parameters are clear at a glance, featuring practicality.
Supports key-triggered control, high/low level trigger and switch signal control, suitable for most application scenarios.
Wide voltage power supply (6-30V) for convenient use.
Supports UART data upload and parameter configuration.
With one-key pause function and reverse polarity protection to avoid burnout in case of reverse connection.
Added sleep mode: when enabled, the LCD backlight will turn off automatically after about 5 minutes of inactivity, and can be woken up by any key press.
Allows separate configuration of OP, CL and LOP parameters, which are stored independently of one another.
All set parameters are saved automatically even when power is cut off.
Specification
Item Type: 1 Channel Relay Module
Material: ABS
Working Voltage: 6-30V Power Supply
Trigger Signal Source: High Level Trigger (3.0V-24V), Low Level Trigger (0.0V-0.2V), Switching Quantity Control (No Source Switch)
Output Capacity: Can control devices within DC 30V 10A or AC 220V 5A
Static Current: 15mA
Working Current: 50mA
Lifespan: More than 100000 Times
Operating Temperature: -40~85℃

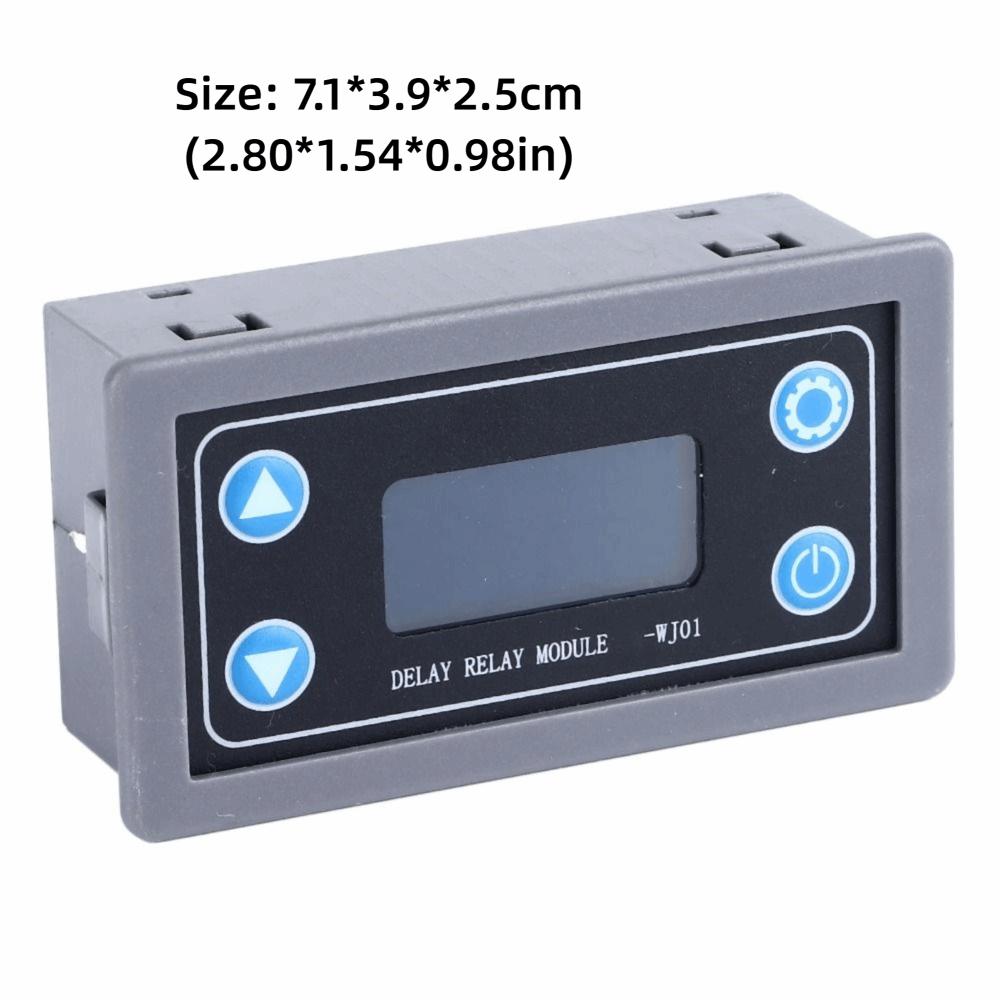

Size: 7.1*3.9*2.5cm(2.80*1.54*0.98in)
Color: As picture shown
Timing Range: 0.01 second ~9999 minute
How to Select the Timing Range
On the OP/CL parameter modification interface, short-press the pause key to select the timing range.
XXXX No decimal point; timing range: 1 second ~ 9999 seconds
XXX.X Decimal point at the tens place; timing range: 0.1 second ~ 999.9 seconds
XX.XX Decimal point at the hundreds place; timing range: 0.01 second ~ 99.99 seconds
X.X.X.X All decimal points on; timing range: 1 minute ~ 9999 minutes
For example, if you want to set OP to 3.2 seconds, move the decimal point to the tens place, and the LCD will display 003.2.
Parameter Description
OP: Relay on-time
CL: Relay off-time
LOP: Number of cycles (1-9999 cycles; "---" indicates infinite cycles)
Parameter Setting
a) Long-press the setting key to enter the setting interface.
b) First set the operating mode, which will flash as a reminder; short-press the increase/decrease keys to set the desired operating mode.
c) Short-press the setting key to confirm the operating mode and enter the system parameter setting interface.
d) On the system parameter setting interface, short-press the setting key to switch between the system parameters to be modified; short-press or long-press the increase/decrease keys to make adjustments.(Note: Short-pressing the setting key is ineffective in P0~P3/P8/P9 modes.)
e) On the OP/CL parameter modification interface, short-press the pause key to switch the timing unit (1s/0.1s/0.01s/1min).
f) After all parameters are set, long-press the setting key to save the parameter settings and exit the setting interface.
Package List
1 x Relay Module
