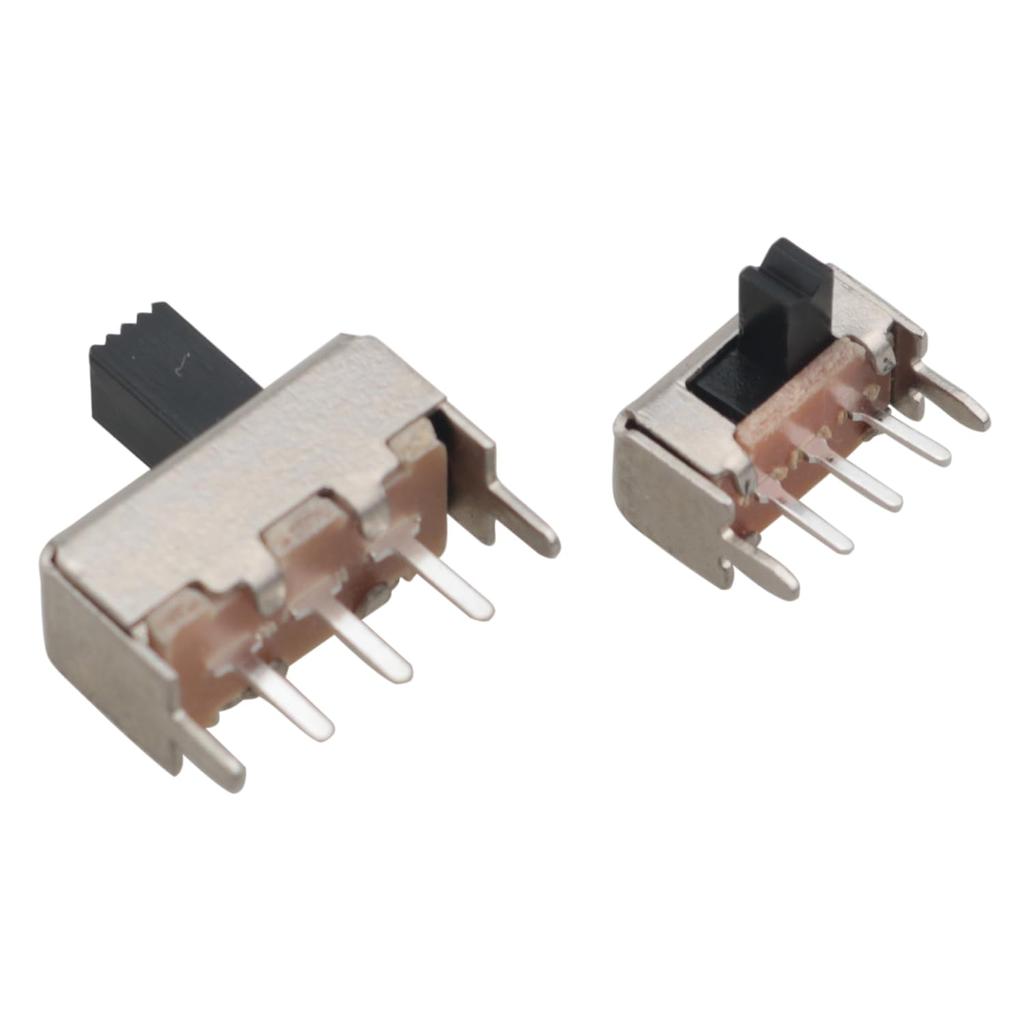

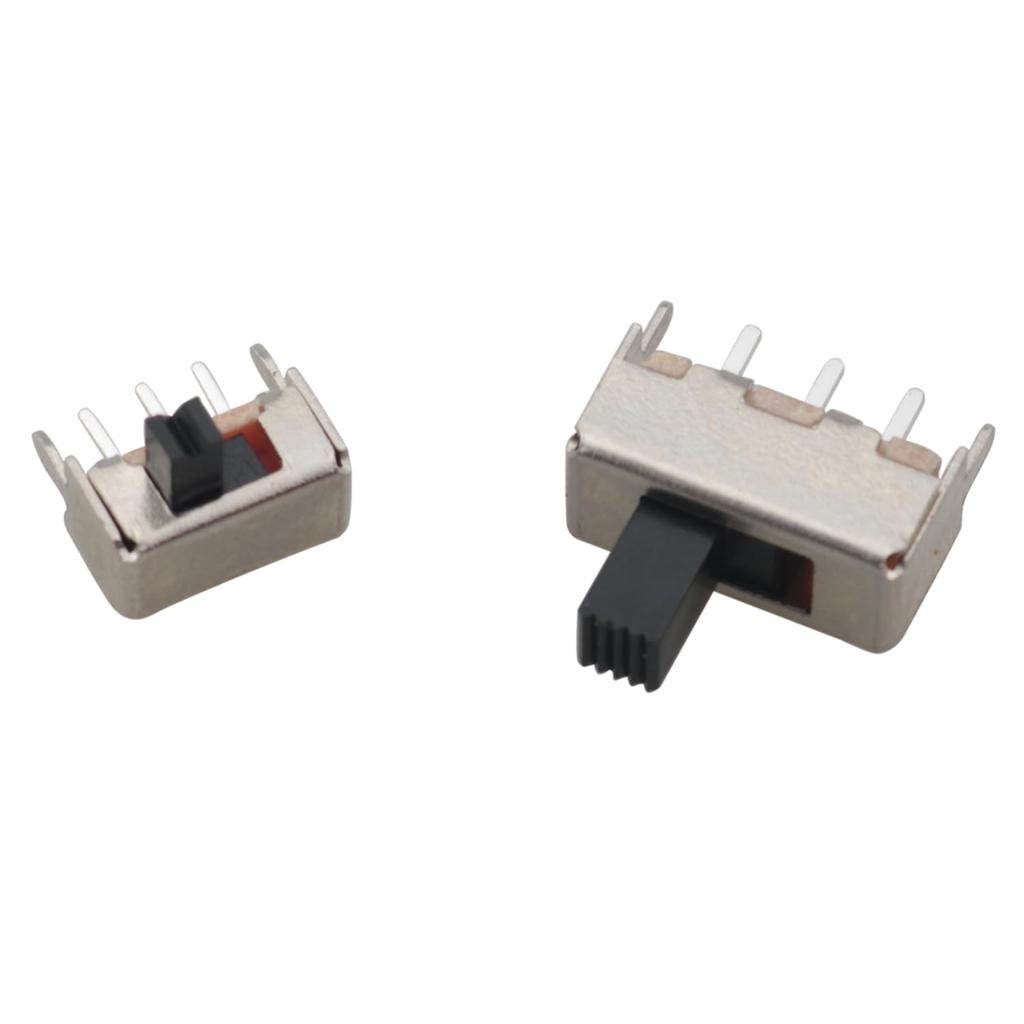

ZCZQC 40PCS SS Vertical Toggle Switch SS12F44 SK12D07 Vertical Slide Switch Miniature Latching Toggle for Low Power Electronic Projects Toys Audio

Material: The vertical slide switch is made of high quality plastic and metal. Excellent workmanship, mechanical life is not less than 10000 times. SK12D07 Specifications: Type: 1 pole 2 throw

Rated voltage: DC 50V

Rated current: 0.5A

Contact resistance: 50m ohms

Maximum insulation resistance: minimum 100m ohms at 500V DC SS12F44 Specifications: Type: 1 pole 2 throw

Rated voltage: DC 50V

Rated current: 0.5A

Contact resistance: 50m ohms

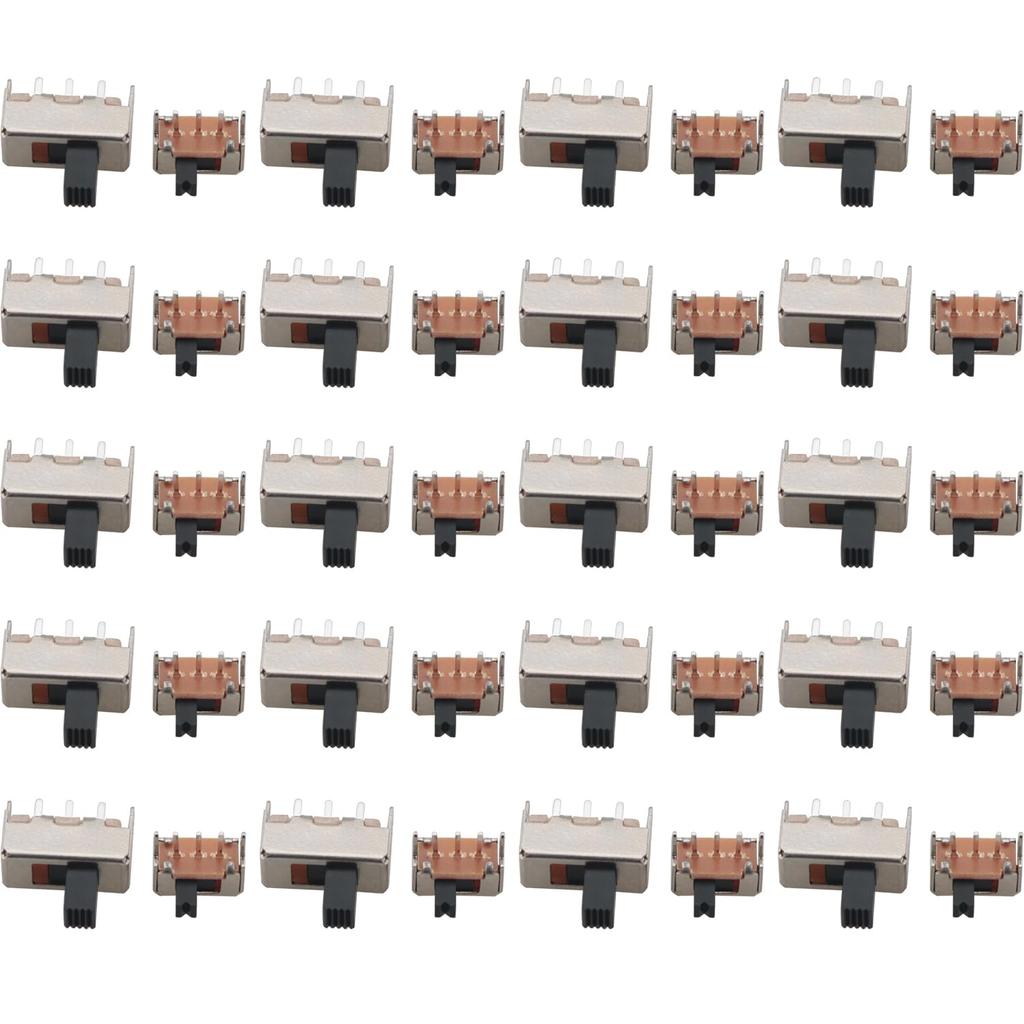

Maximum insulation resistance: minimum 100m ohms at 500V DC Application: Widely used in low-power electronic engineering, electronic toys, audio equipment, electronic Musical Instruments, light dimming control and so on. Package contents: 40 SS vertical toggle switches - 20 each for SS12F44 and SK12D07

Package Dimensions: 4.72 x 2.76 x 0.63 inches; 1.44 ounces Date First Available: February 21, 2025 Manufacturer: ZCZQC ASIN: B0DXZWLG7F
