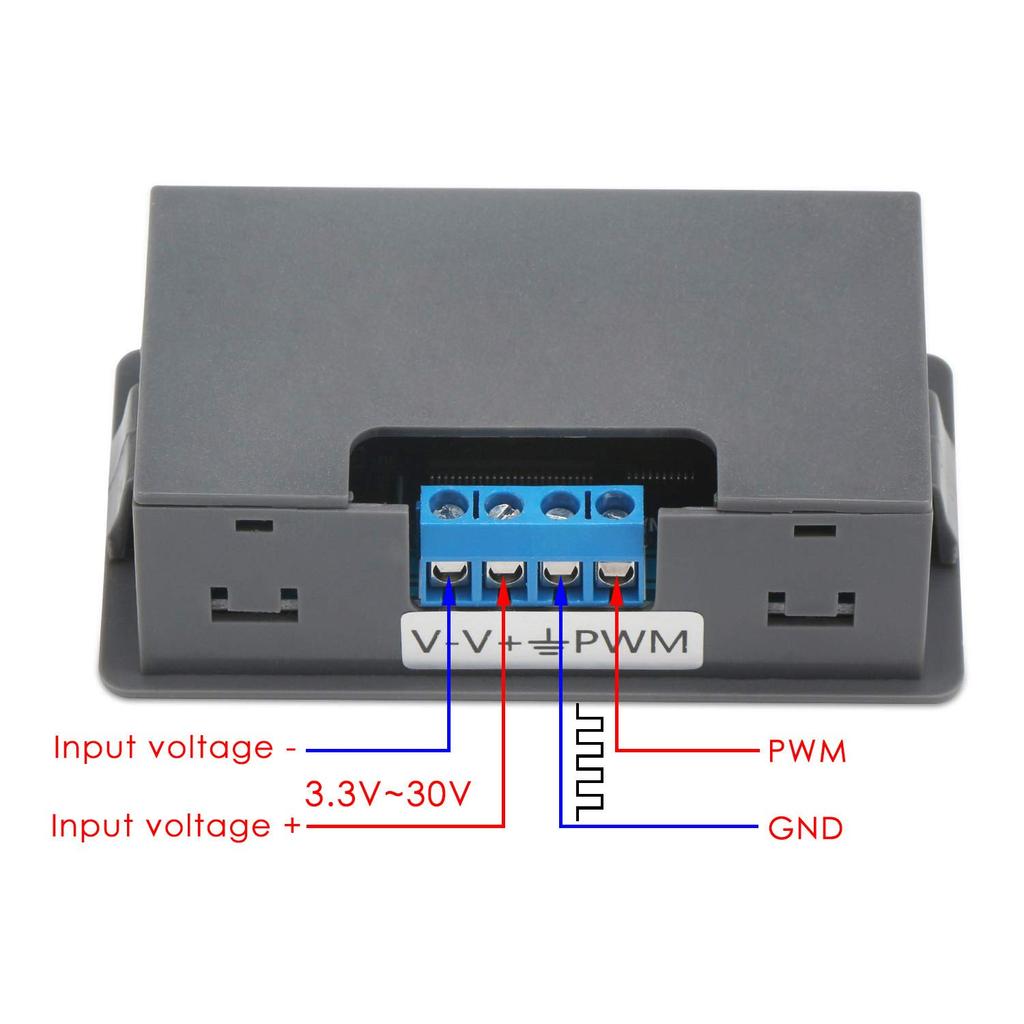

PARAMETER ---- operating voltage range DC 3.3v~30v
frequency range 1Hz-150kHz
output current 5-30mA
duty cycle range 0-100%.
APPLICATION ---- as square wave signal generator for experimental development
as square wave signal generator for motor driver
as adjustable pulse generator for MCU
as pulse generator, control related circuits (PWM dimming, speed regulating).
SERIAL COMMUNICATION ---- support serial communication, TTL level.
DATA AUTO STORAGE ---- all parameters will be saved automatically after setting and therefore won't lose when power off.

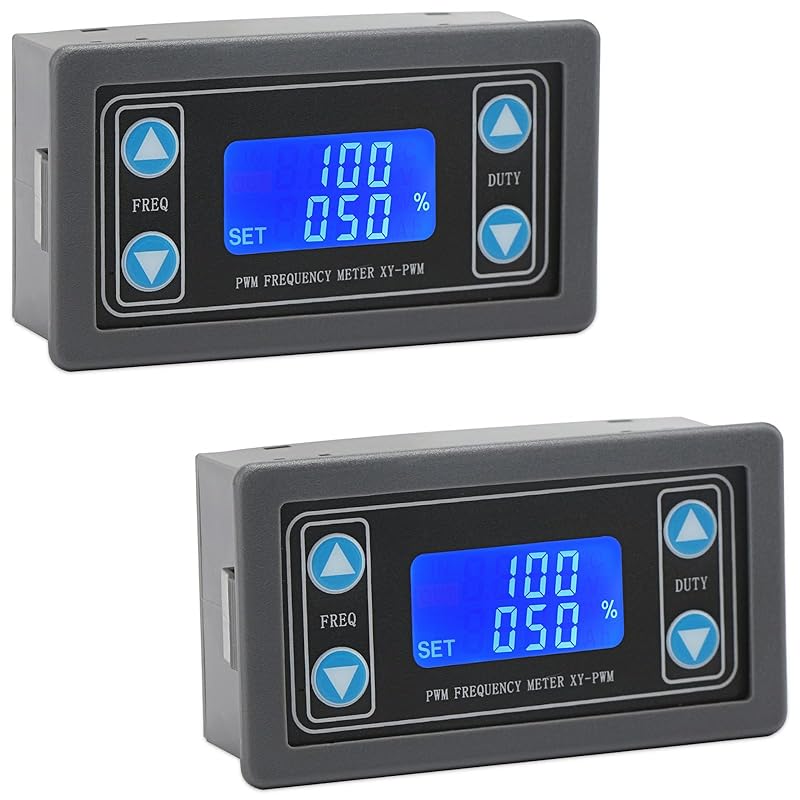

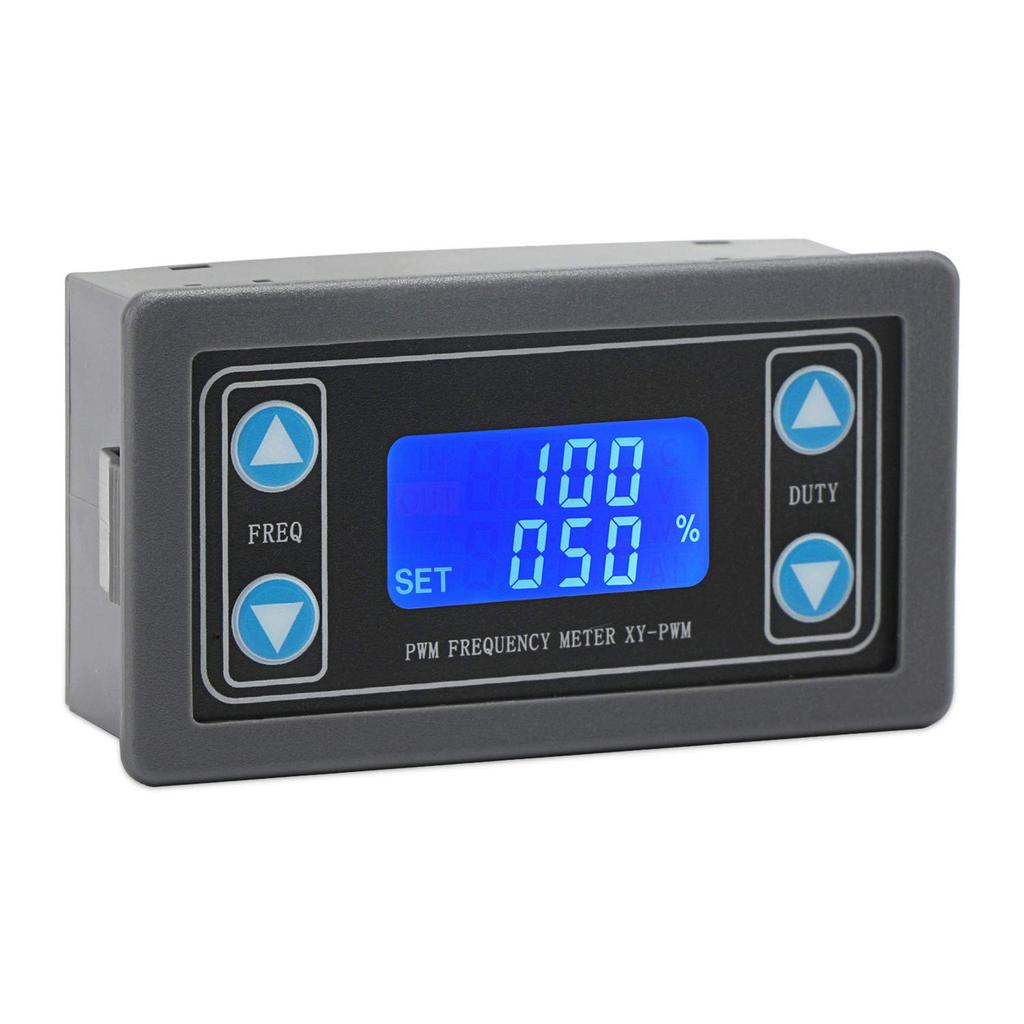

OTHER FEATURES ---- with LCD display to display frequency and duty cycle value

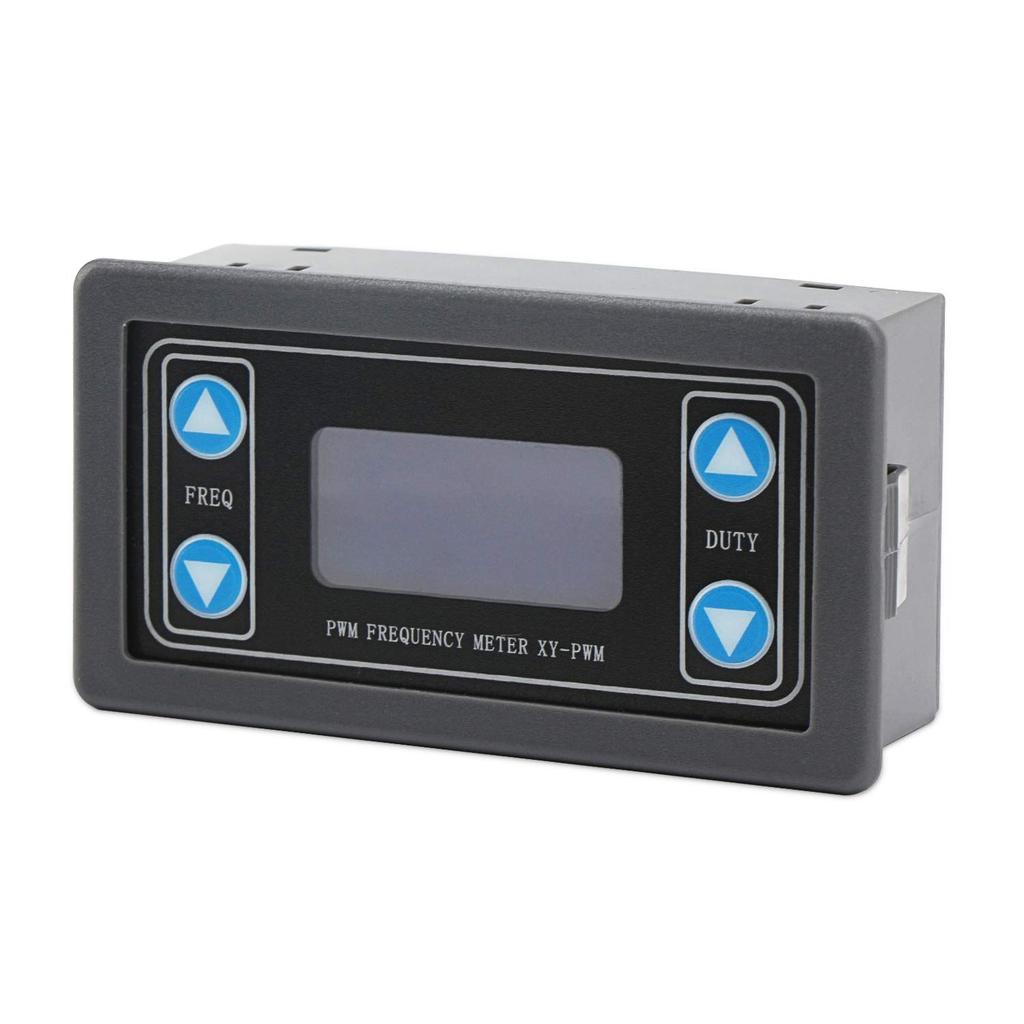

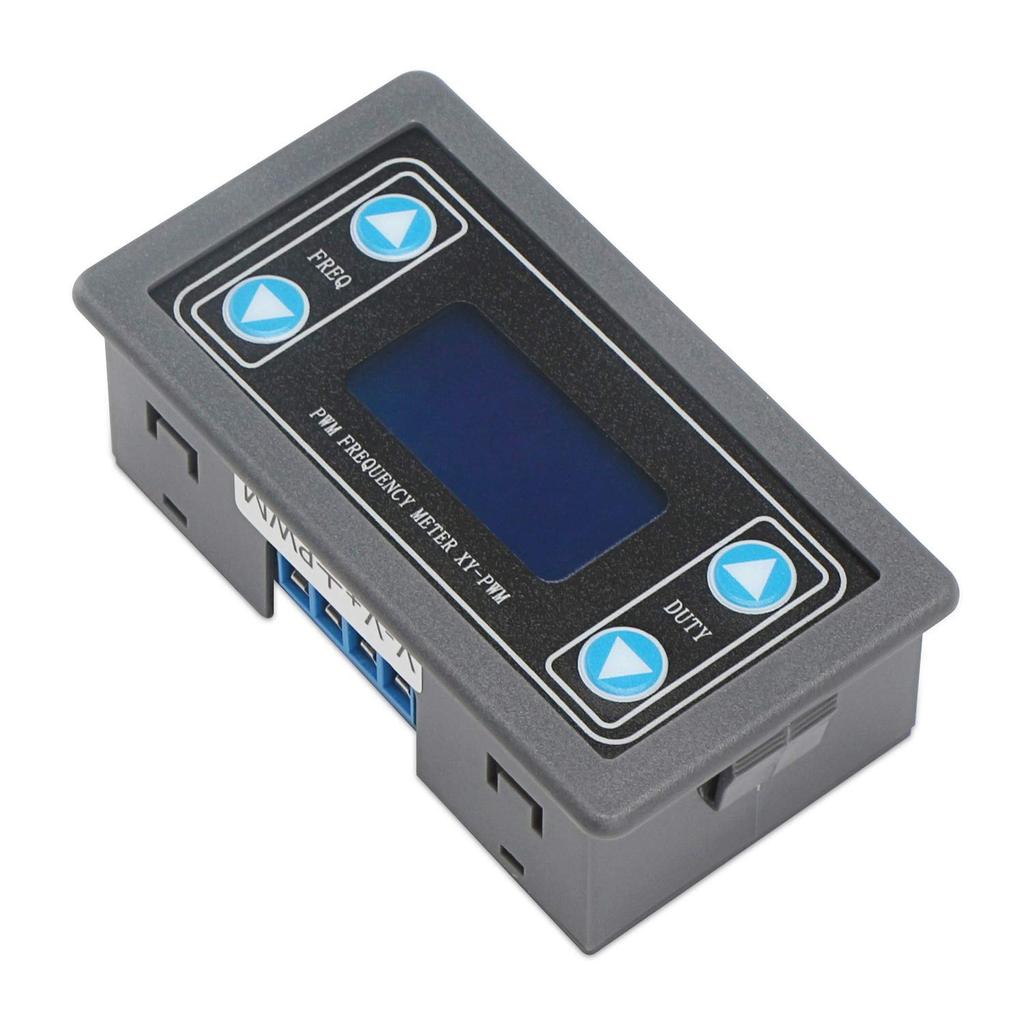

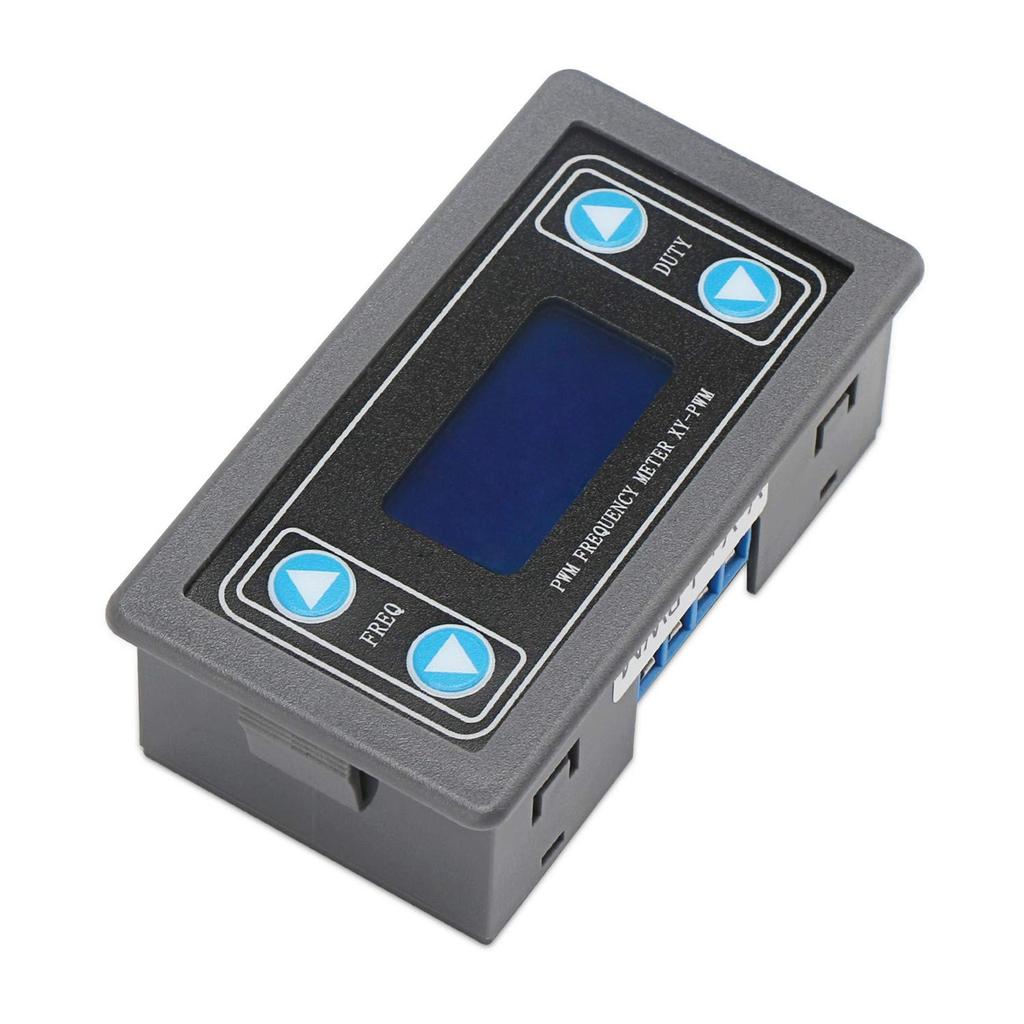

with case

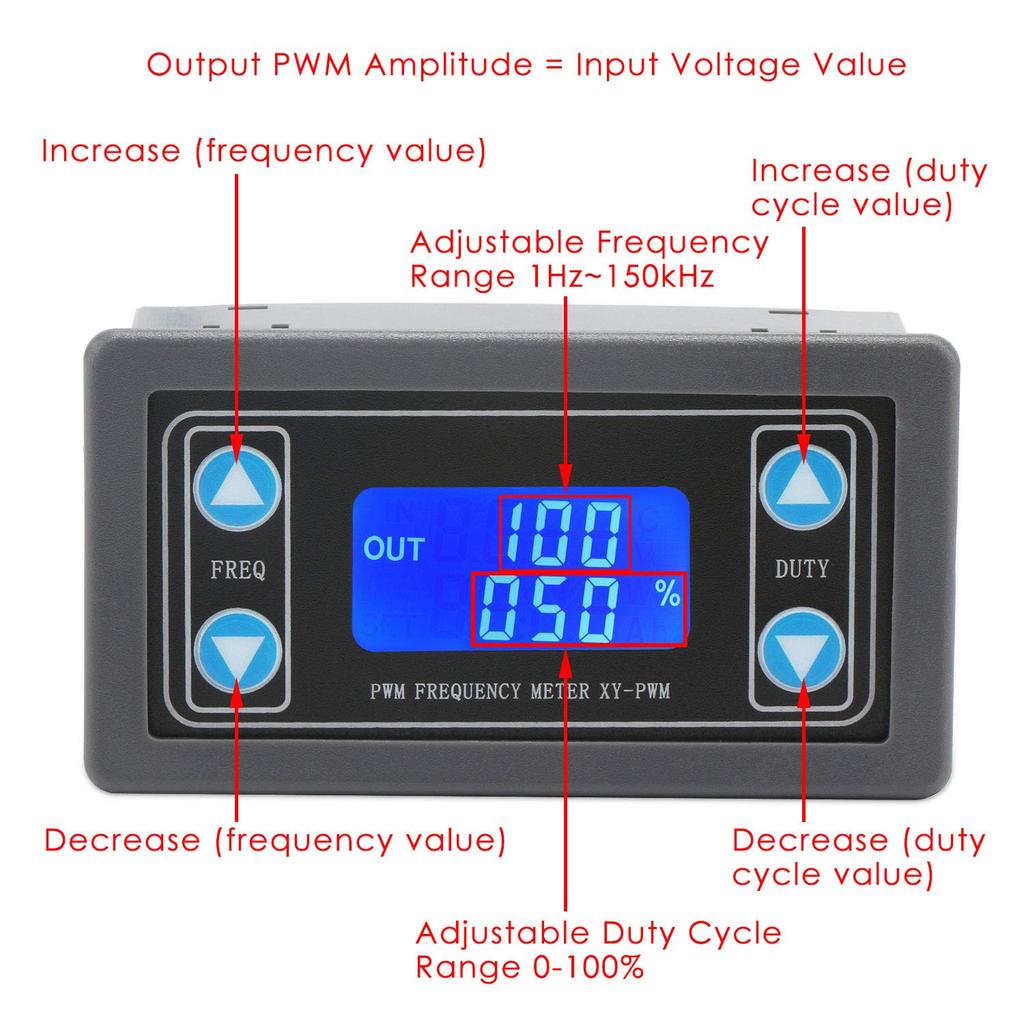

PWM output, can set frequency and duty cycle separately by buttons
frequency value is divided into 4 range and switched automatically, with high precision.
Is Discontinued By Manufacturer: No

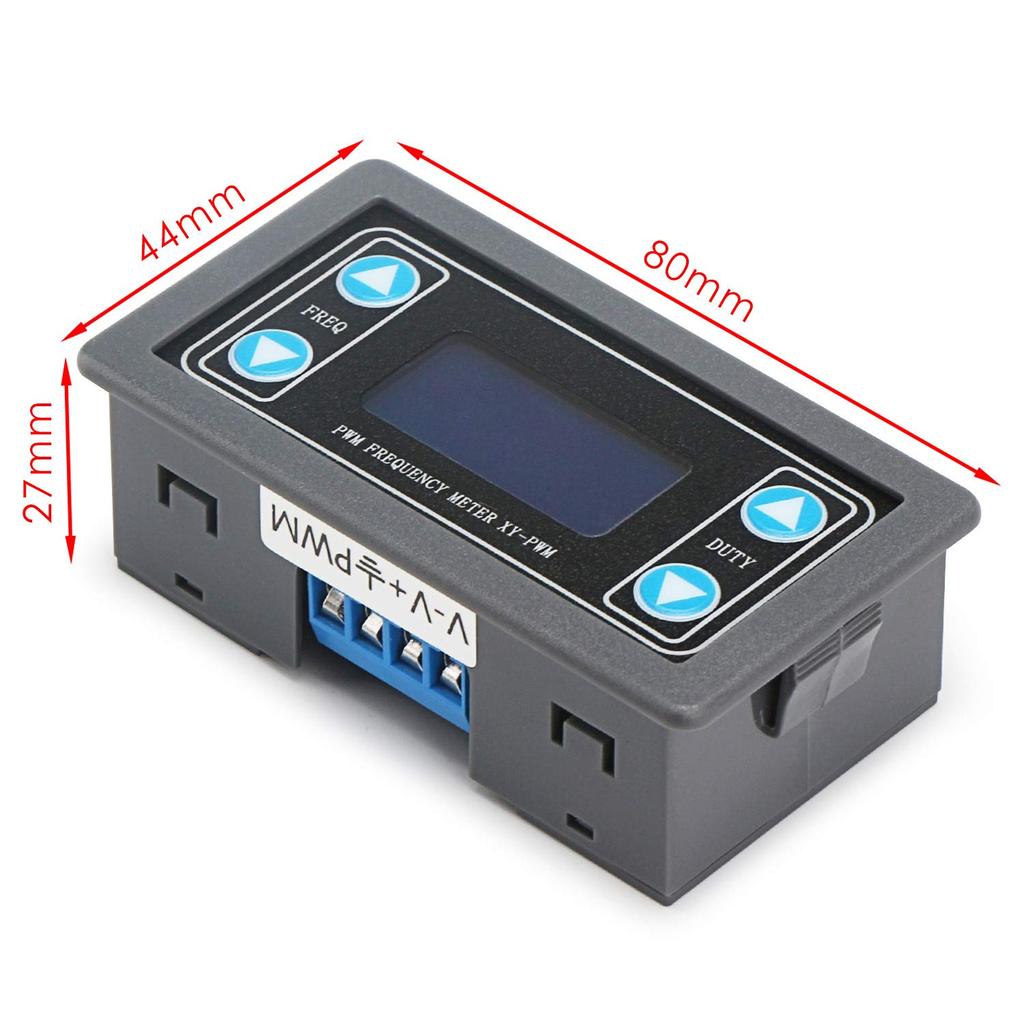

Package Dimensions: 3.86 x 3.43 x 1.46 inches; 1.45 ounces
Item model number: 200382AFA
Date First Available: November 25, 2018
Manufacturer: DROK
ASIN: B07KVYQ78K
