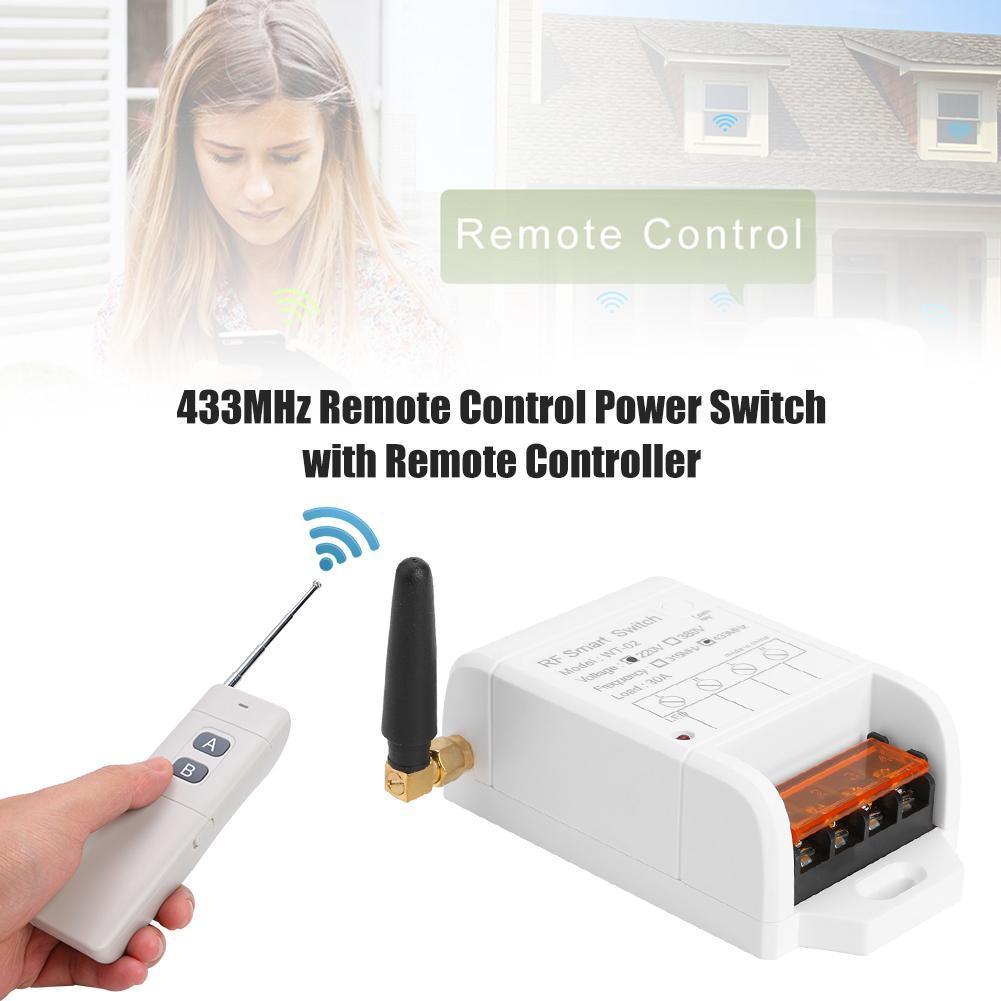

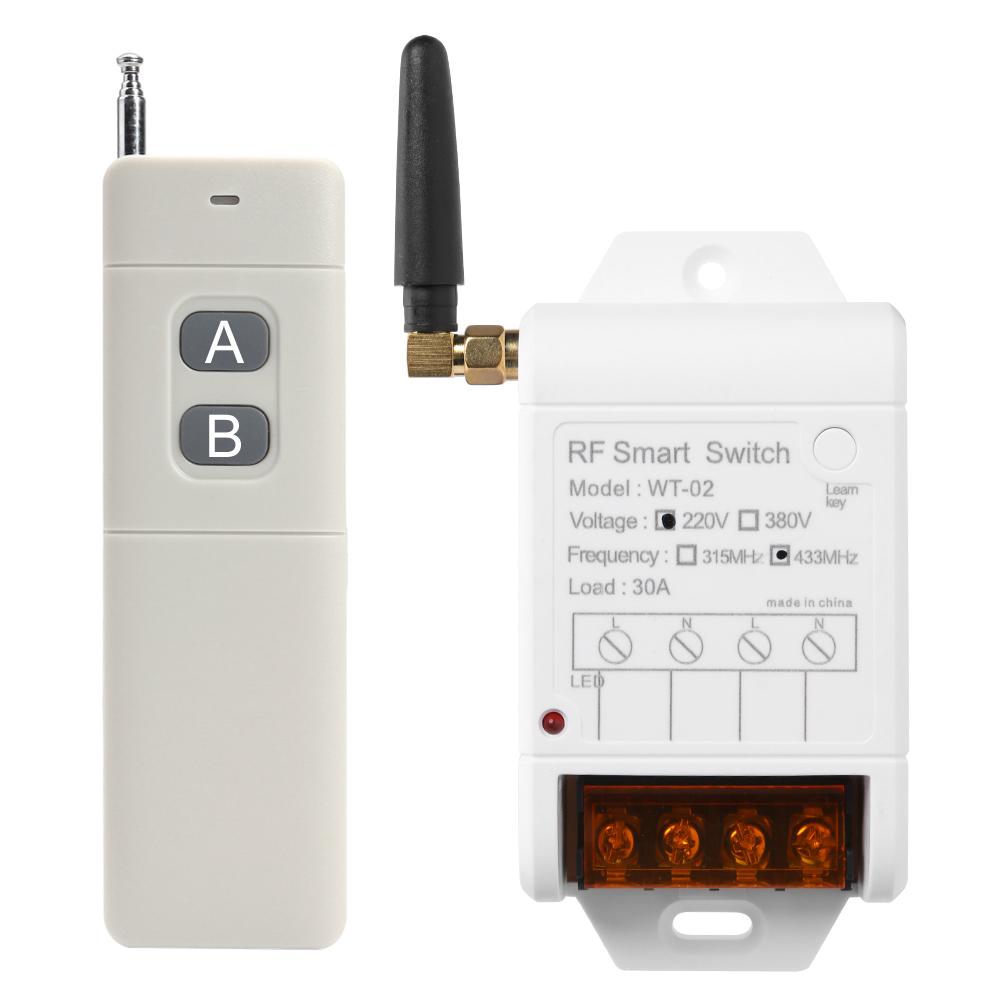

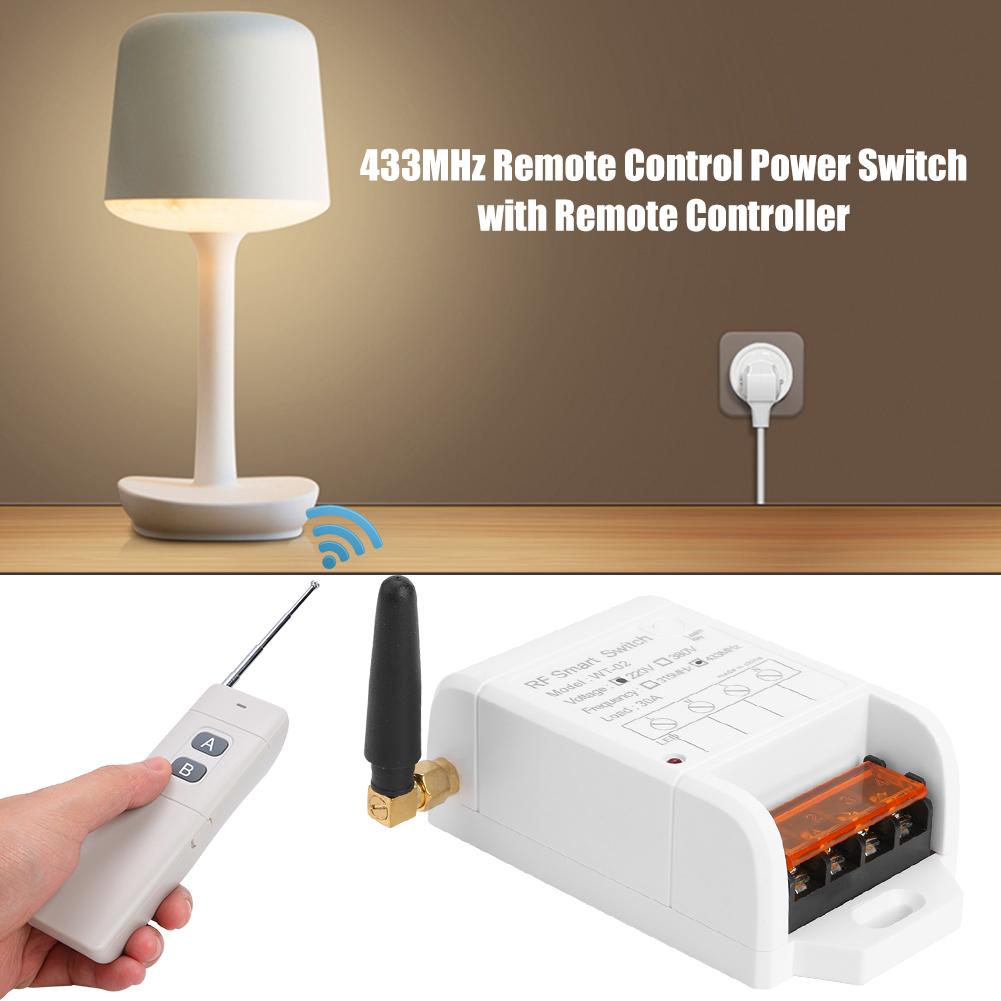

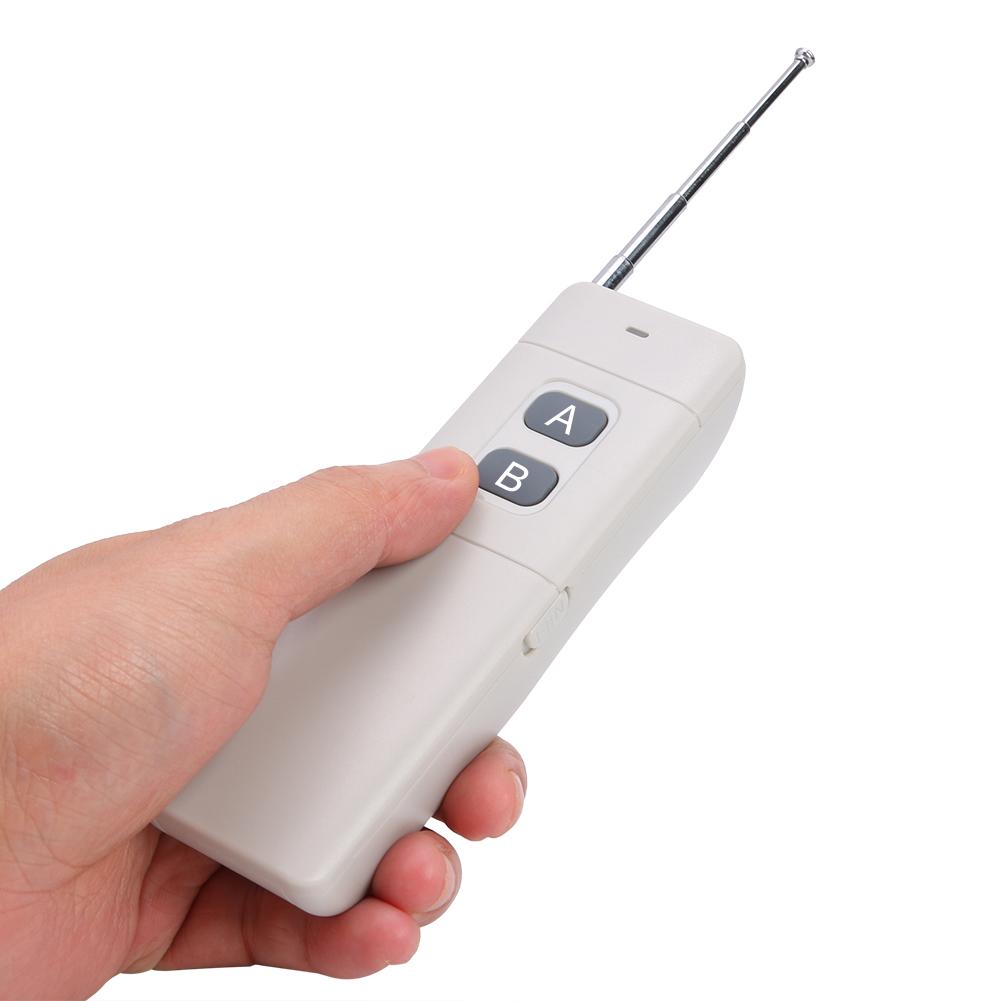

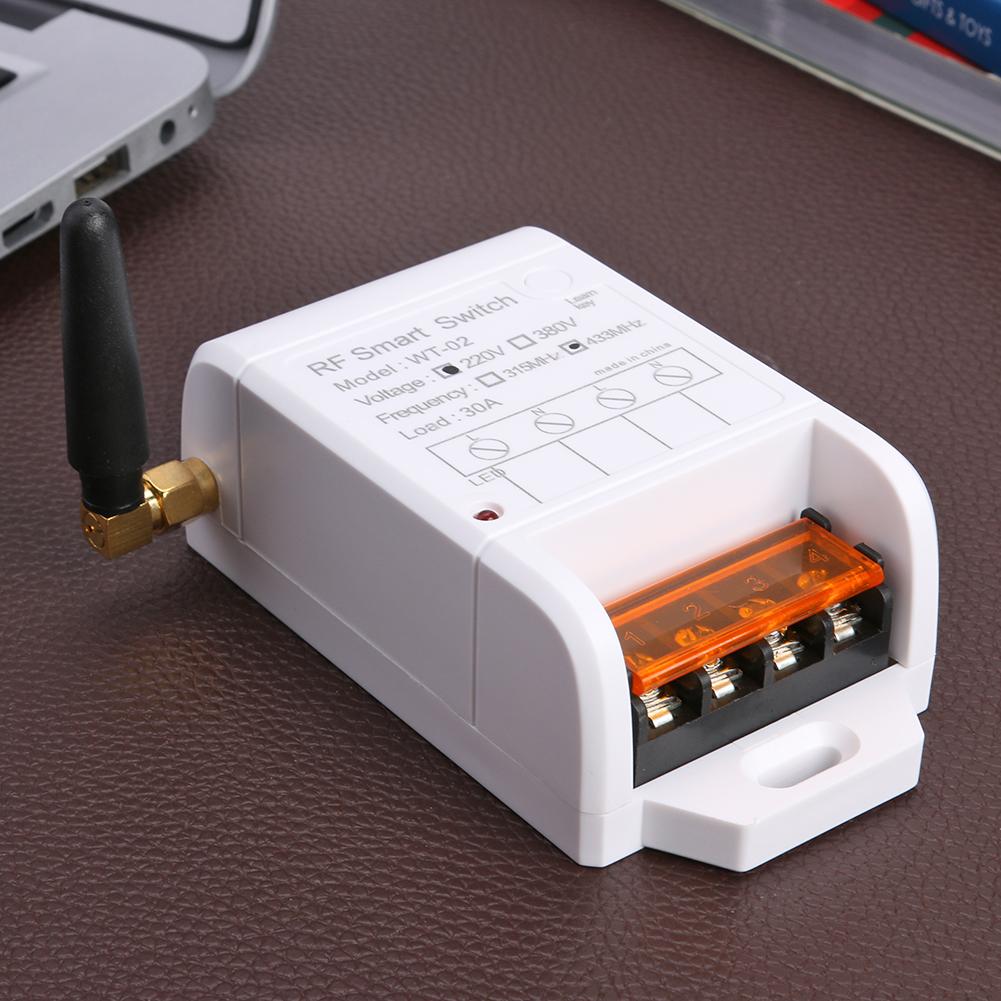

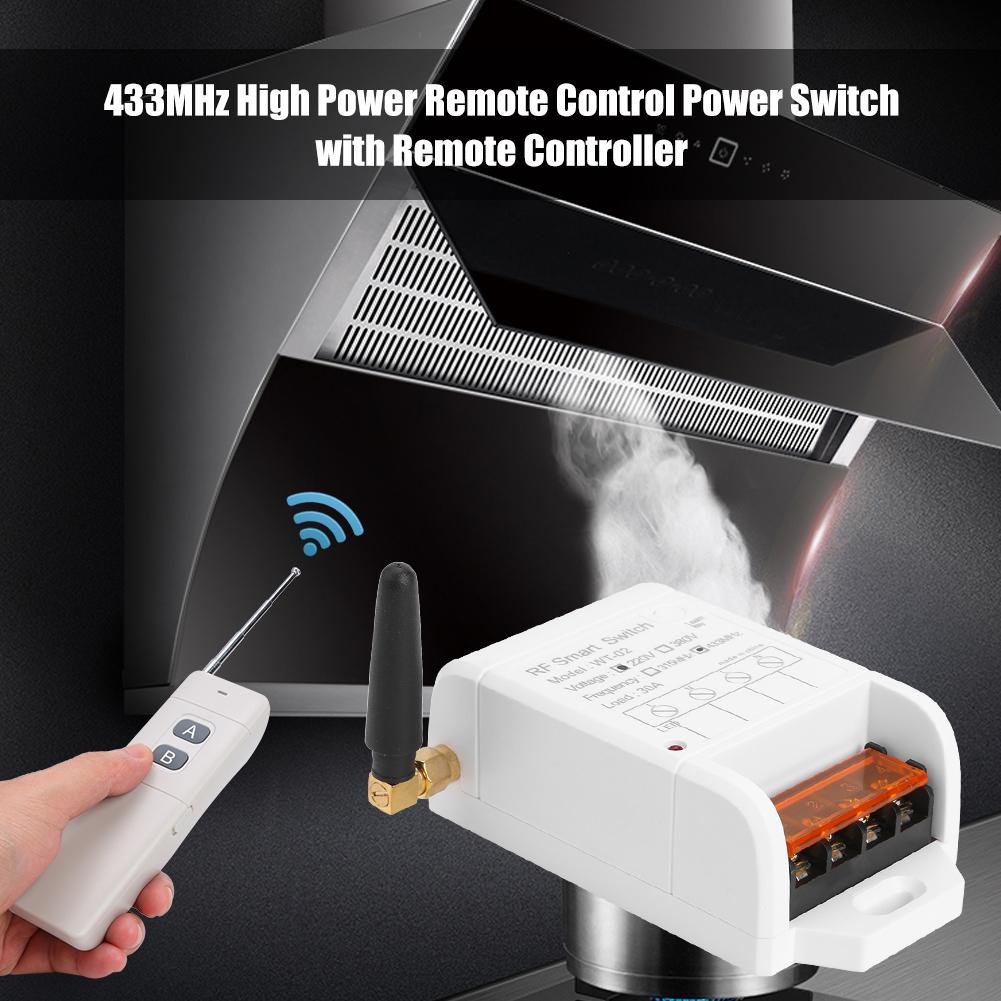

AK-WT02 220V 433MHz 30A Relay Water Pump LED Switch Module Wireless Two Buttons Remote Control
Description:
The product adopts 30A relay, which has higher load power and more stable performance. The receiver adopts ultra-high sensitivity receiving module, and the anti-interference ability is much higher than that of super-regeneration module and ordinary super-heterodyne module on the market, with external antenna, receiving distance. It is greatly strengthened, the output current of the back wide tin is more stable, and the isolation slot works safer and more reliable.
Specifications:
Product model: WT-02
Housing: 110*55*35mm/4.33*2.17*1.38in
Product frequency: 433MHz
Working voltage: AC 220V
Working mode: interlock (default)
Remote control distance: 2000m (in an open environment)
Remote battery: 2 9V batteries (not included)
Application areas: pumps, motors, high-power lamps, etc.
Instructions:
Learning function:
Interlock mode: long press the learning button 4-6 seconds LED lights up to enter the learning state, learn any key on the remote control default button, the rest is the key.
Clear code operation:
Press and hold the control panel to learn the button for about 8 seconds. The indicator light goes from off to on. Press and hold the learning button to indicate that the clear code is successful.
Controller usage precautions:
1. Do not install the receiver inside the iron box, away from motors, contact other electrical appliances that may cause magnetic fields, to avoid interference with remote control signals.
2. When you feel that the distance of the remote control is significantly shortened, please replace the remote control battery in time.
3. When installing the wiring, please disconnect the power supply to ensure its own safety; when the relay is working, the indicator light is accompanied by the indication; pay attention to the learning range value of the remote control oscillation resistance.
4. Try not to operate the buttons on the remote control as often as possible, because the wireless receiver's chip receives a response from the remote control for about one second.
5. The maximum storage capacity of the remote control is 35PCS; the EV1527, PT2262 fixed code and learning code are compatible.
Notes:
Please allow 1-3mm measuring deviation due to manual measurement.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you.
1 X Controller
1 X Remote Control (without Battery)
