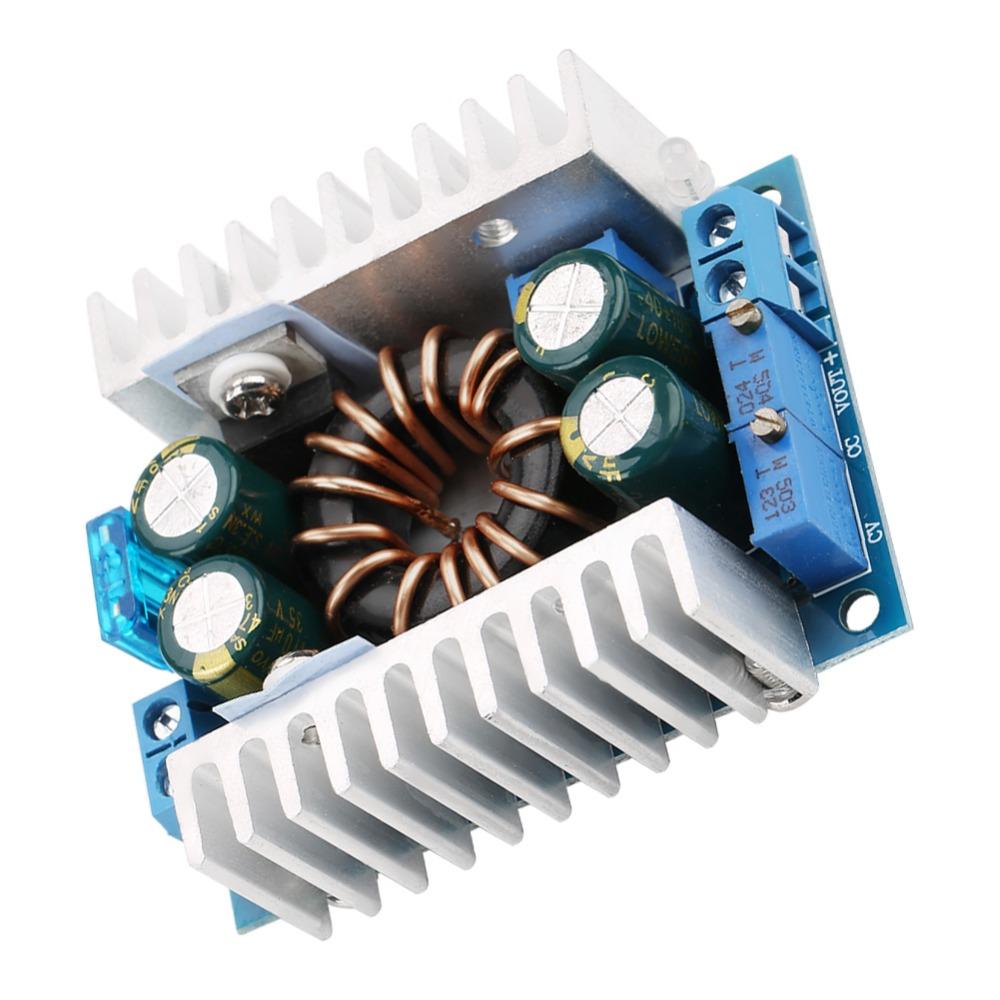

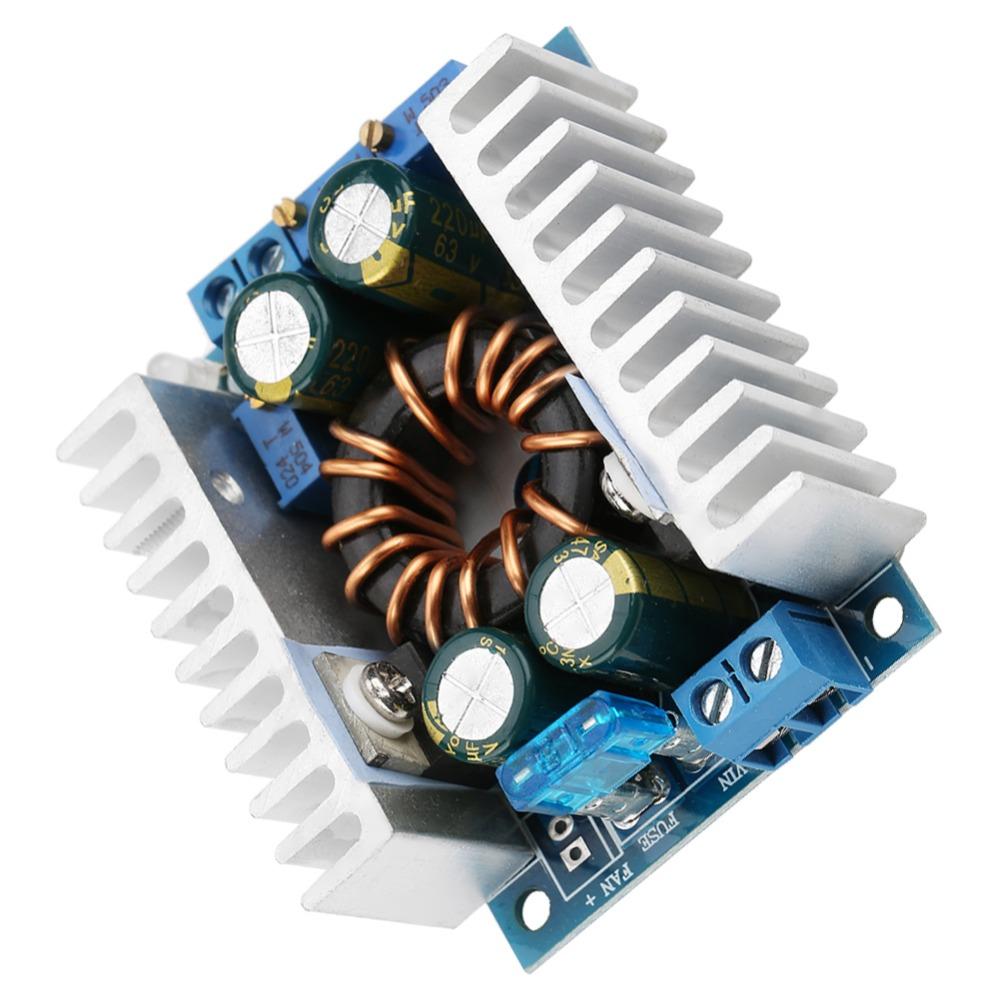

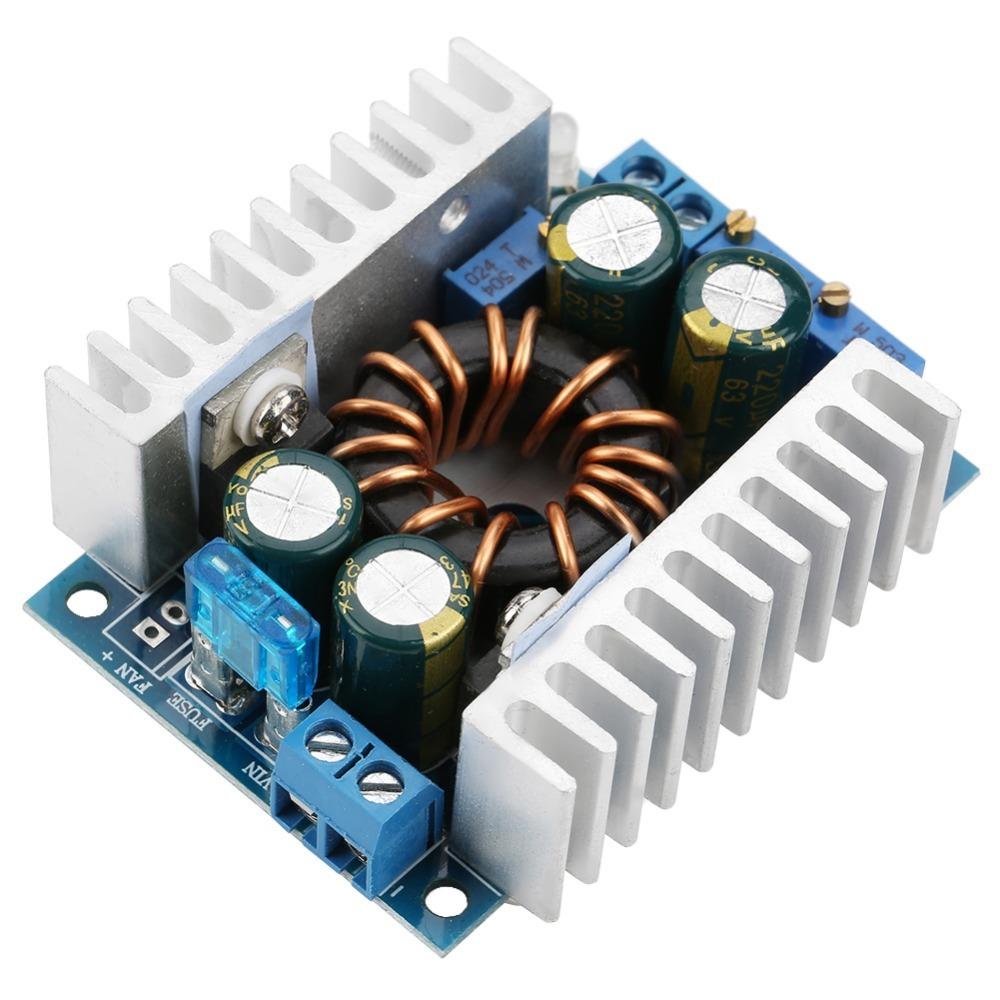

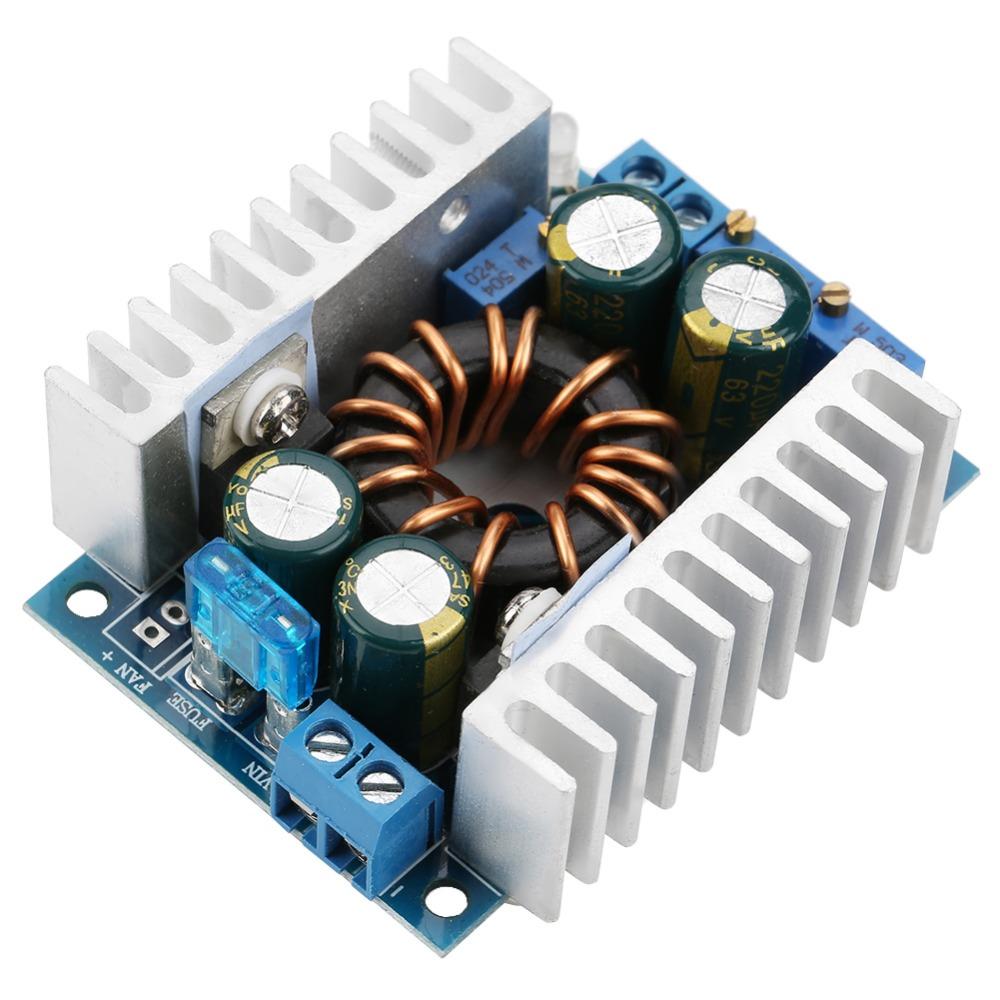

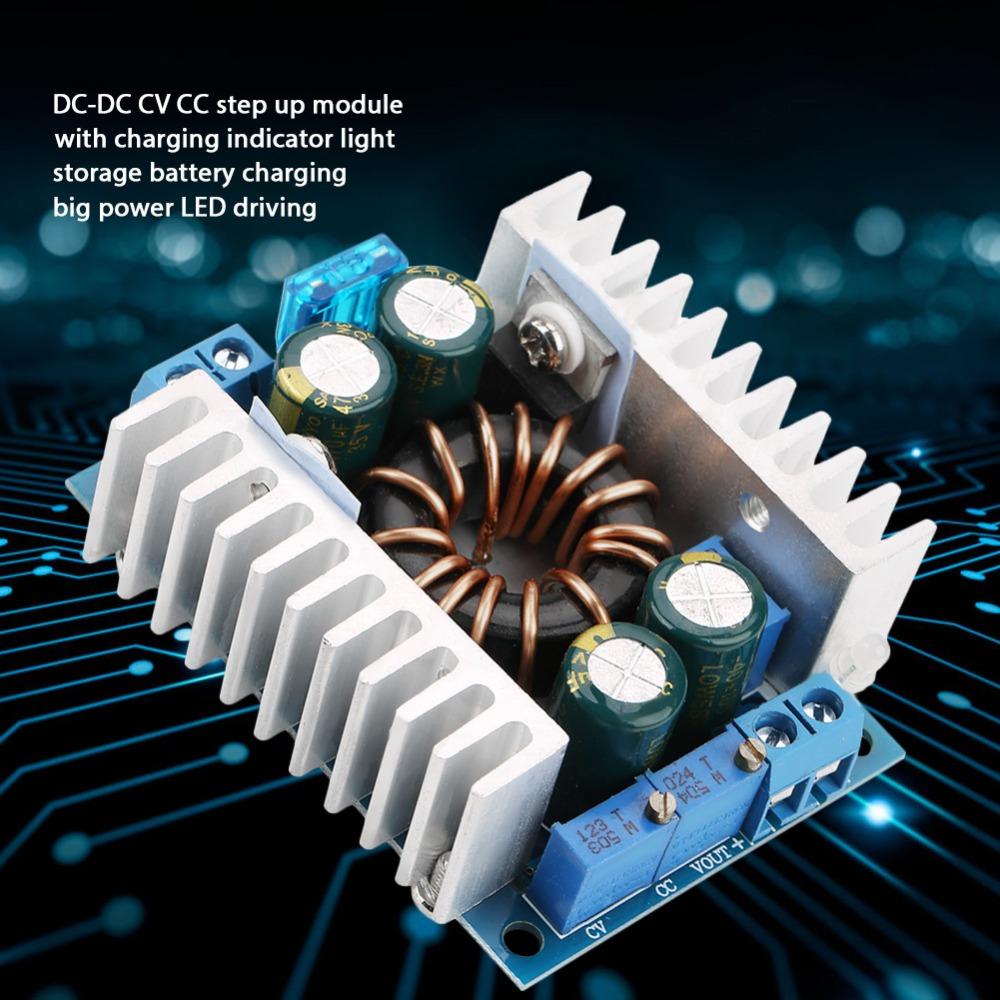

Designed with large heat sinks for better heat dissipation.
This is a non-isolated DC power converter module with long service life.
High power and stable output, it converts 10-32VDC to 12-60VDC.
Widely use for solar power voltage stabilization charging, battery pack charging, large power LED driving, etc.
Premium components ensures high conversion efficiency, up to 95%.
Specification:
Type: Non-isolated step up module (BOOST)
Input Voltage: 10~32VDC
Input Current: 16A (Maximum); if more than 8A, please enhance heat dissipation
Quiescent Current: 15mA(when converting 12V to 20V; it will increase when output voltage is higher)
Output Voltage: 10~60VDC continuously adjustable
(Applies only to where the input voltage is less than the output voltage, can not step down voltage)
Output Current: 8A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 4A)
Constant Current Output Range: 0.3~8A
Turn Lights Adjusting Range: 0.3~8A
Output Power: Passive cooling 90W Maximum; Enhanced cooling 150W Maximum
Operating Temperature: -40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 95% (Efficiency is related to input/output voltage, current and voltage difference)
Short Circuit Protection: Yes (input 15A protection)
Reverse Input Protection: No, usually can connect diode in series to the input
Output Indicator Light: With charging indication; it shows red when charging, green when fully charged
Output Flow Back Protection: Yes
Installation Method: Four 3mm(0.12in) screws (NOT included)

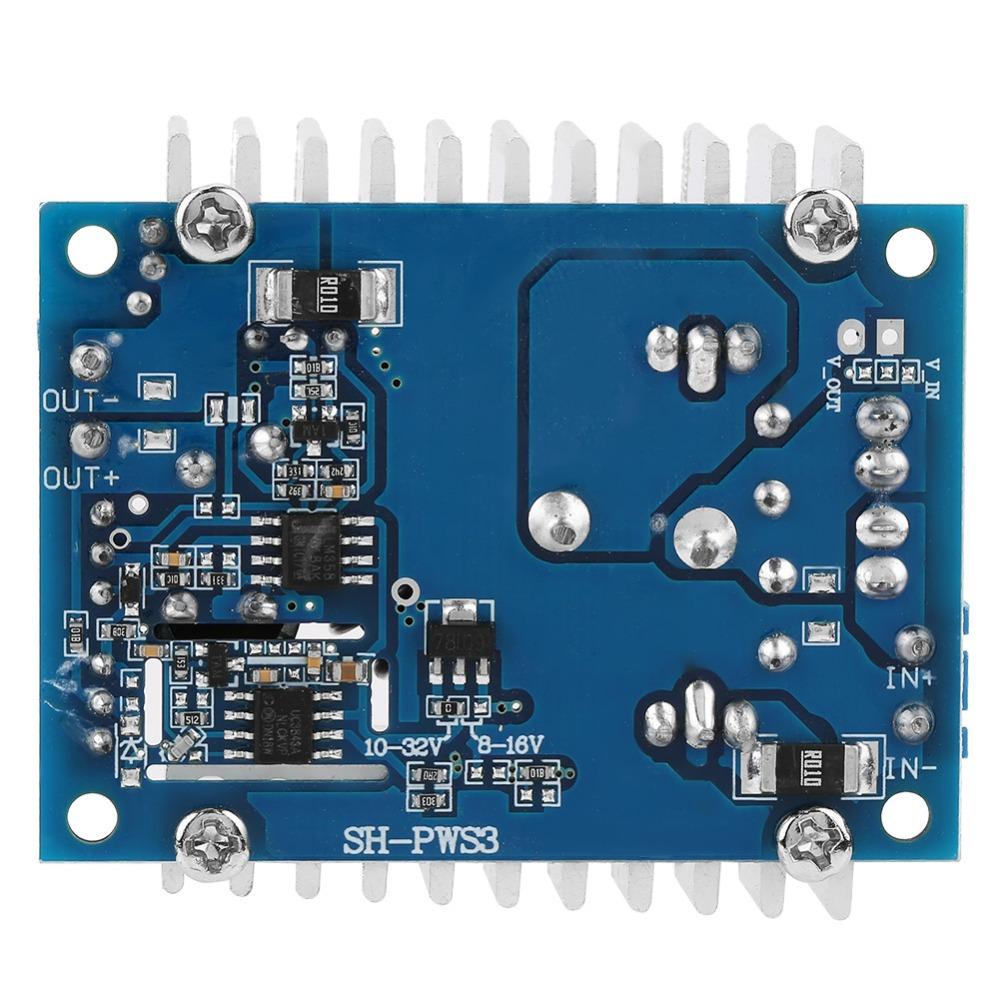

Wiring Method: Terminal blocks
Weight: 74g / 2.6oz (approx.)

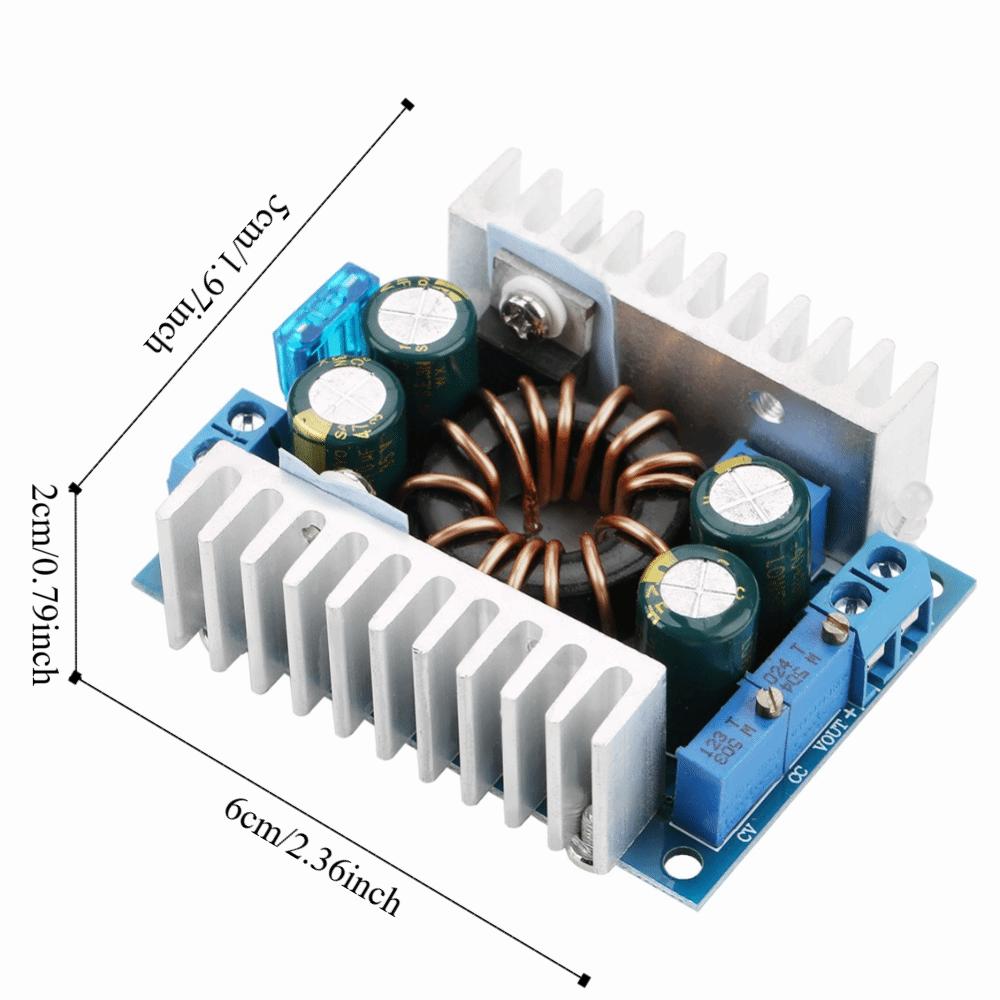

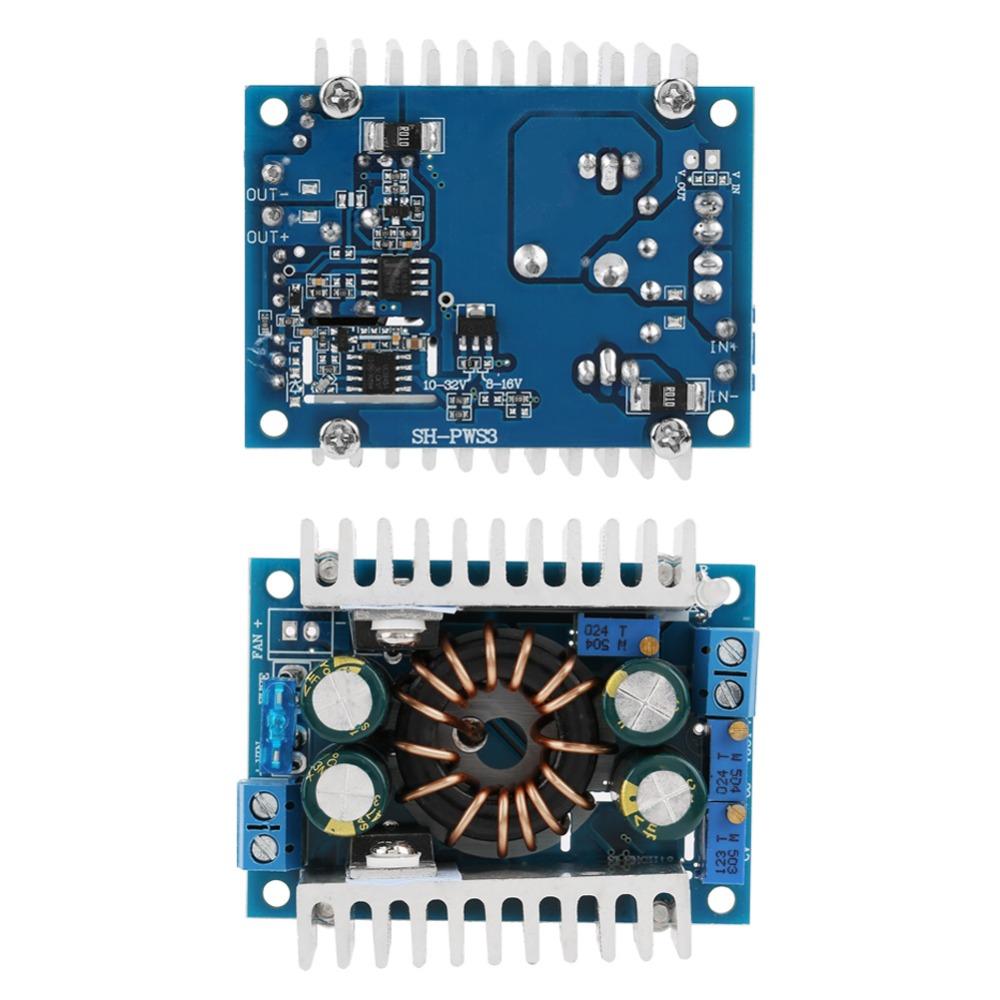

Size: 60*50*20mm(2.36*1.97*0.79in)
Color: As picture shown
Package list:
1 * Voltage Converter

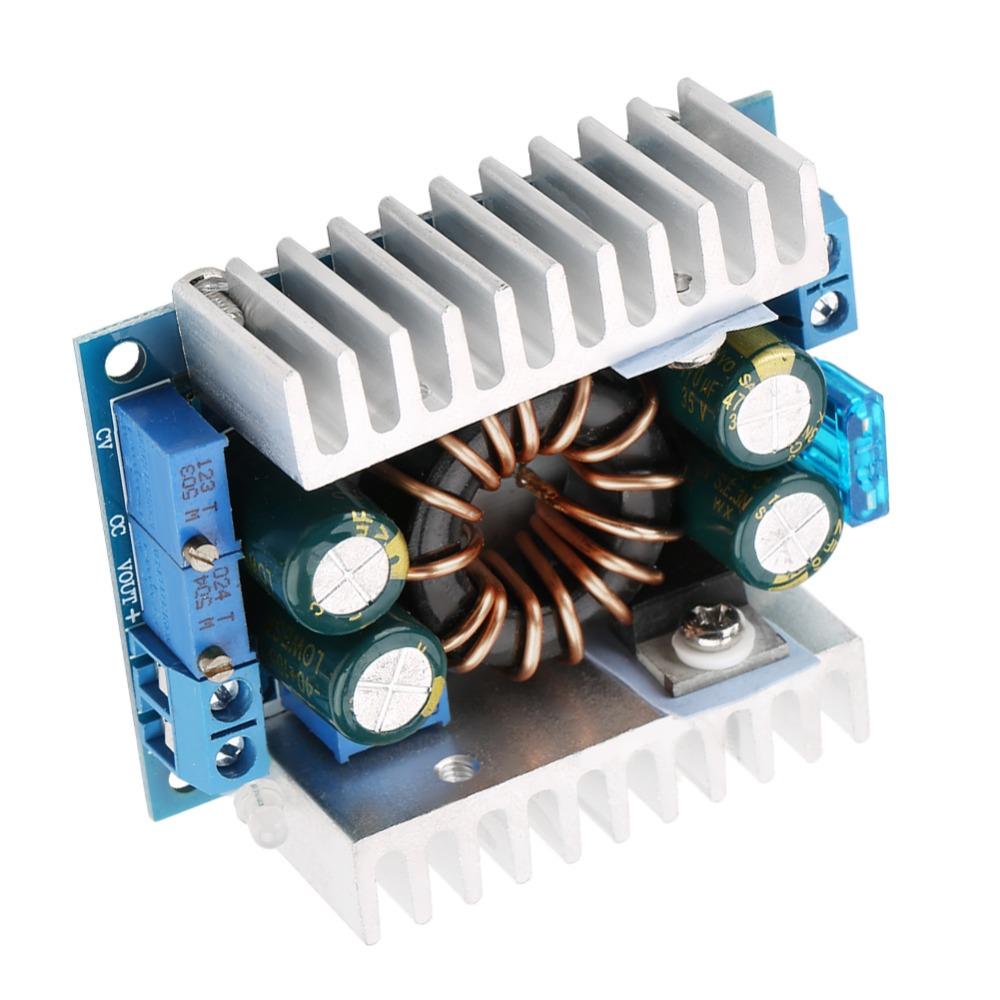

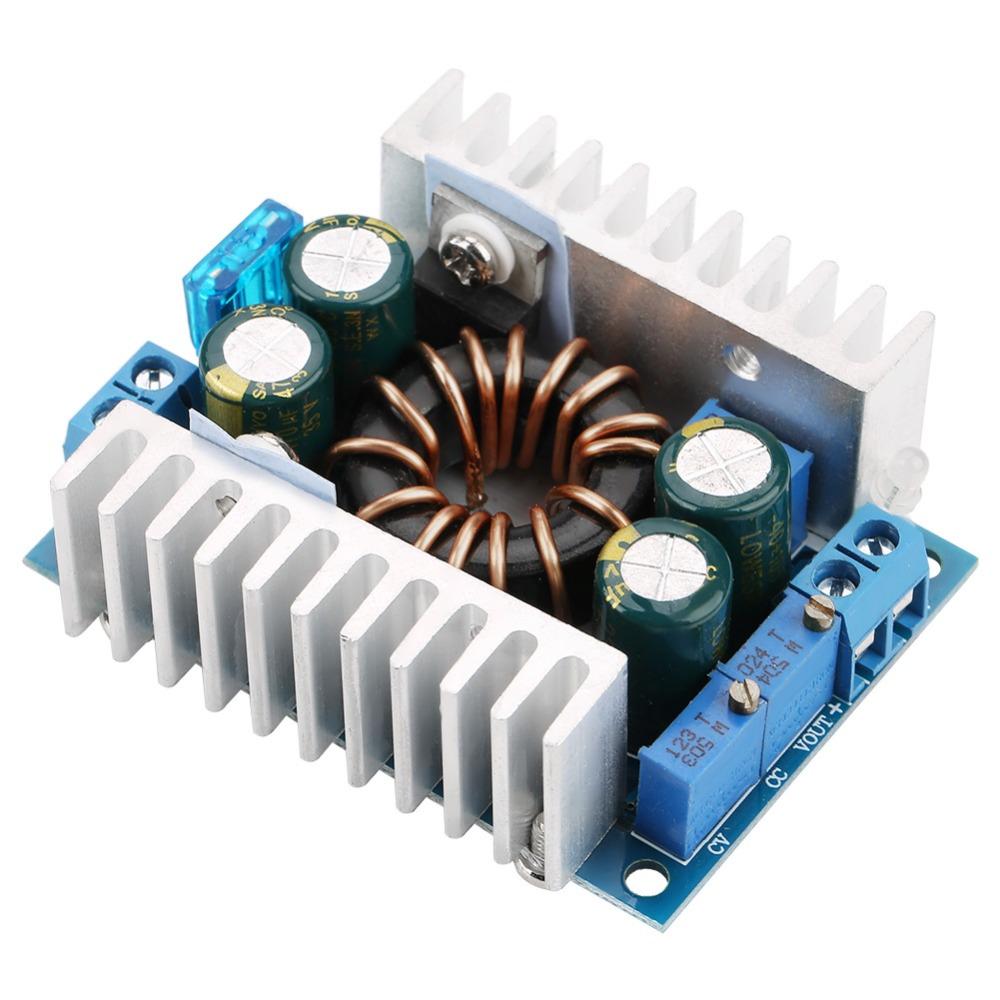

Current Adjustment:

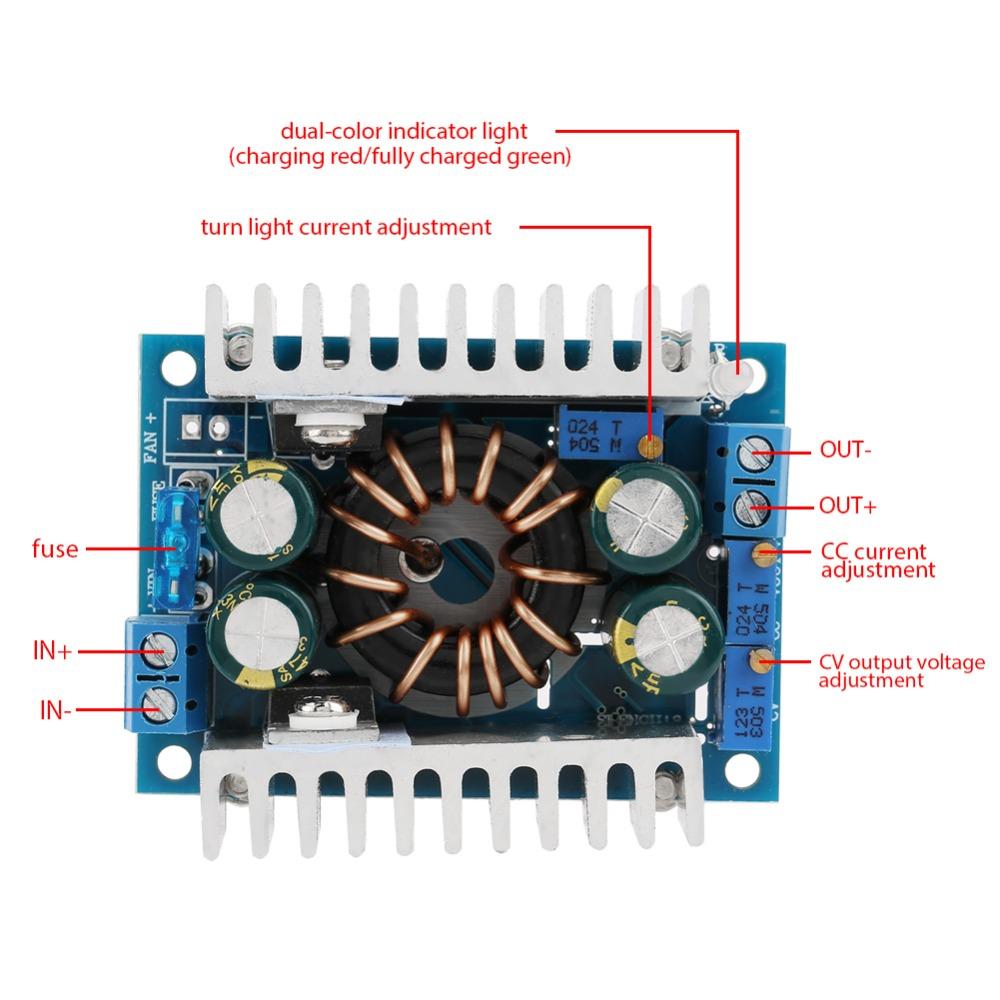

1, Adjust the CV potentiometer, depending on the load requirements, adjust the output voltage to the appropriate value, example:4 series of battery to 55V, 10 series LED to 37V
2, The module output current value is set to minimum (rotate counterclockwise CC potentiometer till you hear small crack sound from the potentiometer)
3, Connect to ammeter, connected to the LED or battery, adjust the CC potentiometer to the required current. If used for charging, discharge battery before adjustment.
Because the more battery power, the smaller charging current. Note that current of this module cannot be adjusted with short circuit.
4, Turn light current adjustment, used to indicate whether the battery is fully charged.Red light is on when charging, green light is on when fully charged. Connect a fully charged battery to output end, and adjust turn light potentiometer till green light is on.
