5. Suitable for Demanding Environments:This connector is commonly used in aviation, marine, and other sealed electronic equipment or data acquisition systems.
1. Durable Threaded Connection:Constructed with a threaded connection, the shell is made of chrome-plated zinc alloy and the contacts are gold-plated copper, offering durable, pressure-resistance, temperature-resistance, and corrosi-resistance performance.
4. Secure Screw-Fixed Connection:Plug bottom is equipped with a connecting head, using screws fixed, stable and firm, easy disassembly.
3. Key Specifications:Model: WS20, 4 pins;Contacts Diameter: 2.5×4;Contacts Resistance: ≤1 milliohm;Rated Current/Voltage: 25A / AC 500V;Withstand Voltage: AC 1500V
2. Good Protection:The wire aviation connector provides effective electromagnetic and frequency interference (EMI/RFI) protection.
Specifications:

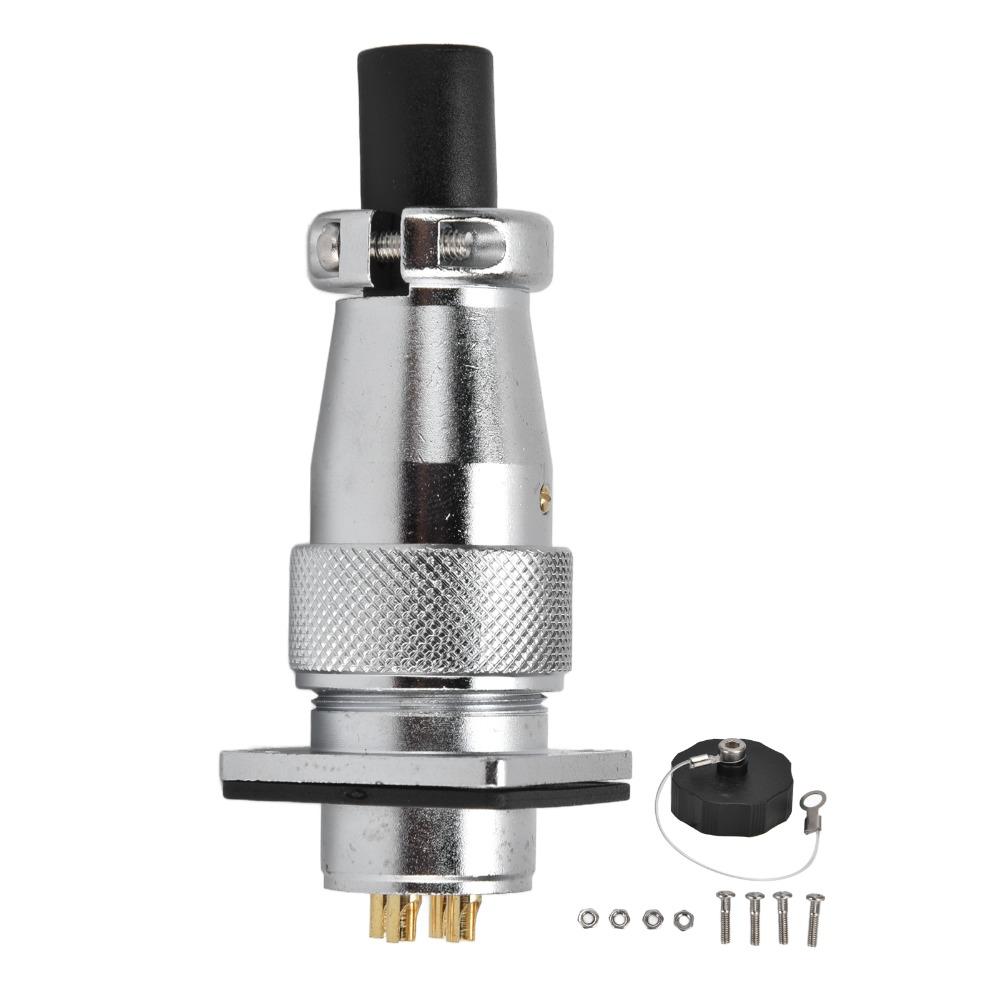

Item Type: 4 Pin Aviation Connector
Material: Zinc Alloy
Temperature Range: -40℃-85℃ / -40°F-185°F
Mating Times: 500
Number of Pins: 4
Rated Current (A): 25
Contacts Diameter (mm): 2.5x4
Working Voltage (AC, V): 500
Withstand Voltage (AC, V) 1min: 1500
Contacts Resistance (milliohm): 1
Insulation Resistance (megaohm): 2000
Wire Gauge (mm²/AWG): ≤4/11
Insertion method: threaded locking
Wiring method: Welding
Color: Silver+Black
Dimensions: 49 * 26mm(1.93 * 1.02in) and 29 * 29mm(1.14 * 1.14in)
Package List:
1 x TQ Plug
1 x Z Socket
1 x Waterproof Cover
4 x Screw
4 x Nut
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
