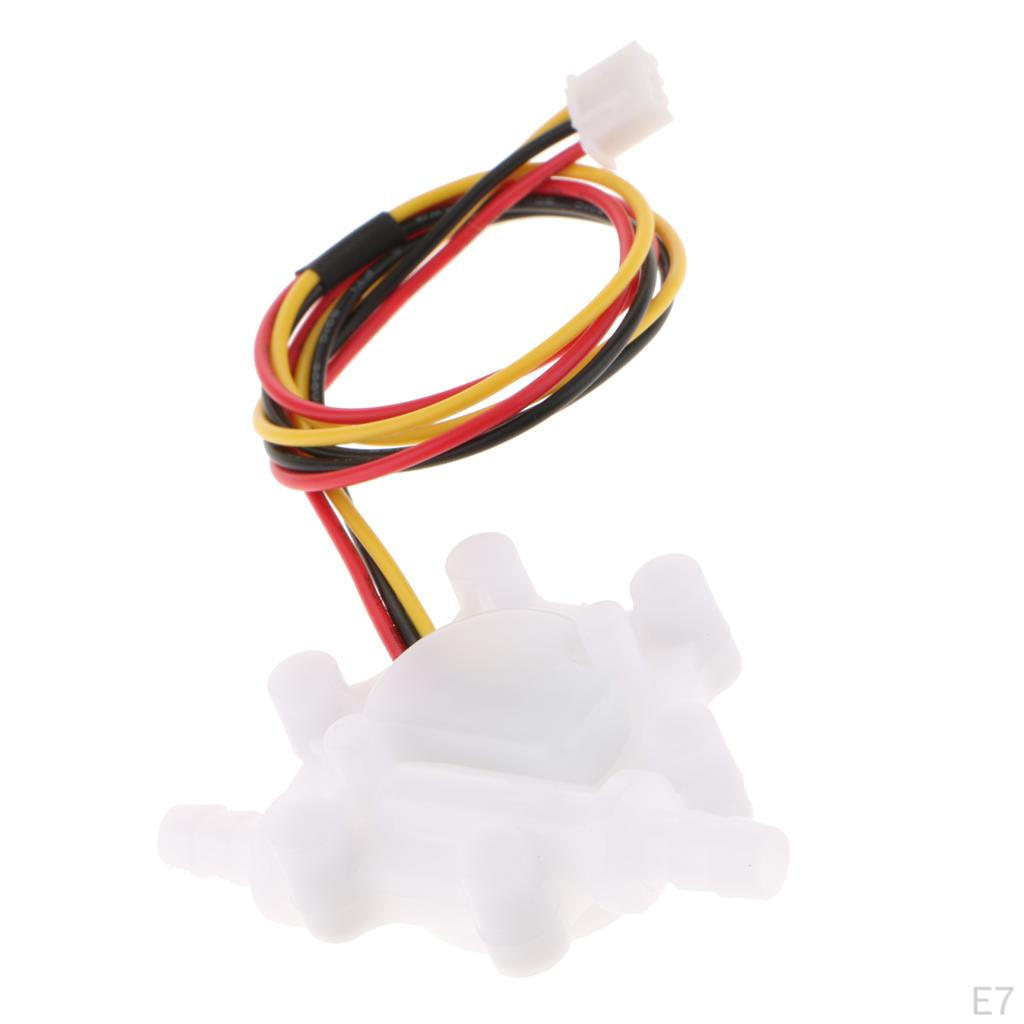

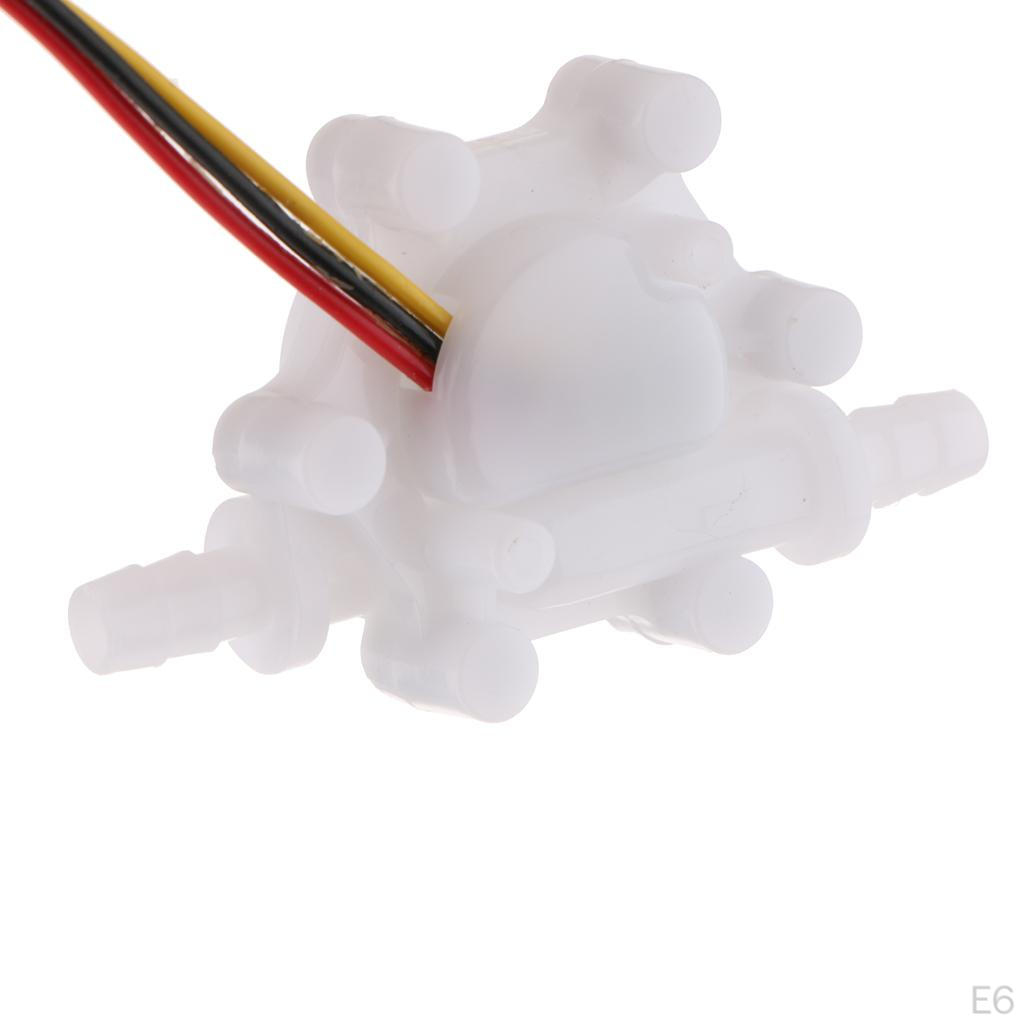

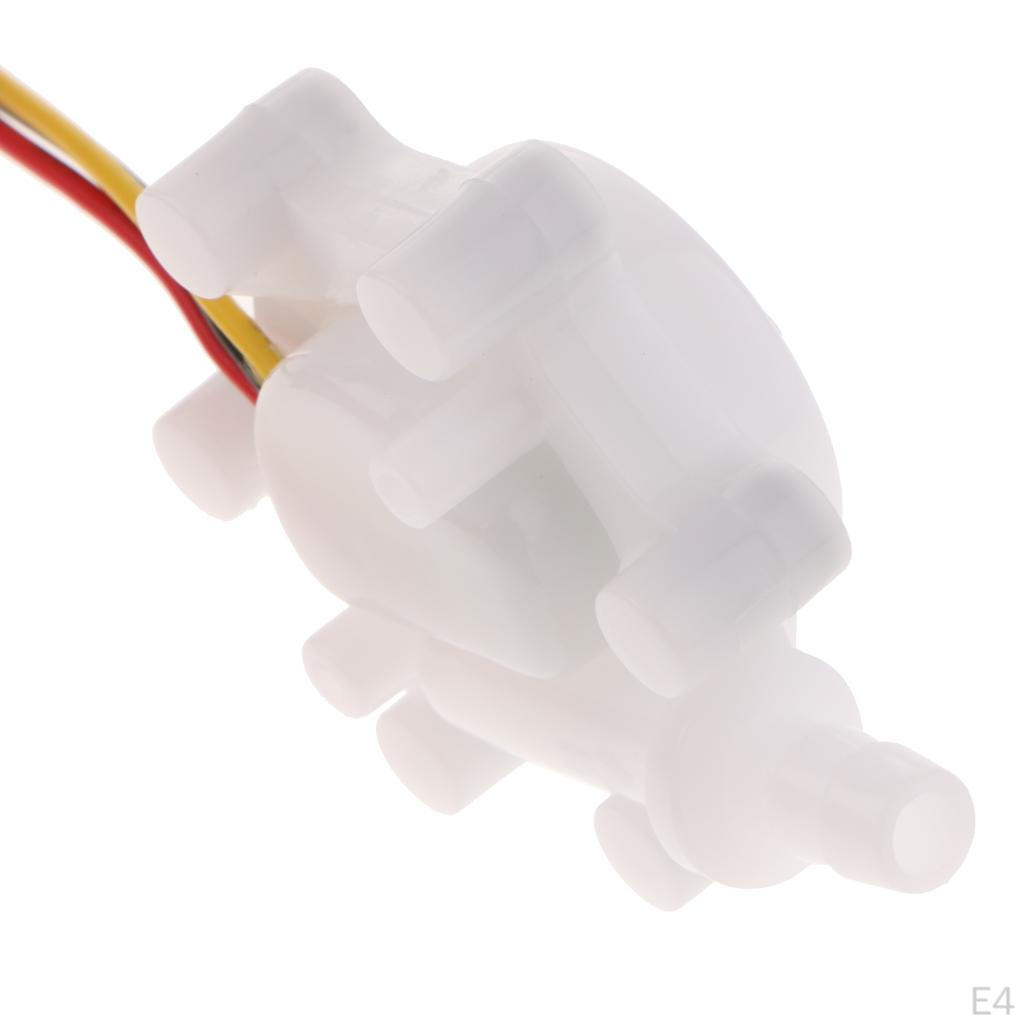

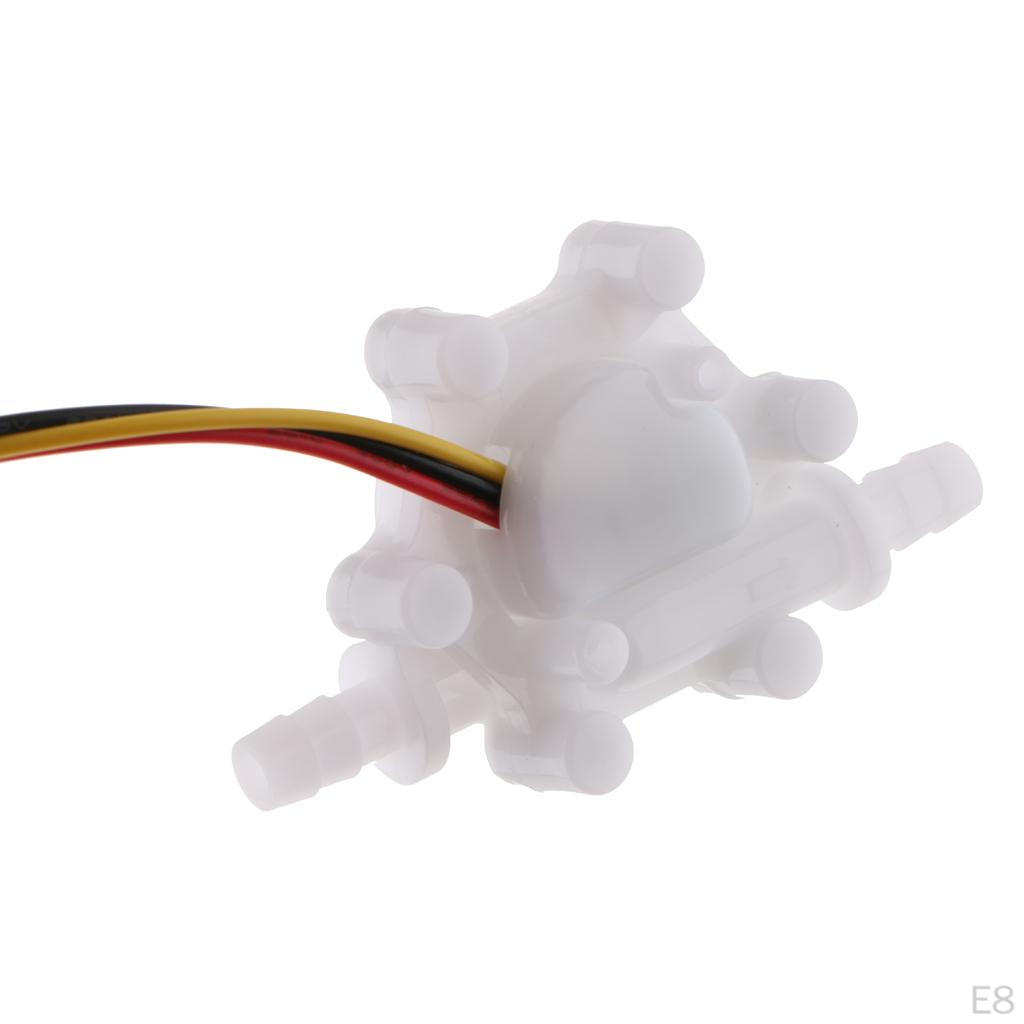

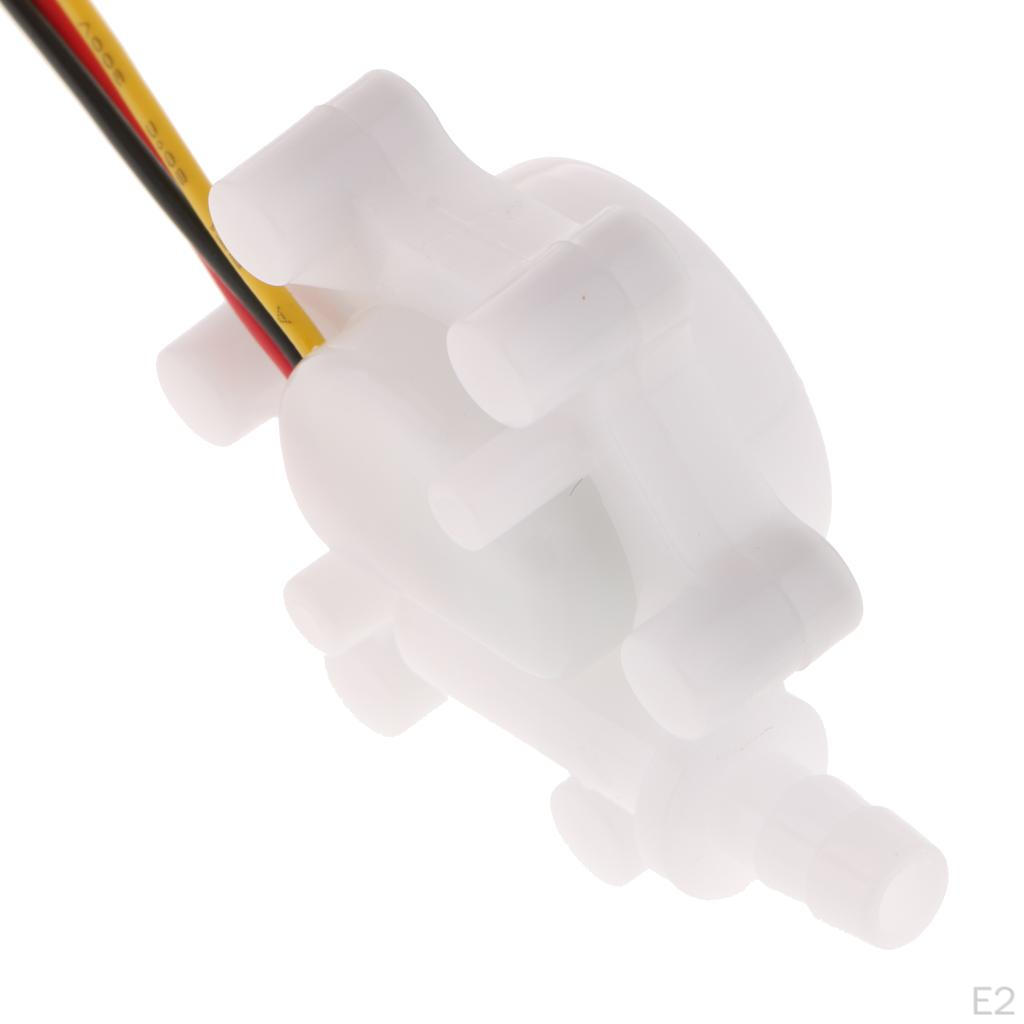

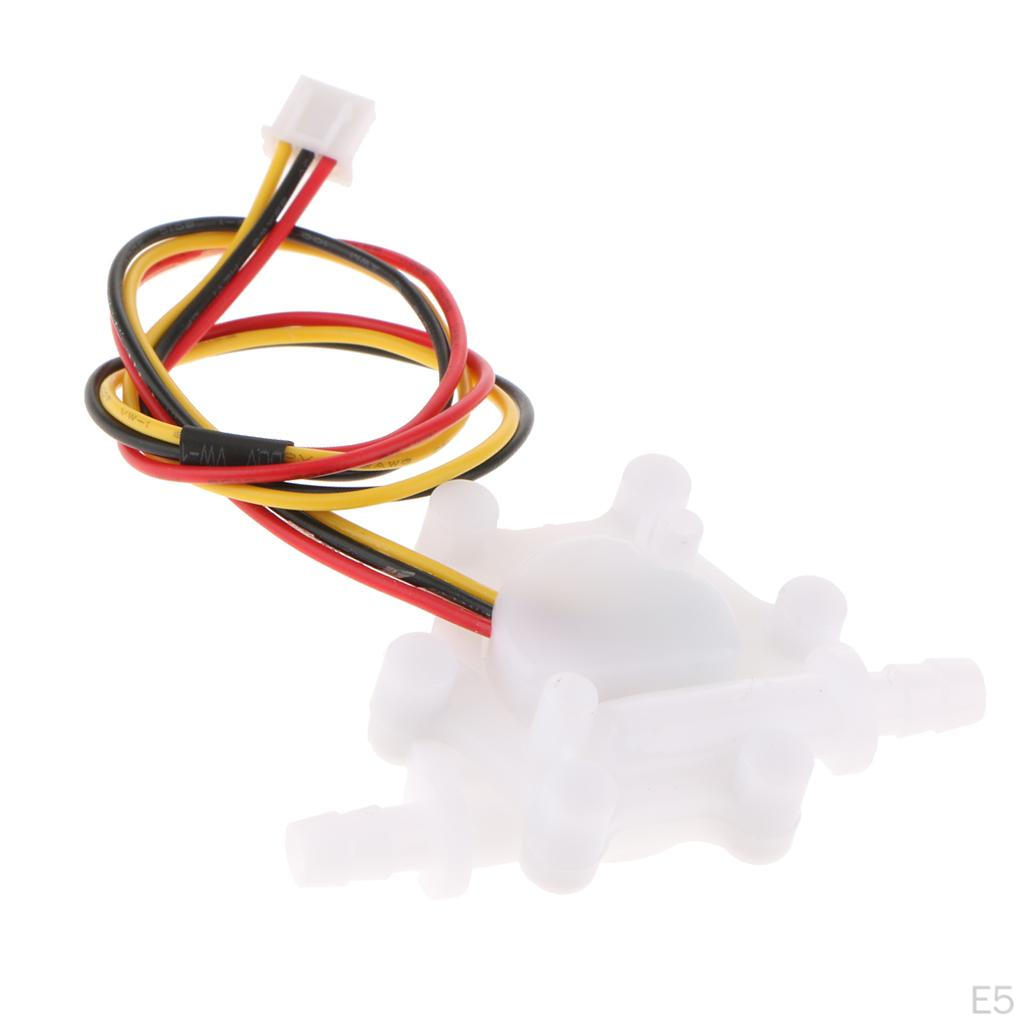

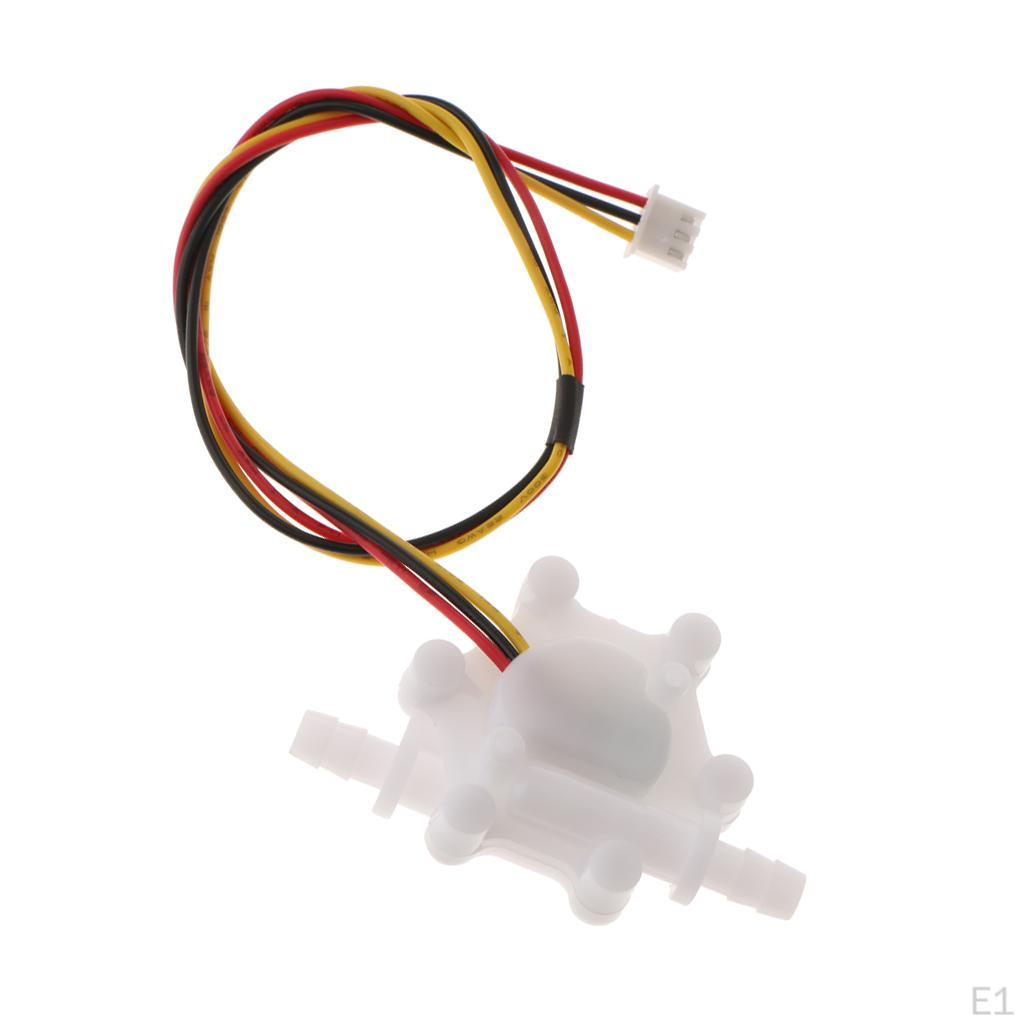

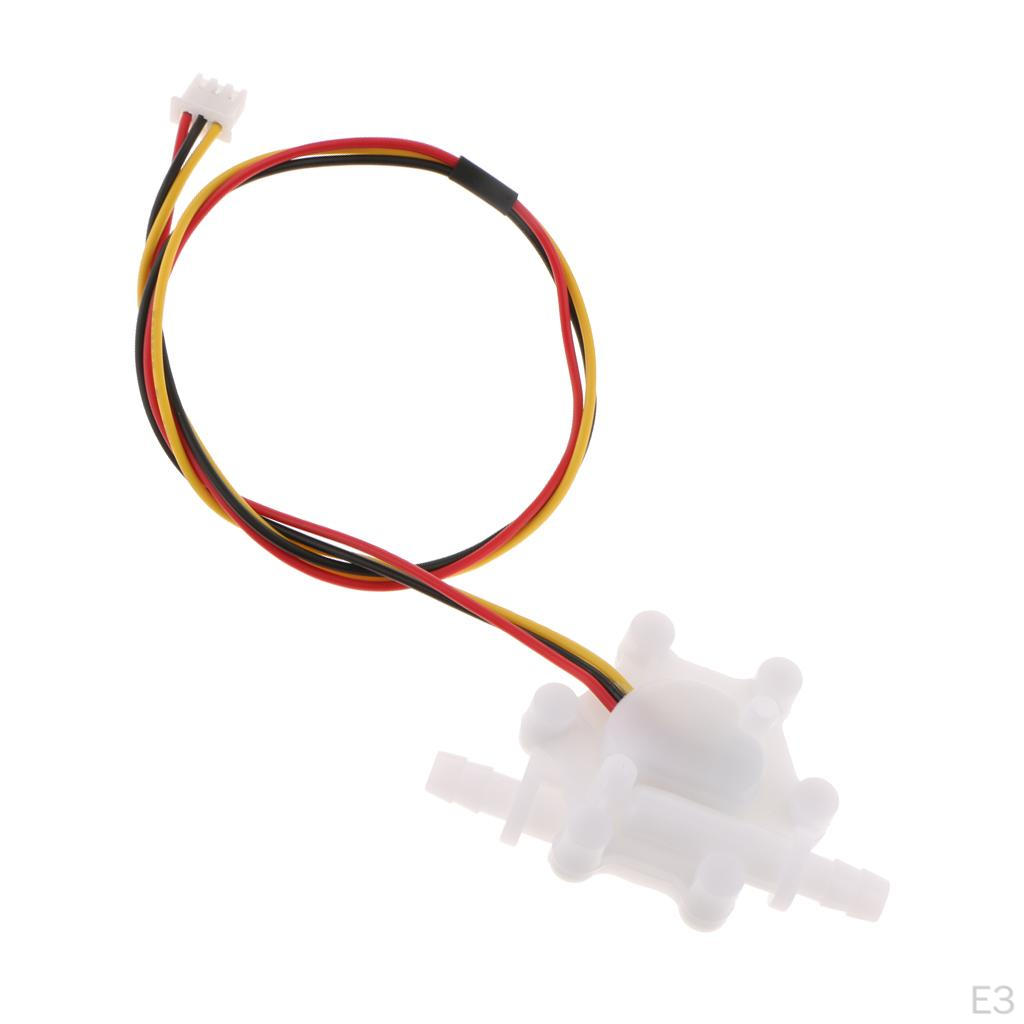

Meter Liquid Sensor Water for Industrial Application Accessory

Description:

- Lightweight, Small in size, Easy to install

- Avoid unit contact with corrosive chemicals

- The unit must be installed vertically, tilted no more than 5 degrees

- Liquid temperature should be less than 6 C to avoid damage to unit

- Type 1 Flow Eange: 1.5-1.5L/min; Type 2 Flow Eange: .2-3.L/min; Type 3 Flow Eange: .25-3.L/min; Type 4 Flow Eange: .3-4.L/min

Specification:

- Size: 65x4x2 mm / 2.55x1.57x.78 inch

- Proof Water Pressure: <.8 MPa

- Voltage Range: DC 4.5 to 18 V

- Operating Current: 1 mA (DC 5V)

- Insulation Resistance: >1 MΩ

- Accuracy: ±5% (.3-3L/min)

- The Output Pulse High Level: >4.5 VDC (DC input voltage 5 V)

- The Output Pulse Low Level: <.5 VDC (DC input voltage 5 V)

- Output Pulse Duty Ratio: 5% ± 1%

- Water-flow Formula: 1L = 265 pulse

- Working Humidity Range: 35% to 9% RH (no frost)

- Line length: 34 mm / 13.38 inch

Package Includes: 1 piece flow sensor

Note: In order to avoid particles, debris enters the sensor, and a filter must be installed at the sensor inlet. The installation should be inside or inside the equipment. Do not expose it to outdoor or wet for a long time. In a harsh environment with high temperature, avoid the environment of strong vibration and shaking, thus affecting the measurement accuracy of the sensor.
