Features:
Experience precise acquisition with the ADS1120 (16bit) and ADS1220 (24bit ) Analog to Digital converters, essential for demanding SPI applications requiring low power consumption.
Featuring multiple analog input channels, a built in programmable gains amplifier (PGA), and efficient SPI communication, this module delivers flexible, low power consumption.
Engineers and developers working on battery powered applications, industrial systems, and instruments will find its low power consumption
Perfect for sensoring data acquisition in remote monitoring stations, portable medical devices, or multi channel industrial controls where precise and low power consumption are critical.
Optimize your sensoring readings with the integrated PGA and flexible SPI Analog to Digital module for reliabled performances in various electronic designs.
Specifications:
Component: ABS.

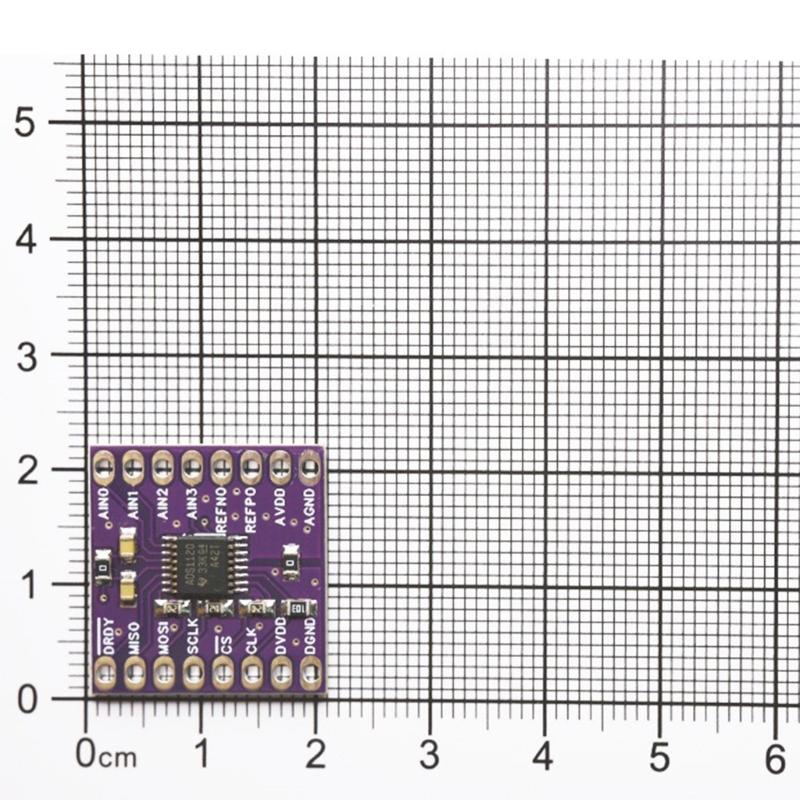

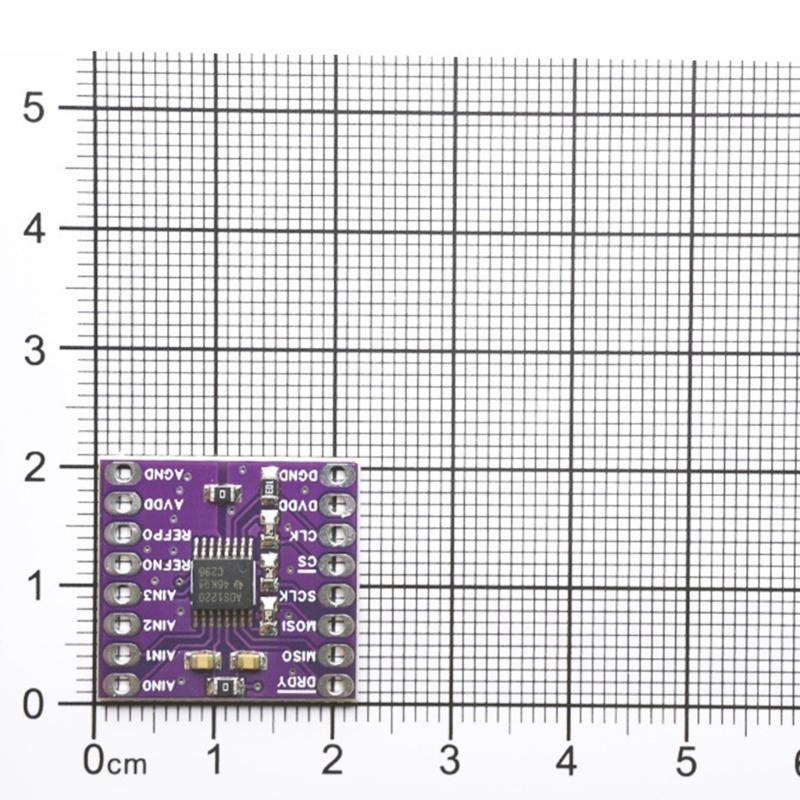

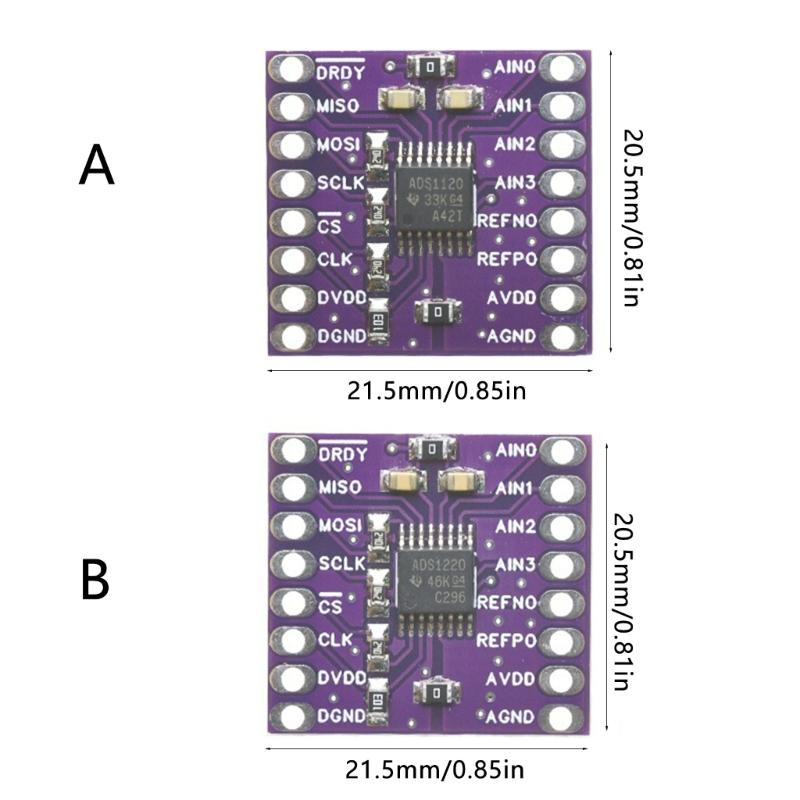

Size 20.5x21.5mm.

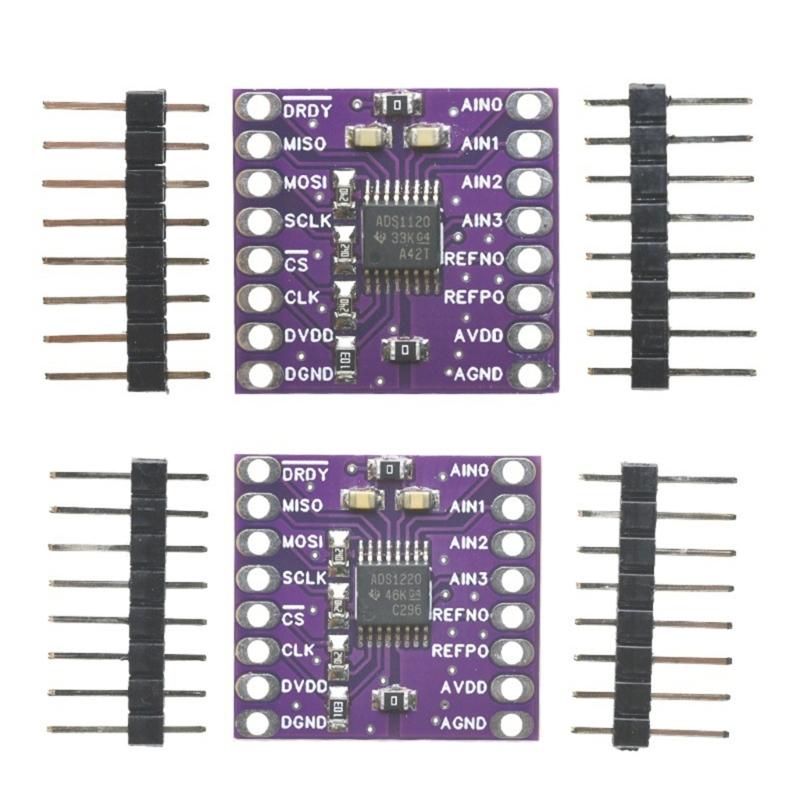

Option: ADS1120, ADS1220.
Low current: as low as 120μA (typ) in duty cycle mode.
Wide supply voltages ranges: 2.3V to 5.5V.
Programmable gains: 1V/V to 128V/V.Programmable data rate: up to 2kSPS.
Up to 20bit effective resolution with single-cycle digital filter, 50Hz and 60Hz suppression at 20SPS, two differential inputs or four single-ended inputs.
programmable current source: 10μA to 1.5mA.
Integrated 2.048V reference: 5ppm/°C drift (typ), integrated 2% precise oscillator.
Integrated temperature sensoring: accuracy 0.5°C (typical).
Package Includes:

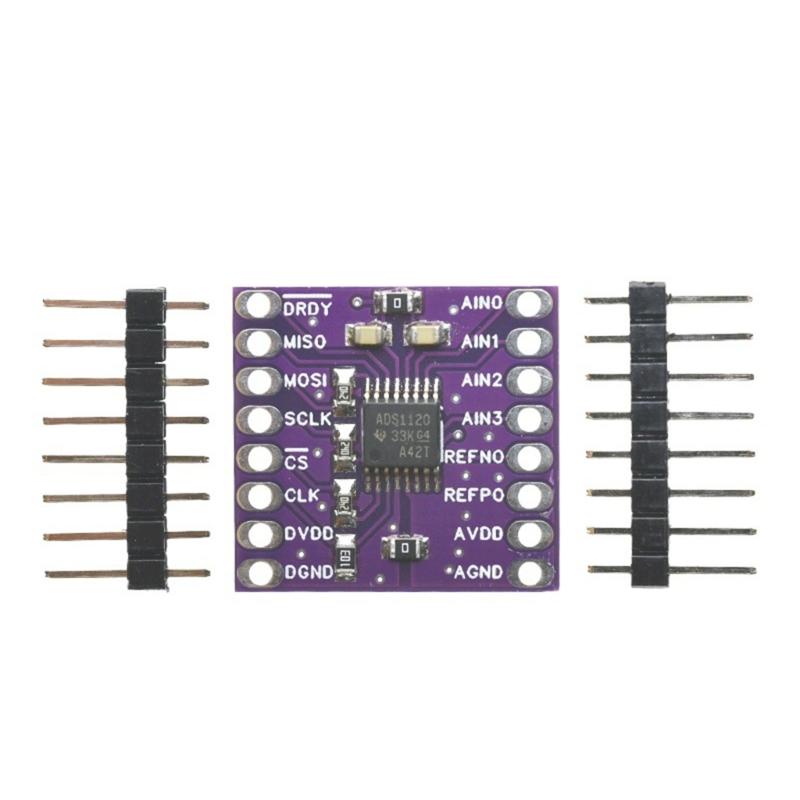

1PCS ADS1120 analog module
2PCS pin headers
note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution
No-delivery refund
