【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------
1. The transceiver does not come with batteries (sold separately). Before using the transceiver, be sure to install three AAA batteries (sold separately) or three AAA Ni-MH rechargeable batteries (sold separately). Do not charge the batteries. (Pay attention to the battery polarity when installing them in the transceiver.)

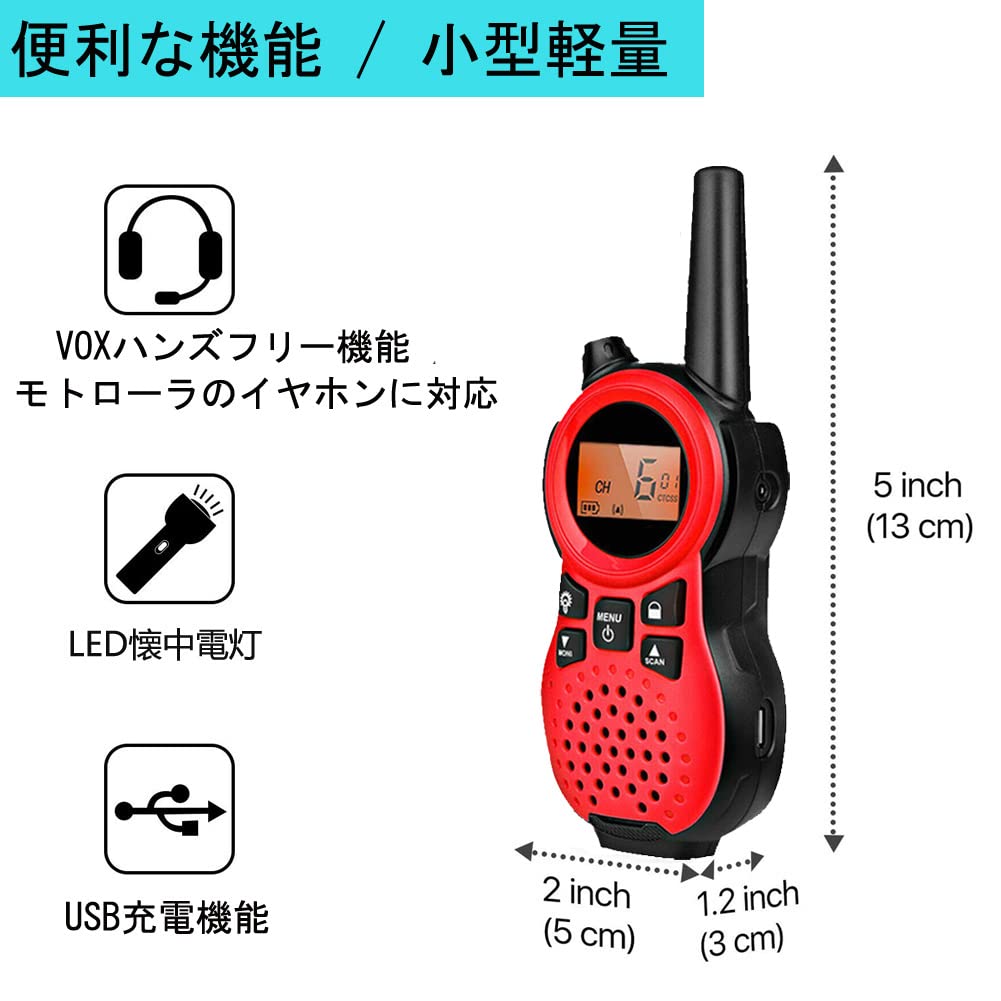

2. The minimum recommended age for use is 60 months. Communication distance: 1-2km in open countryside, 100-200m in urban areas. Compact design: Dimensions: 128mm high (including antenna) x 48.5mm wide x 32.5mm deep, weight: 66g (excluding batteries).
3. Monitor/MONI (Zero Squelch): Turning this feature on helps the transceiver strengthen the received signal when the signal is weak. If the buzzing continues even after pressing the Down/Moni button for 2 seconds, or if you are unsure which button is being pressed, try restoring the transceiver to factory settings to resolve the issue: remove the transceiver from the compartment, press and hold the Menu/PWR button, then return the transceiver to the correct polarity. The unit will turn on and display CH 100. At this time, release the Menu/PWR button and the device will turn on automatically.
4. To remove the belt clip: Pull up the lever on the back of the transceiver, release the tab from the main unit, then pull the entire belt clip toward the antenna to remove the belt clip from the main unit. This small transceiver has a compact and stylish design, making it convenient to carry in your pocket, bag, or handheld. It is easy to use, even for beginners and children.
This toy walkie-talkie comes with a 1-year manufacturer's warranty and 45-day warranty. It includes a set of four walkie-talkies (with four belt clips), four neckbands, two USB-C cables, and a Japanese instruction manual. It's certified to comply with technical standards and can communicate with 9-channel, 11-channel, and 20-channel models, including other manufacturers' low-power walkie-talkies. This set of four walkie-talkies lets you start one-to-multiple communication right out of the box.
TRH is a dynamic and innovative brand, made up of a team of creative minds.
Our products are carefully researched and developed to keep up with the times, and we wholeheartedly serve all existing and potential customers.
Customer praise is the foundation of TRH's development, ingenuity is the driving force behind TRH's development, and the team's goal is to build TRH for 100 years.
Main specifications
Receiving frequency: 422.050 to 422.300 MHz (12.5 kHz intervals)
Radio wave format: F3E
Receive sensitivity: -8dBu or less (12dB SINAD)
Usage time: Approximately 20 hours
*Measurement conditions: 12 new alkaline AAA batteries used.
At low frequency output of 100mW, the cycle is 10 seconds of transmission, 10 seconds of reception, and 80 seconds of standby.
Operating temperature range: -10°C to +50°C
Compatible with 9ch/11ch/20ch devices
38 Group Mode
83 Group Mode
Hands-free function (VOX function)
Dual Watch Function
Channel Scan Function
Bell call function
Compared to other small transceivers of the same type:
1, ABS environmental protection material, durable and resistant
2. Compact design, easy to carry
3. Charging function: saves costs, protects the environment, and makes it easy to find charging devices.
4. 38 CTCSS/83 DCS group mode: By using this group function,
Even if you use one channel, you can make calls comfortably without interference.
Currently, other small transceivers only have 38 group modes, but this unit has 121 group mode functions.
5. Earphone function: Protect your privacy, avoid disturbing people around you, and make the sound quality clearer
6. Dual Watch Mode (DCM) function: This function allows you to set two channels as standby and talk alternately. Other transceivers do not have this function.
7. USB charging function saves costs and protects the environment.
Estimated communication distance*
Suburban area with a good view: about 1-2km
Urban area: approx. 100-200m
*The transmission distance varies greatly depending on the environment. The transmission distance is greatly affected by obstacles such as buildings and the usage conditions.
If you want a faster and more immediate response than a telephone, we recommend a walkie-talkie.
It has been used for many jobs, hobbies and events and has received positive feedback!
Use product scenes
Used for outdoor activities.
Manufacturer recommended minimum age 60 months
This product is suitable for family cars, off-road adventures, hiking, camping, mountaineering, etc.
Used in daily business activities
Suitable for construction sites, various shopping malls, restaurants, game halls, competition venues, schools and entertainment facilities.
Use in children's games and parent-child activities
No license required! Simple functions make it easy to use even for beginners and children.
Also suitable for family outdoor play, children's games, and parent-child interactive games.
