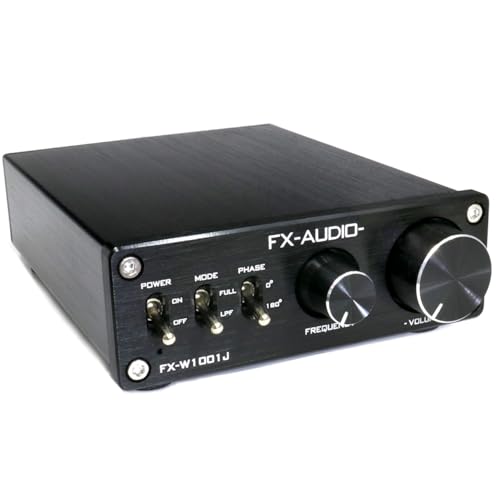

FX-AUDIO- FX-W1001J [Black] TPA3116 Digital Amplifier IC with PBTL Low-Pass Filter, Mono Power Amplifier, 100W X 1ch ParallelBTL, Subwoofer Amplifier

High-Power Mono Power Amplifier This mono power amplifier is based on the FX-1001J and features a low-pass filter. Equipped with a Texas Instruments TPA3116 digital power amplifier IC, it delivers a maximum 100W of high-power output when driven in Parallel BTL mono mode. In addition to being used as a standard mono power amplifier, two units can be connected to the left and right channels of a stereo source for a dual mono (mono block) configuration with excellent channel separation. In addition, the built-in low-pass filter, cutoff frequency adjustment, and phase inversion function allow it to be used as a power amplifier for passive woofers.

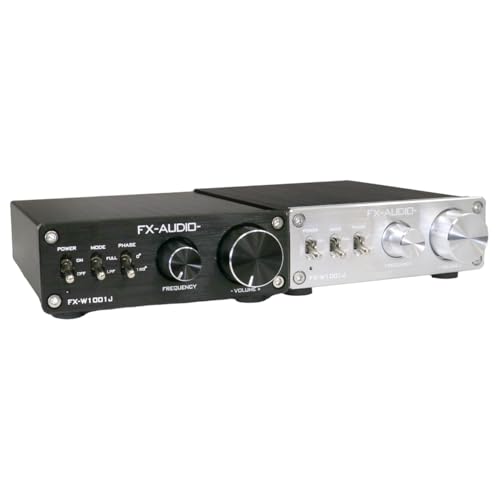

[Benefits of a Dual Mono Stereo Configuration (Two Units)] Easily create the stereo system you've always dreamed of with two mono amplifiers! This configuration is less susceptible to crosstalk between left and right channels, improving channel separation. It can be installed close to the speakers, allowing for shorter speaker cables and improved damping factor. Independent left and right volume controls allow for left-right balance adjustment.

[Benefits of Low-Pass Filter Mode] If you have a passive subwoofer, this amplifier alone can turn it into a powered subwoofer! Even for DIY speaker builders, building a powered subwoofer can be quite a hassle, as it requires preparing a power supply board, low-pass filter board, and power amplifier board. However, with just this amplifier, you can complete a powered subwoofer setup by simply building (or preparing) a passive woofer box! Even if one side of a large-diameter woofer-equipped speaker is broken, simply connect this amplifier to quickly transform it into a powered subwoofer with adjustable cutoff frequency!

[About Phase Reversal Mode] When using the FX-W1001J as a subwoofer, if the bass frequencies output from the main speakers interfere with or cancel each other out due to the placement of the subwoofer and the main speakers, resulting in a perceived lack of bass, this function reverses the phase to resolve this issue.

Toggle the switch to a setting that enhances the bass.

[Product Features] ■Maximum 100W Output Mono Power Amplifier This mono power amplifier achieves a maximum driving power of 100W by operating the TPA3116 digital power amplifier IC in Parallel BTL mode. When building a stereo system with two FX-W1001J units, connecting one unit each to the left and right channels suppresses mutual interference (crosstalk) between channels, contributing to improved separation.

■Low-Pass Filter Function The low-pass filter function can be turned on/off using the filter mode selector switch. The cutoff frequency is adjustable from 20-200Hz, and it also features a phase inversion function, providing all the essential features of a mono power amplifier for passive subwoofers.

■ Stereo-to-Mono Conversion Equipped with a function (MIX mode) that combines stereo input signals and converts them to a mono signal. The signal input from the RCA input terminals (R/L) is internally combined and amplified, enabling mono output to a single speaker. It can be used not only for subwoofers but also as an amplifier for a center speaker.

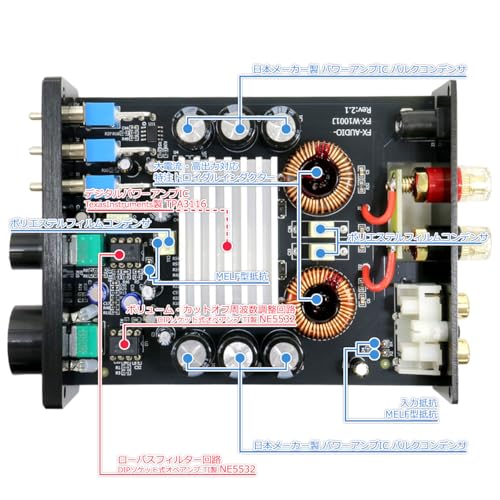

■ Attention to Internal Components Low-impedance power supply capacitors made by Japanese manufacturers are used as power supply decoupling capacitors, and multiple capacitors are installed in series to effectively reduce power supply ripple noise. In addition, polyester film capacitors, renowned for their excellent sound quality, are used for the coupling capacitors and output filter capacitors, which have a significant impact on sound quality. The output filter inductor is a custom-made toroidal inductor capable of handling high currents, and is further fixed in resin to achieve high sound quality. We paid careful attention to the selection of components that affect sound quality, including the use of MELF-type resistors for key resistor components, which are advantageous in terms of sound quality.

[Recommended Configuration] If you have a 2-channel power amplifier, you can achieve a 2.1-channel configuration by installing the LS-02J and FX-W1001J.

[Notes] *This product requires a power supply sold separately. A separate AC adapter is required for use.

*This product's DC plug is compatible with 5.5mm outer diameter and 2.5mm inner diameter types.

*If using an AC adapter with a 2.1mm inner diameter DC plug, a plug conversion cable and adapter are required.

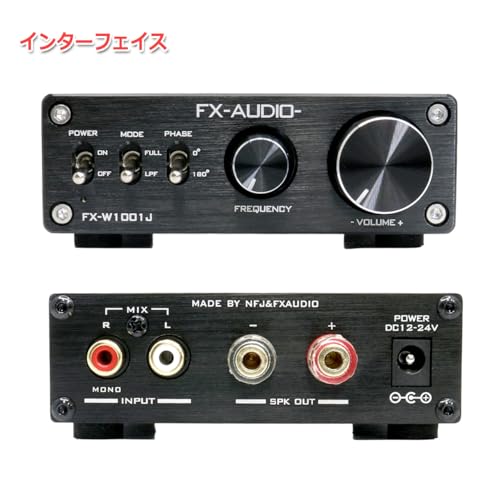

[Product Specifications] Color: Black Warranty Period: 6 months from the date of purchase Input Terminal: RCA Terminal, Mono/Stereo (MIX) Maximum Output: 100W Speaker Compatible: 2Ω–16Ω Output Terminal: 1-Channel Mono Speaker Output (Gold-Plated Speaker Terminals for Banana Plugs) Digital Amplifier IC: Texas Instruments "TPA3116" Features: Low-Pass Filter (Cutoff Frequency Adjustment, Phase Inversion), Stereo-to-Mono Conversion Power Supply: DC 12–24V, 2A or More (4A or More Recommended) *Power Supply Sold Separately Power Connector: DC Jack, Outer Diameter 5.5mm, Inner Diameter 2.5mm (Center Positive) Accessories: Instruction Manual Dimensions: 98mm W x 123mm D x 33mm H (Excluding Protrusions) Weight: 390g

Specifications and design may be changed without notice for product improvement purposes. AC adapter required (sold separately): DC 12V/2A or higher, 5.5mm x 2.5mm DC jack (center positive) Maximum 100W output mono power amplifier Low-pass filter Stereo-to-mono conversion High-quality internal components
