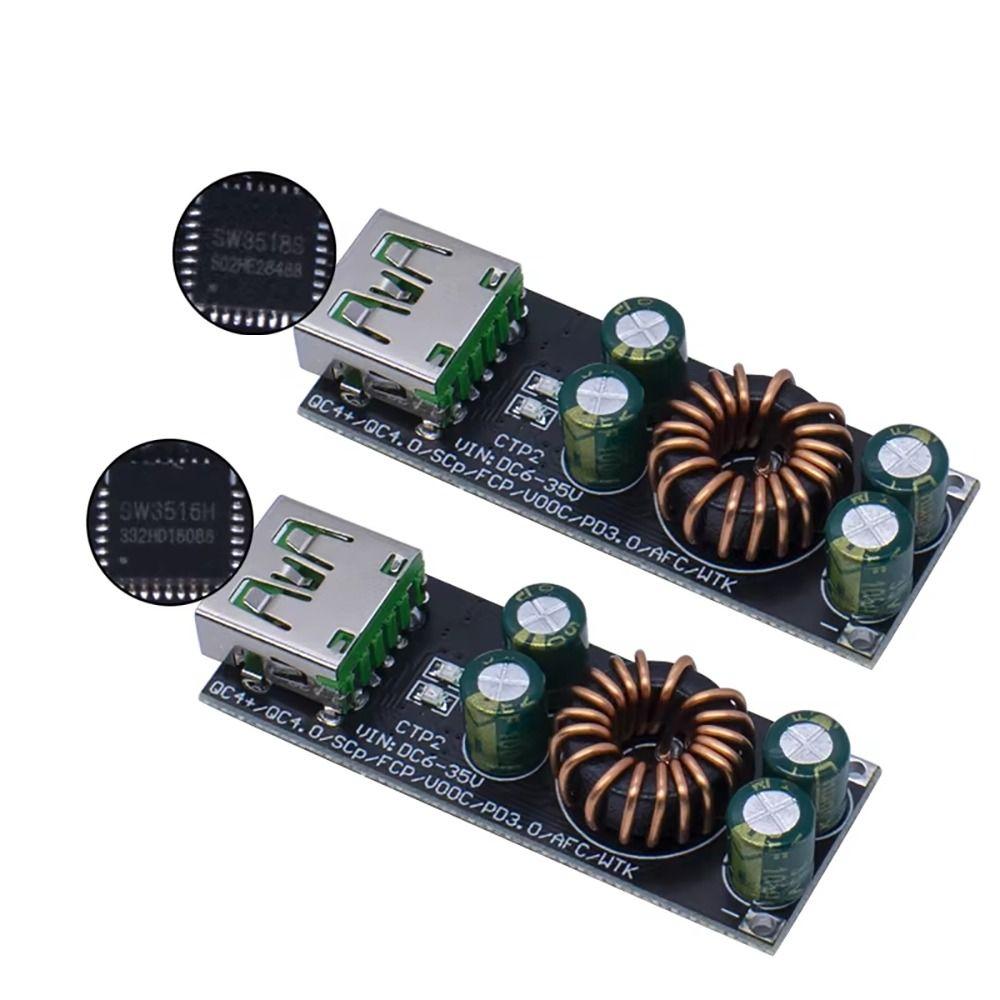

SW3518 Moudule QC4.0 QC3.0 Adapter 6-35V Input Step Down Buck Boost Module Electronic Devices

Label:Yes Color:As the picture shown Material:PCB Package Includes:1 Pc USB Type-C Mobile Phone Quick Charge Adapter Module Type:Module Size:49*18/64*37/73*63mm(1.93*0.71/2.52*1.46/2.87*2.48in)

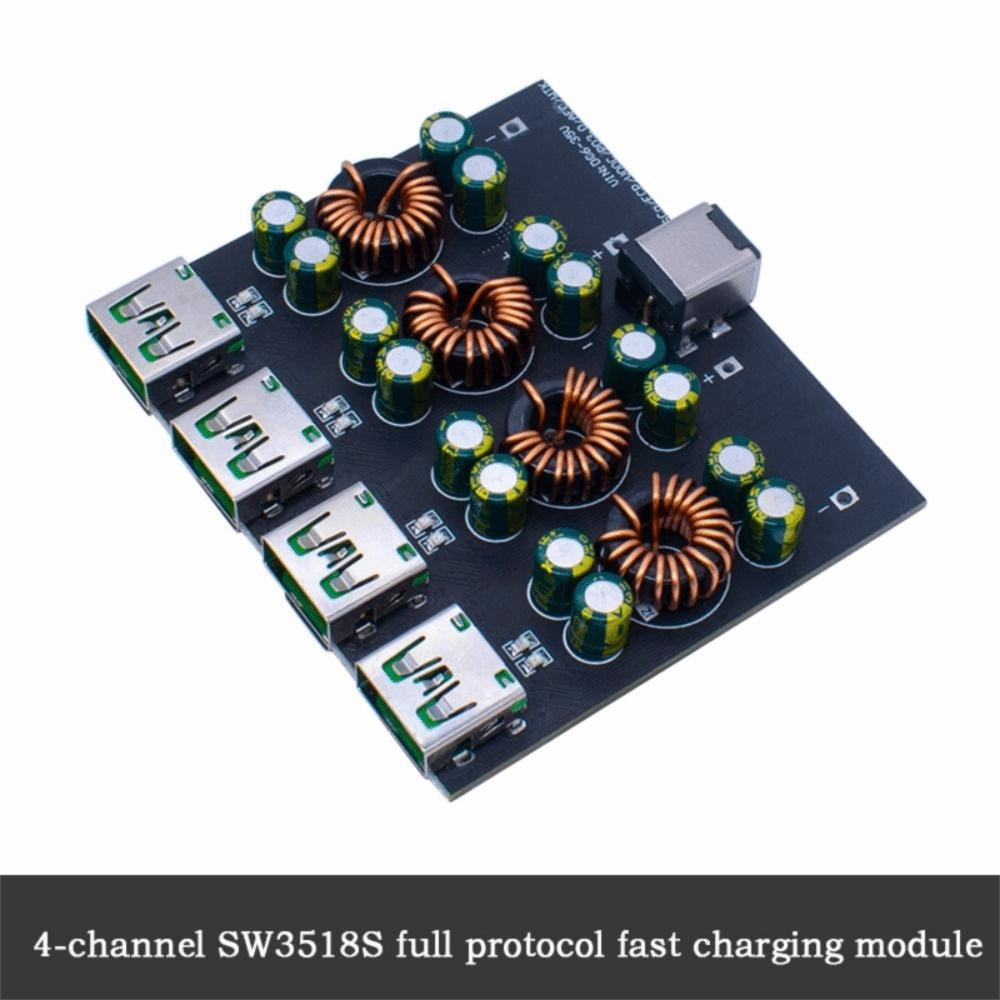

The module adopts SW3518S and supports the vast majority of mobile phone models on the market Supports OPPO's DASH fast charging Product Introduction Two-channel volume (64*36.5*12mm) Four-channel volume (73*64*12mm) 2. If used in conjunction with a 12-volt power adapter, it can be used for fast charging of daily mobile 3. It can also be powered by batteries, solar panels, DC wind turbines, etc 4. Dual-purpose in one device, a great helper in outdoor, vehicle-mounted, and long-term power outage situations 5. This is something that mobile phone chargers and power banks cannot achieve 6. Keeping one at home provides an additional charging method, which is more reassuring Product features Input voltage range: 6V Output voltage: Default value is 5V; After triggering fast charging, it automatically adjusts between 3 and 12V Output power: 24W (5V3.4A; 9V2.5A; 12V2A, etc.) Wired compensation function for output voltage. Conversion efficiency: 90% to 97% Supports multiple fast charging protocols Input overvoltage and undervoltage protection Input overcurrent protection Output overcurrent and short-circuit protection Whole-machine over-temperature protection Supports fast charging protocol Supports fast charging protocols FCP/SCP Supports the fast charging protocol AFC Supports Spreadtrum Fast Charging Protocol SFCP Supports Qualcomm QC2.0 and 3.0 Supports MTK PE1.1/PE2.0 "Application The solar panel charges the mobile phone Vehicle-mounted charging transformation Power supply for dashcam Renovation of household power supplies and smart power strips Fast charging adapter Precautions For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, be sure to use a USB meter with low internal resistance! Otherwise, it will affect the charging current! 2. The TYPE_C port is used for output charging. Charge your mobile phone or laptop with the C-TO-C/TYPE_C dual-head data cable! 3. OPPO phones need to be charged via the USB port! Protocols such as QC4+/QC4.0/PD3.0 must use the TYPE_C port! 4. When the supply voltage is higher than 21 volts, the PD protocol at port C supports a maximum output of 20V3A. The module is relatively small in size. Please ensure good ventilation and heat dissipation when using it for laptops with PD charging! 5. When both the USB port and the TYPE_C port are plugged into a mobile phone, both ports will output 5V!
