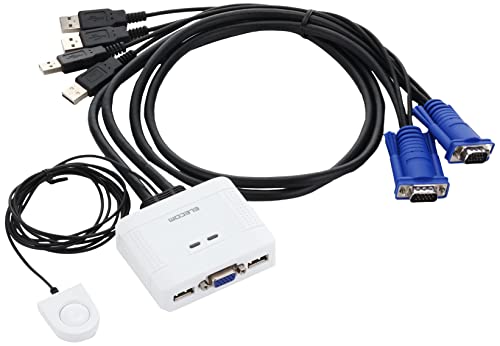

Elecom USB-to-USB PC Switch KVM-KUSN

【Specifications】 ■Compatible Models (OS: Windows): Windows machines running Windows 11/10/8.1/8/7/Vista/XP(~SP2)/2000(~SP4)/Me/98SE/98/Server2016/Server2012R2/Server2008R2/Server2003/2000Advanced Server/2000Server ■Compatible Models (OS: Mac): Intel Mac machines running Mac OS X (10.3 or later)/macOS (10.12 or later), PowerPC machines running Mac OS X (10.0~10.5) ■Compatible Peripherals: USB devices: USB 2.0 or USB 1.1 compatible USB devices, Displays: Displays equipped with D-Sub15 mini ■Interface (PC side): USB A (male) x 4, D-Sub15 mini (male) x 2 ■Interface (Peripheral side): USB 2 x A (female), 1 x D-Sub15 mini (female) ■Maximum Resolution: 2048 x 1536 ■Switching Method: Handheld Switch ■Switching Sound: None ■Power Supply: Bus Power ■Rated Voltage: 5V ■Maximum Power Consumption: 130mW ■External Dimensions: Main Unit Size: Width 78.4mm x Depth 62.4mm x Height 24.5mm / Cable Length: Main Unit - D-sub Connector 0.9m (including connector), Main Unit - Handheld Switch 1.8m (including switch) ■Weight: 305g (including cable) ■Accessories: Manual ■Warranty Period: 1 year

【Description】 ■This USB PC switch allows you to share a set of various USB devices such as a mouse, keyboard, and printer, as well as a display, between two computers, whether laptops or desktops.

■Two USB devices and a display can be shared. Since the connection to the computer is via USB, it can also be used with laptops that do not have a PS/2 port.

■USB printers and USB hubs can also be shared. By connecting a USB hub, you can share three or more USB devices. *Please ensure the total power consumption of USB devices connected to the switch is 1500mW (300mA) or less.

■ Compatible with multi-function mice, keyboards, and keyboard/mouse sets with tilt wheel functionality and multiple buttons.

■ Easy switching with a convenient on-board switch.

■ Compatible with Macintosh computers, allowing switching between Macintosh and Windows PCs.

■ Compact, integrated cable design for neat and tidy installation.

■ Silent operation with no beep sound during switching.

■ LED indicator light clearly shows the current computer.

■ Caps Lock, Num Lock, and Scroll Lock settings are retained even when switching computers.

■ No driver installation is required; simply connect and use.

Easy switching with just a press of a switch. A USB PC switch that allows you to share various USB devices between two computers. Since the computer side also uses a USB connection, laptops can also be switched.

This switch allows you to share two USB devices and a display. Since it connects to your computer via USB, it can also be used with laptops that lack a PS/2 port.

USB printers and USB hubs can also be shared. By connecting a USB hub, you can share three or more USB devices. *Please ensure the total power consumption of USB devices connected to the switch is 1500mW (300mA) or less.

It can also be used with multi-function mice, keyboards, and keyboard/mouse sets featuring tilt wheels and multiple buttons.

Switching is easily done with a convenient on-board switch.
