Description:

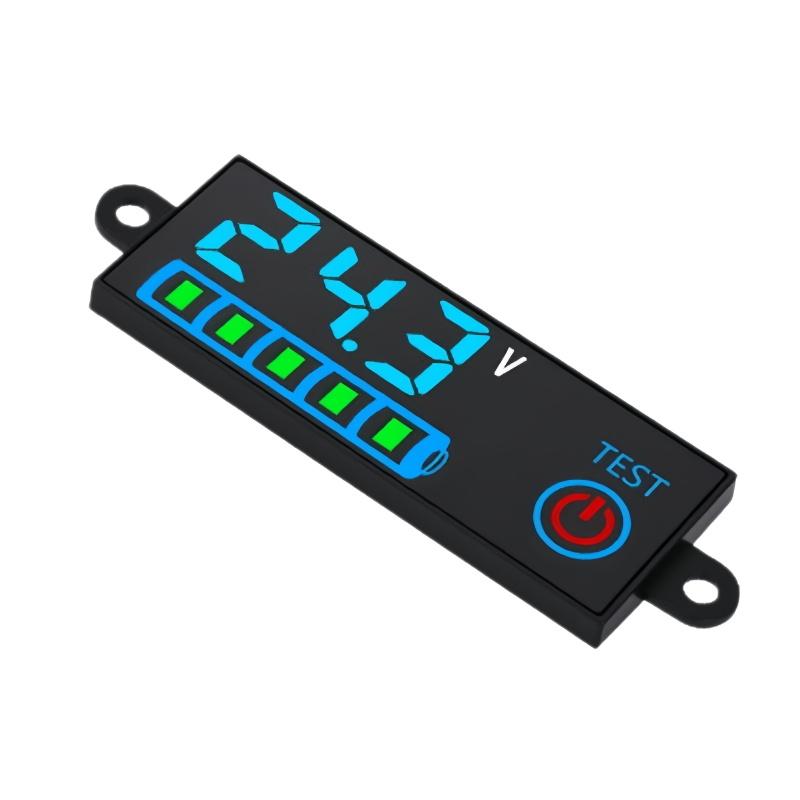

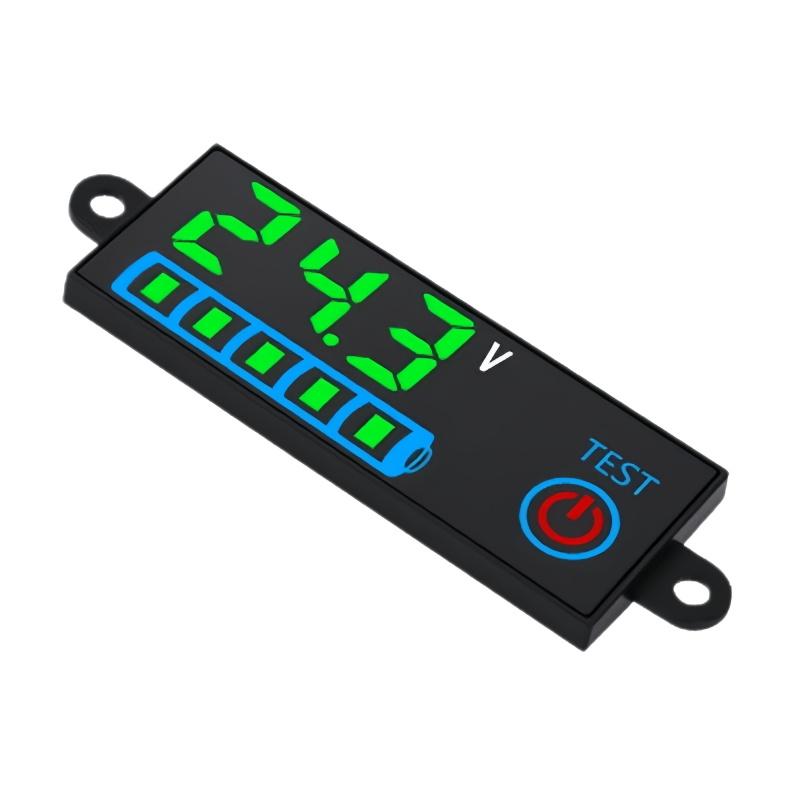

3S-14S DC7-55V Acid/Lithium Universal Battery Charge Indicator Board Battery Level Indicator Voltage Battery Charging Tester
Features:
1. Low Voltage Alarm: A red lightning symbol flashes when battery power is critically low.
2. Custom Settings: Adjust high/low voltage thresholds to define full-charge and fully-discharged voltage levels.
3. Display Backlight Timer: Built-in adjustable backlight timer with options for constant-on or timed operation
4. Power-Off Memory Function: Automatically saves current charge data even during unexpected power interruptions
5. Wide Battery Compatibility: Supports ternary lithium, iron phosphate, lead-acid batteries, and more—suitable for electric vehicles and applications
Specifications:
Voltage measurement range: DC 7-55V (Red display: DC 7-40V)
Operating current: ≤20mA
Display type: LED
Display colors: Red, green, blue, white (optional)
Default voltage display upon initial power-up: L03S ternary lithium battery (L03)
Ternary lithium battery L measurement: 3S~12S
Lithium iron phosphate battery F measurement: 3S~14S
Acid battery P measurement: 12V/24V/36V/48V
Product size: 40*15*3mm
Material: Plastic+Metal
Package include:
Battery indicator*1
Note:
1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.
2. Please allow slight manual measurement deviation for the data.
