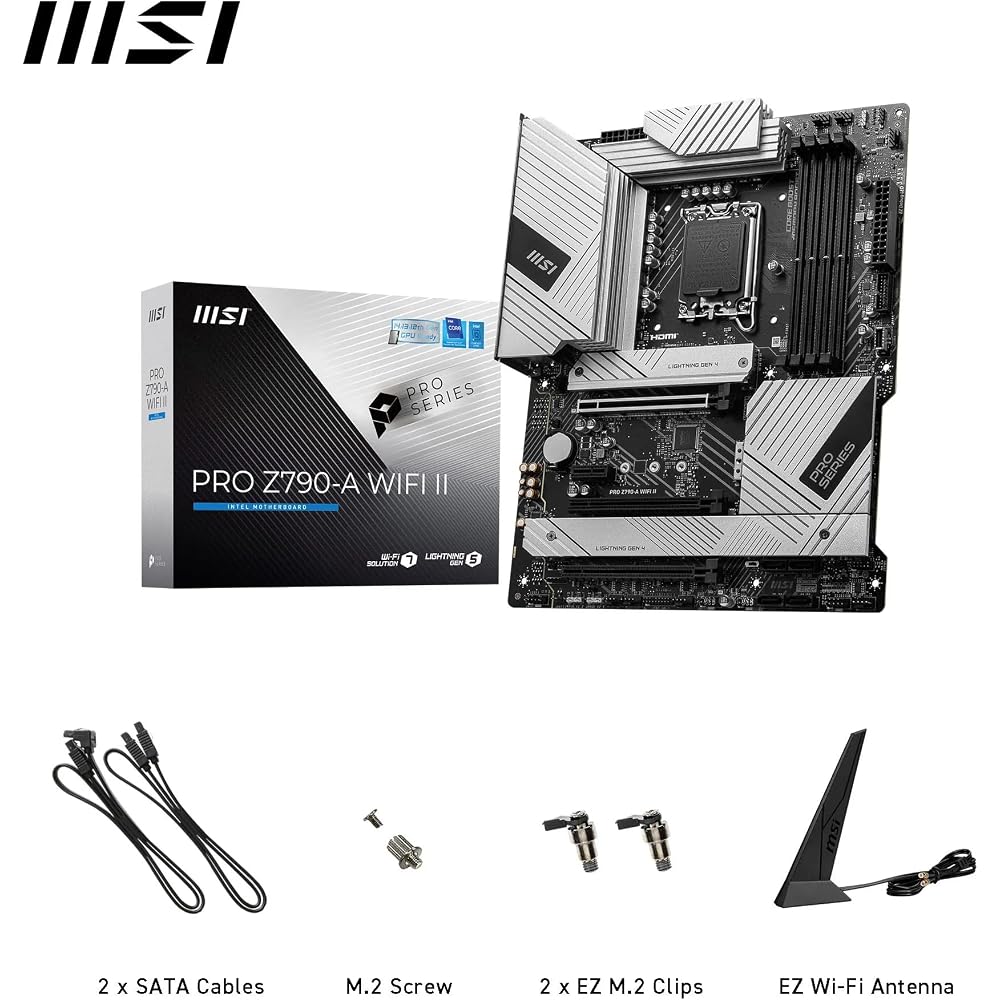

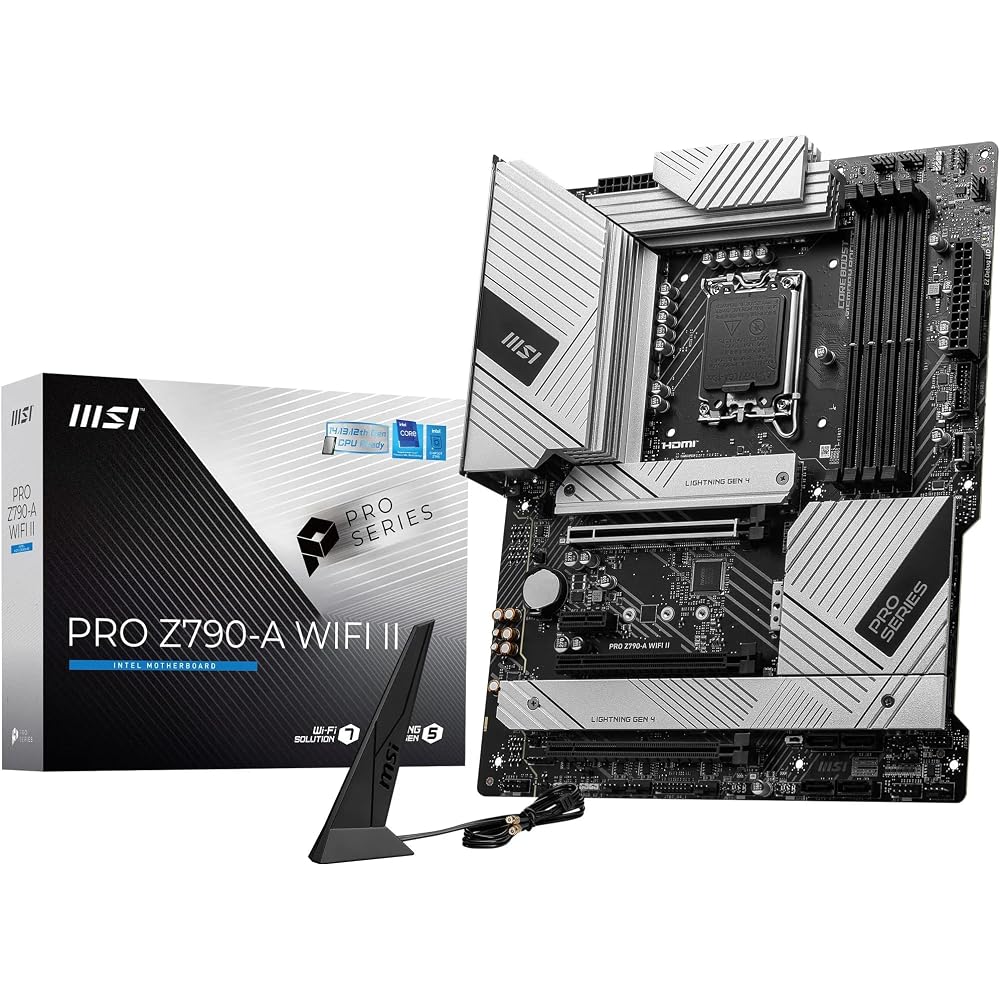

MSI PRO Z790-A WiFi II ATX Motherboard - Supports Intel Core 14, 13th and 12th Generation Processors, LGA 1700-80A SPS VRM, DDR5 Memory Boost 7800+MT/

MSI

The Intel Core 14th Generation - PRO Z790-A WIFI II (ATX) motherboard features a 16-duet rail power system (80A, SPS) VRM for the Intel Z790 chipset (LGA 1700, Intel Core 14th, 13th, and 12th Gen). The VRM utilizes MSI Core Boost technology for enhanced performance.

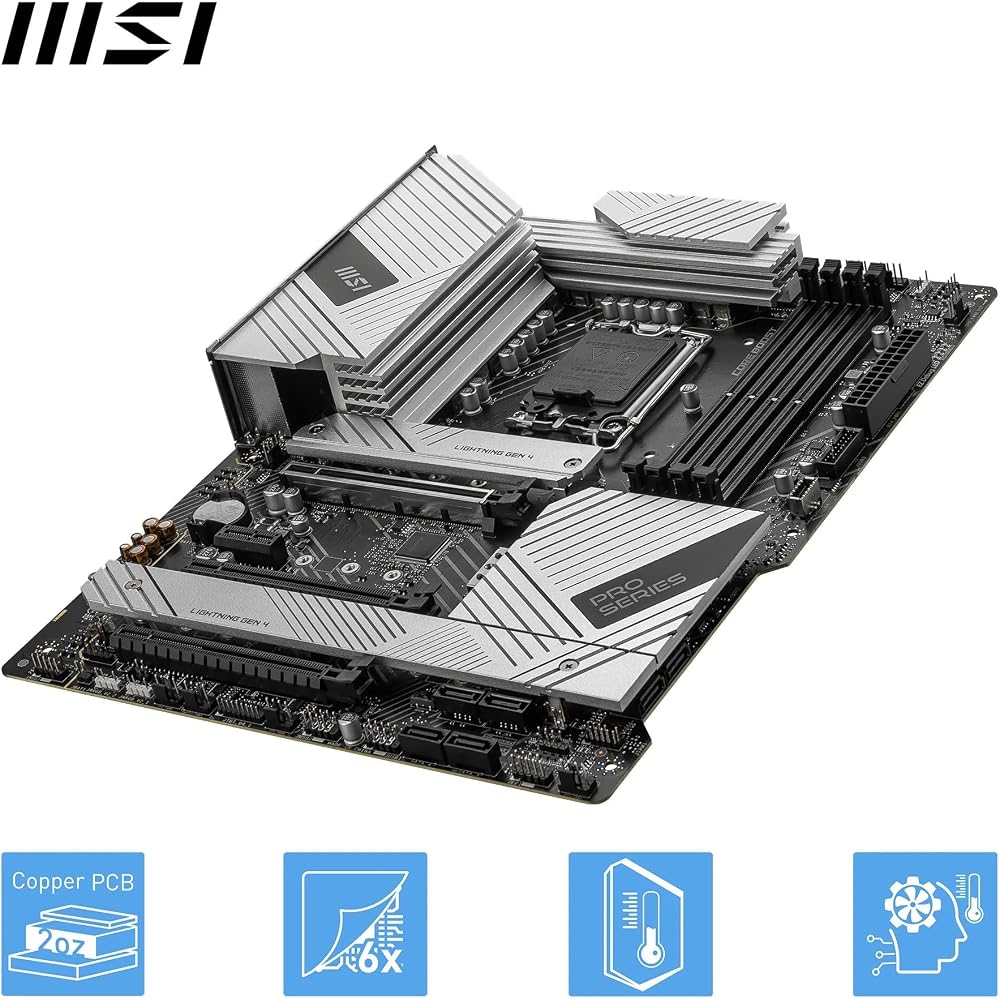

Integrated Cooling - VRM cooling features a 7W/mK MOSFET thermal pad and extended heatsink. Includes chipset heatsink, M.2 Shield Frozr, dedicated pump fan cooling header, 6-layer server-grade PCB, and 2oz thick copper.

DDR5 Memory, PCIe 5.0 Slots - Four DDR5 DIMM slots (1DPC 1R, 7800+ MT/s) with memory boost isolation circuitry for overclocking. The primary PCIe x16 slot supports PCIe 5.0 (128GB/sec) and features steel armor.

Four M.2 Connectors - Storage options include four M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling during ultra-fast SSD access.

Wi-Fi 6E Connectivity - Network hardware includes a Wi-Fi 6E module with a BT 5.3 & 2.5Gbps LAN controller. Rear ports include USB 20Gbps Type-C, HDMI 2.1, DP 1.4, 7.1 USB High Performance Audio, and Audio Boost 5 (with S/PDIF output support).
