Ayzeze: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----
Speed Limit Removal Procedure: Press and hold the brake pedal, then press and hold the downshift button for 10 seconds to toggle the speed limit switch.
Default Speed Limit Values: When speed limited, maximum speed in gear 1 is 10km/h, in gear 2 it is 15km/h, and in gear 3 it is 25km/h; when not speed limited, maximum speed in gear 1 is 15km/h, in gear 2 it is 30km/h, and in gear 3 it is 55km/h.

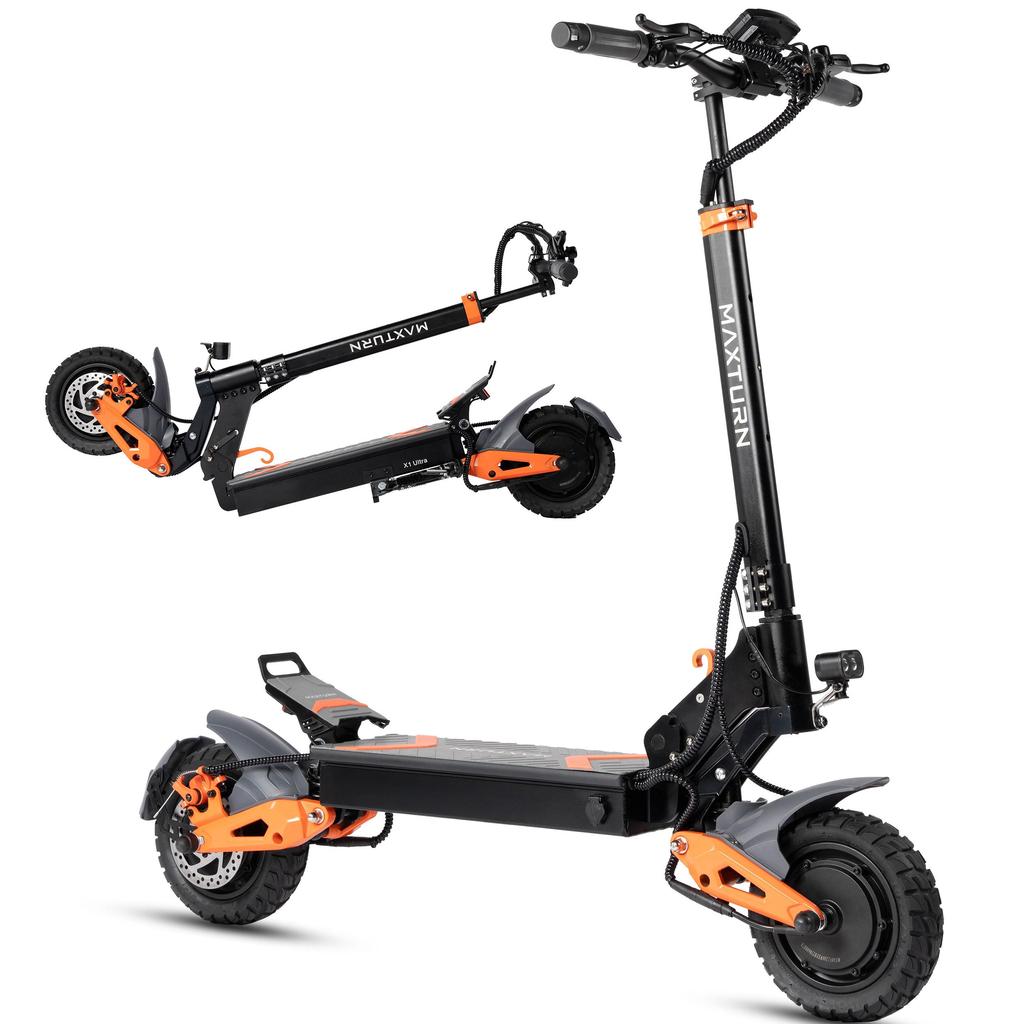

Outer Box Dimensions: 128*24*46mm
Gross Weight: 38.15KG
Net Weight: 33.3KG
Unfolded Dimensions: 1300*670*1360mm
Folded Dimensions: 1300*670*620mm
Crossbar Dimensions: 670mm
Step Dimensions: 490*190mm
Step to Crossbar Height: 830-1000mm
Chassis Height 190mm
Maximum Load Capacity: 120kg
Maximum Speed: 55km/h
Speed Adjustment: 6/15/30/55
Mid-speed Range: ≤75km
Climbing Ability: ≤25°
Braking System: Front and Rear Disc Brakes - Power-off Brake
Braking Distance: 5-12m
Waterproof Rating: IP54
Frame Material: Aluminum Alloy/Forged Parts
Motor Type: Hall Effect Brushless DC Motor (Single)
Motor Rated Voltage: 48V
Motor Rated Output Power: 1100W
Instantaneous Maximum Power: 1300W
Motor Rated Speed: 1260mph
Motor Maximum Output Torque: 43 N.M
Battery Type: 18650 Lithium Battery
Battery Rated Voltage: 48V
Single Cell Capacity: 2600mAh
Battery Pack Capacity: 20.8AH
Charger Input Voltage: 100-240VAC-50/60Hz
Charger Input Current: 3A Max
Charger Output Voltage: 54.6V
Charger Output Current: 3A
Charging Time: 6-7 hours
Front Suspension: Hydraulic Suspension
Rear Suspension: Hydraulic Suspension
Headlights: Eagle Eye Certified Headlights
Headlight Power: 6W
Headlight Illumination Area: 5㎡
Turn Signals: Yellow Spotlight Strobe
Taillights: European Version Brake Strobe
Front Wheels: 10-inch Tubeless Tires
Rear Wheels: 10-inch Tubeless Tires
Tire Pressure: 340kPa (50psi)
Stem Tube Handlebars: Non-foldable
Body: Foldable
Display: LED Screen
Features: Foldable, with Seat, Large Instrument Panel
Can it be turned on while charging? No
