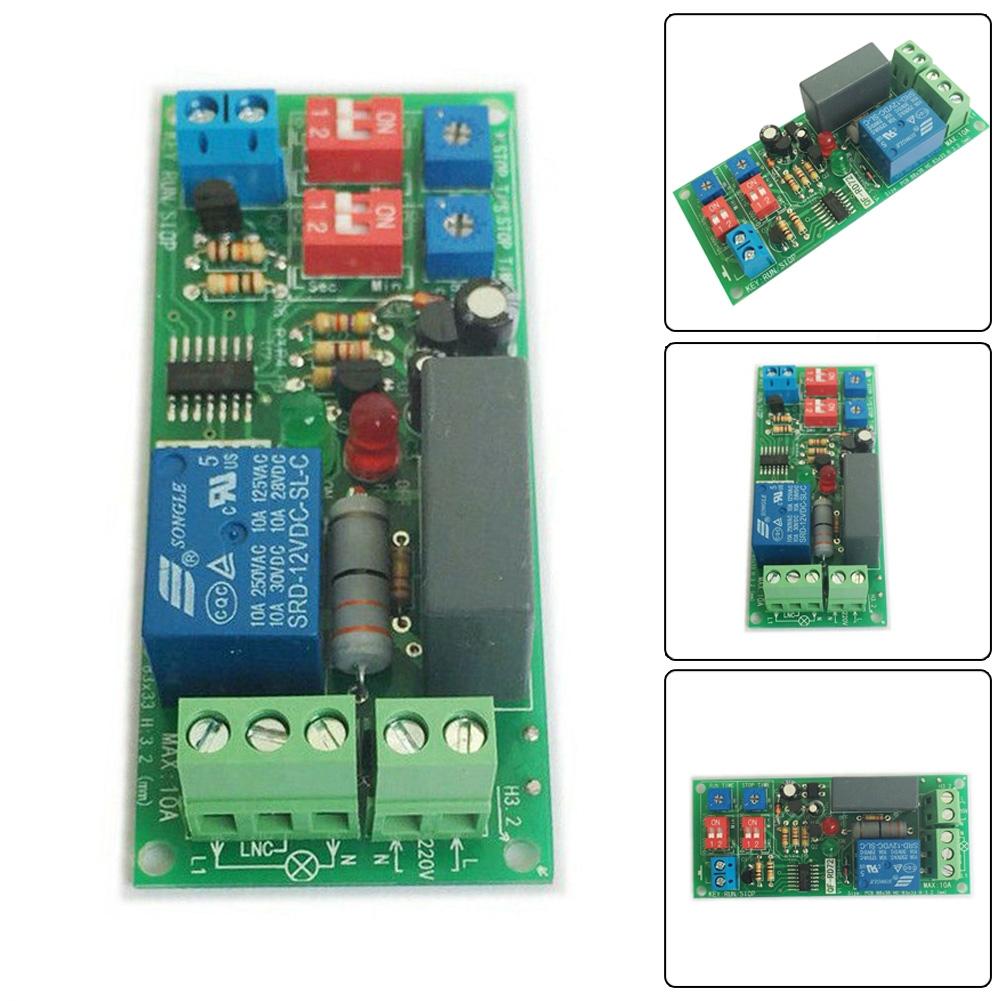

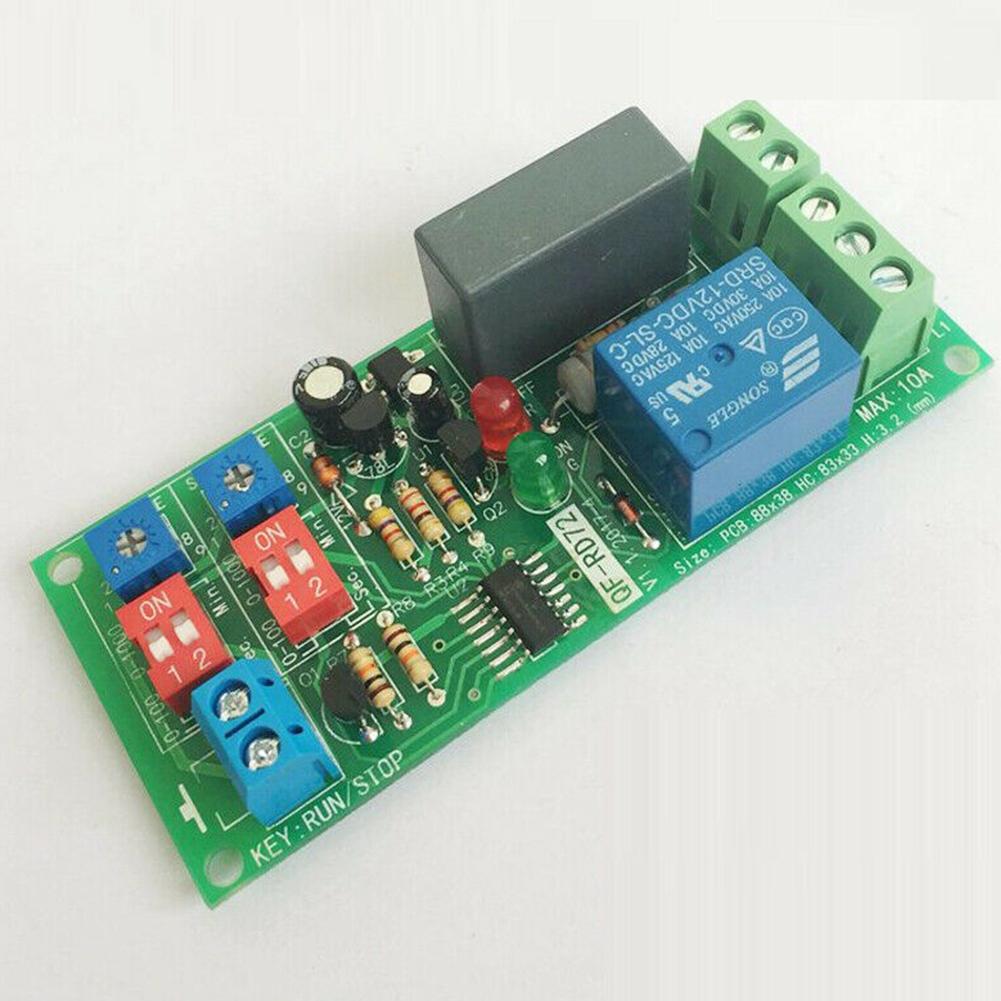

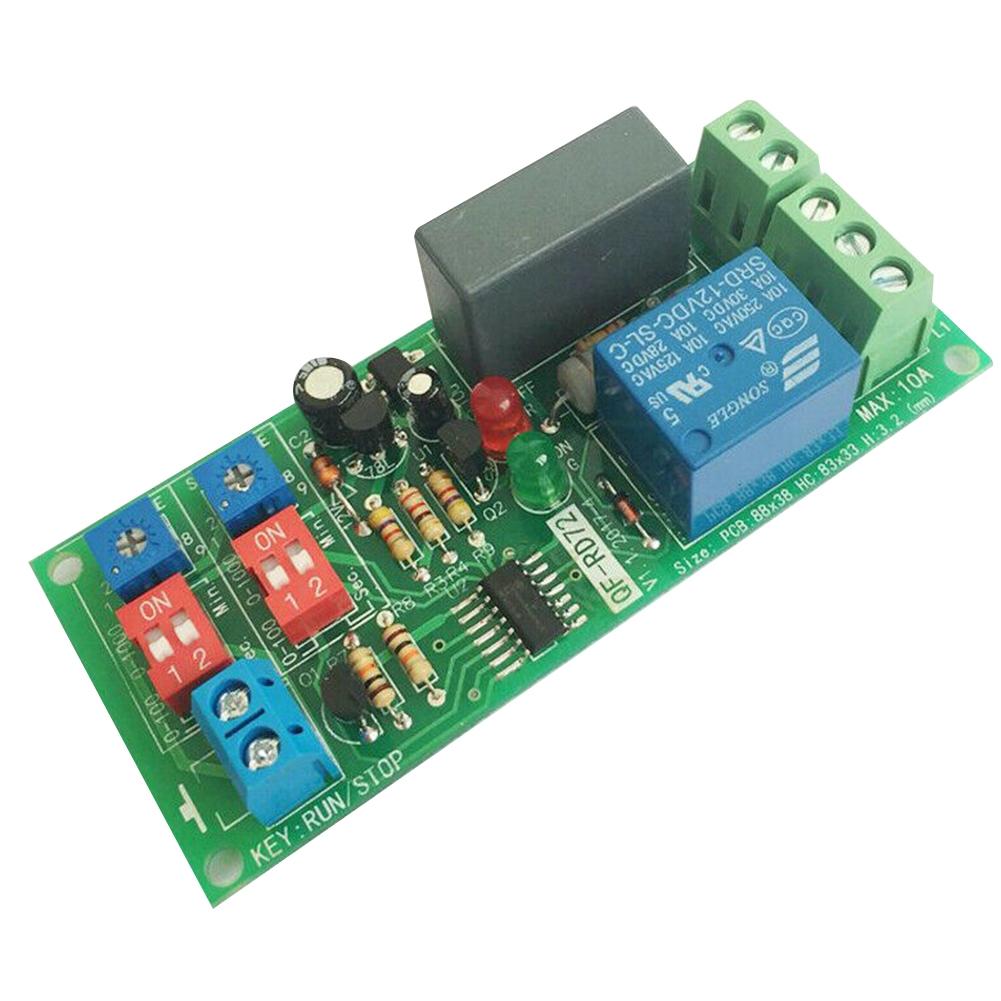

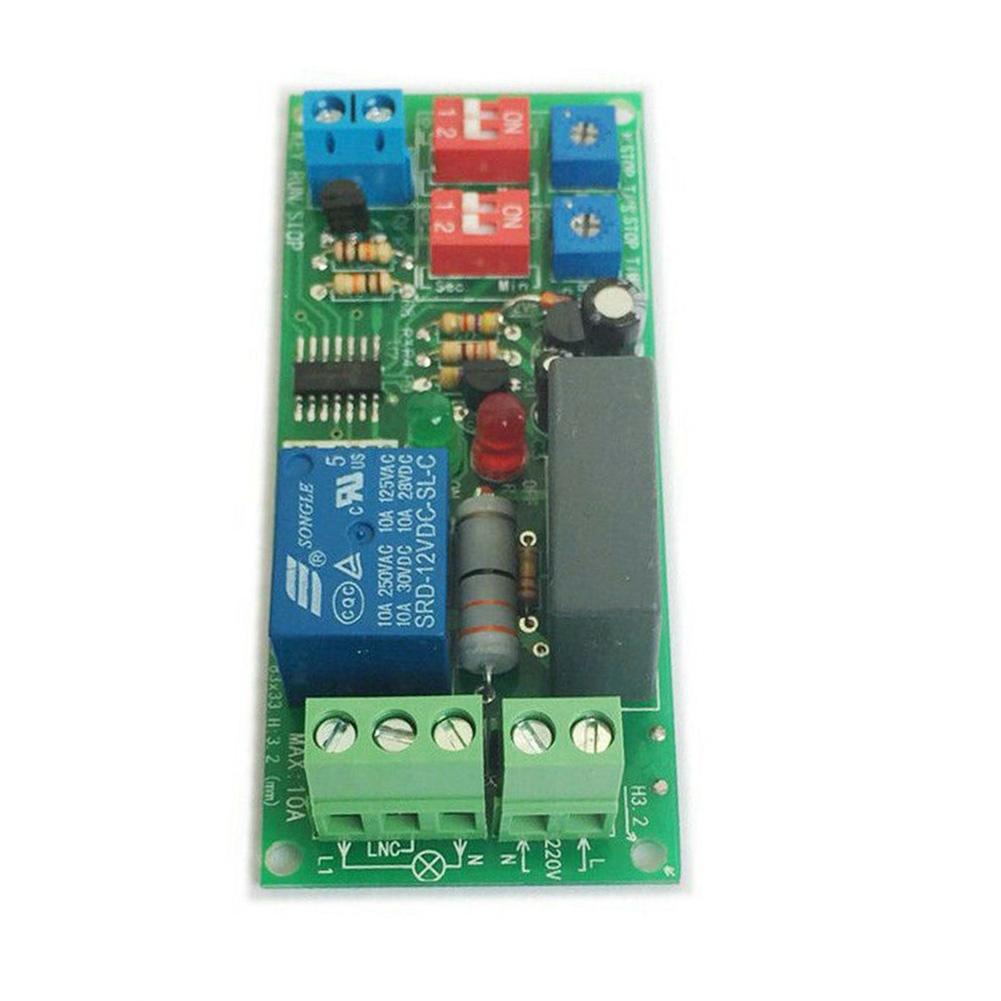

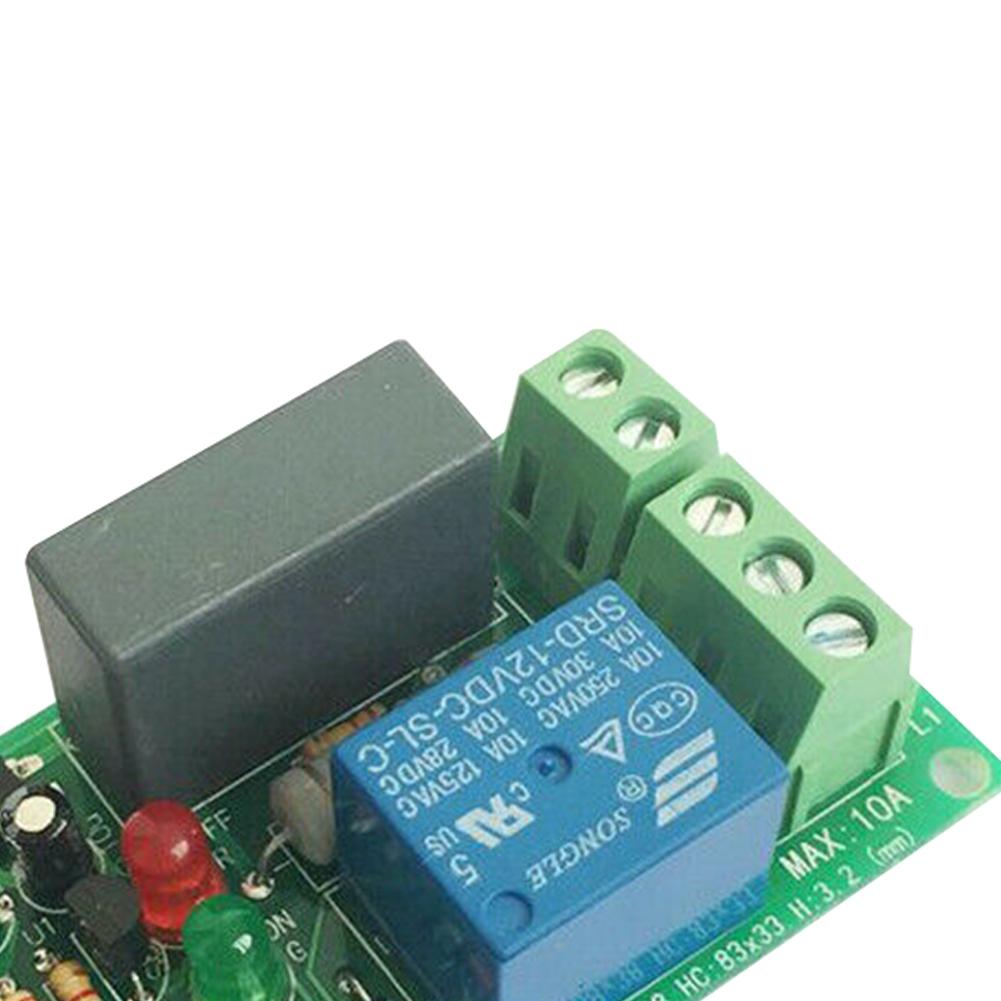

AC110V 120V 220V Timer Infinite Loop Delay On/Off Time Relay Switch
With start/stop function, the enters infinite loop mode after startup, and the relay is in accordance with the
set time.
for scope:
Voltage: AC 100V-250V, can be used for 100V/110V/120V/127V/220V/230V/240V power supply.
Power consumption: LNC L line output is normally closed, generally not connected.
Instructions:
1.ON time setting:
The potentiometer adjustment time is marked under RUN TIME, clockwise is to increase the length,
Decrease time counterclockwise.
The potentiometer DIP switch is set to the left time range. The adjustable range of adjustable resistance is 0-100;
The for dial range is 0-1000.
The potentiometer DIP switch unit is set correctly. for dial to seconds. Seconds indicate units; for dial to Min. to
The indicated unit is minutes.
2.OFF time setting:
The potentiometer adjustment time is marked under OFF TIME, clockwise is to increase the length,
Decrease time counterclockwise.
The potentiometer DIP switch is set to the left time range. The adjustable range of adjustable resistance is 0-100;
The for dial range is 0-1000.
The potentiometer DIP switch unit is set correctly. for dial to seconds. Seconds indicate units; for dial to Min. to
The indicated unit is minutes.
3 Start button:
for Access the for reset button, click, switch to the green light, indicating the running state, the will automatically
Stop work according to the running time and time length setting, infinite loop. Click the start button again,
The will switch to a red light, indicating that it is in a stopped state.
4 Example of time setting:
Requirements: connect for 20 seconds, disconnect for 30 minutes, infinite loop.
set up:
(1). Set the running time range to 0-100;
(2) Set the running time unit to seconds;
(3) Turn the running time potentiometer to the left 20/100 position;
(4). Set the stop time range to 0-100;
(5) Set the stop time unit as minutes;
(6) Turn the stop time potentiometer to the position of 30, that is, the position of 30/100 from the left;
application:
For cyclic controls, or equipment, product burn-in testing repeats power up/down.
notes:
1. If you need to start the button, the button capacity needs to be above 0.1A
2. AC power supply, pay attention to safety
