Features:
The three-dimensional photoelectric edge probe is a product with high- for edge measurement and other functions. It has the following advantages: higher alignment accuracy, repeatability up to 0.001MM; more comprehensive Z- measurement; probe, better accuracy for retention; greater probe oscillation to prevent probe damage caused by errors; no need to use the conductive principle, and measurement will not be impossible due to non-conductive materials or machine tool spindles.
Applicable range Metal Bakelite Plastic Measurement accuracy 0.001 Repeat positioning accuracy 0.001
Specifications:

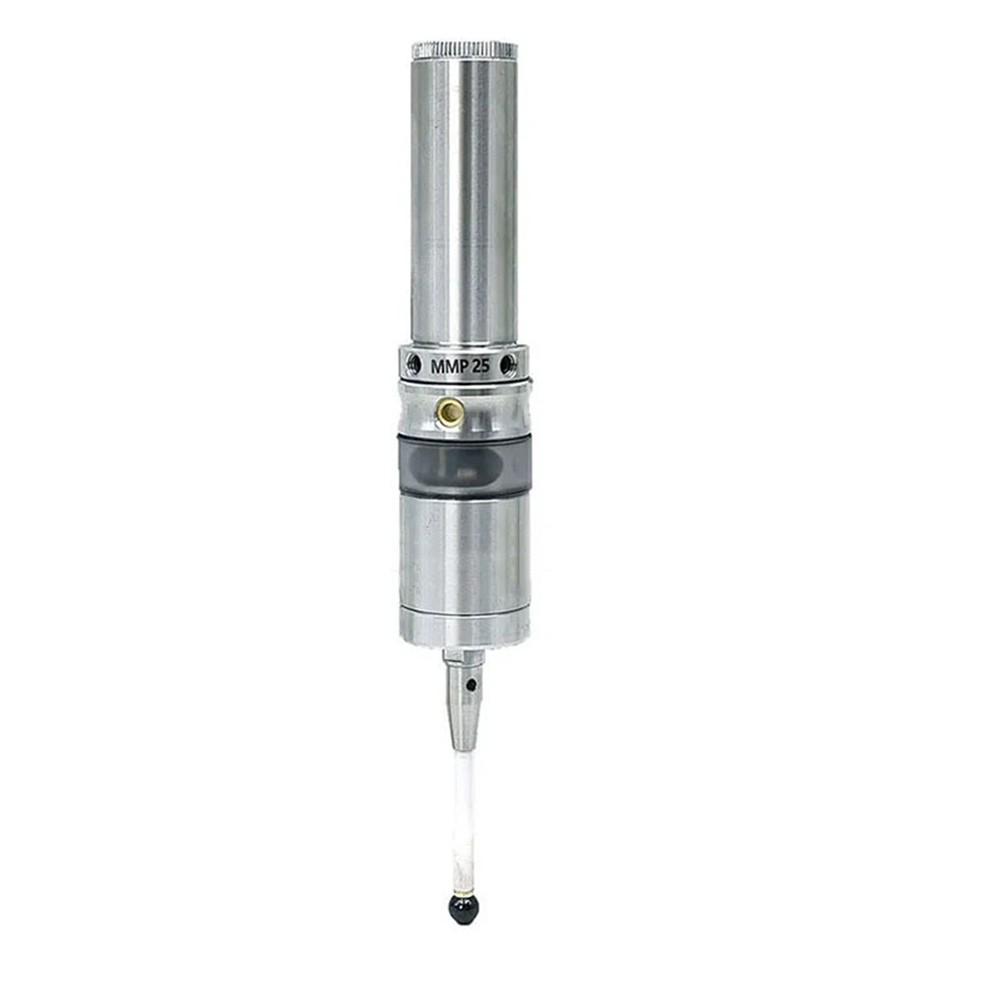

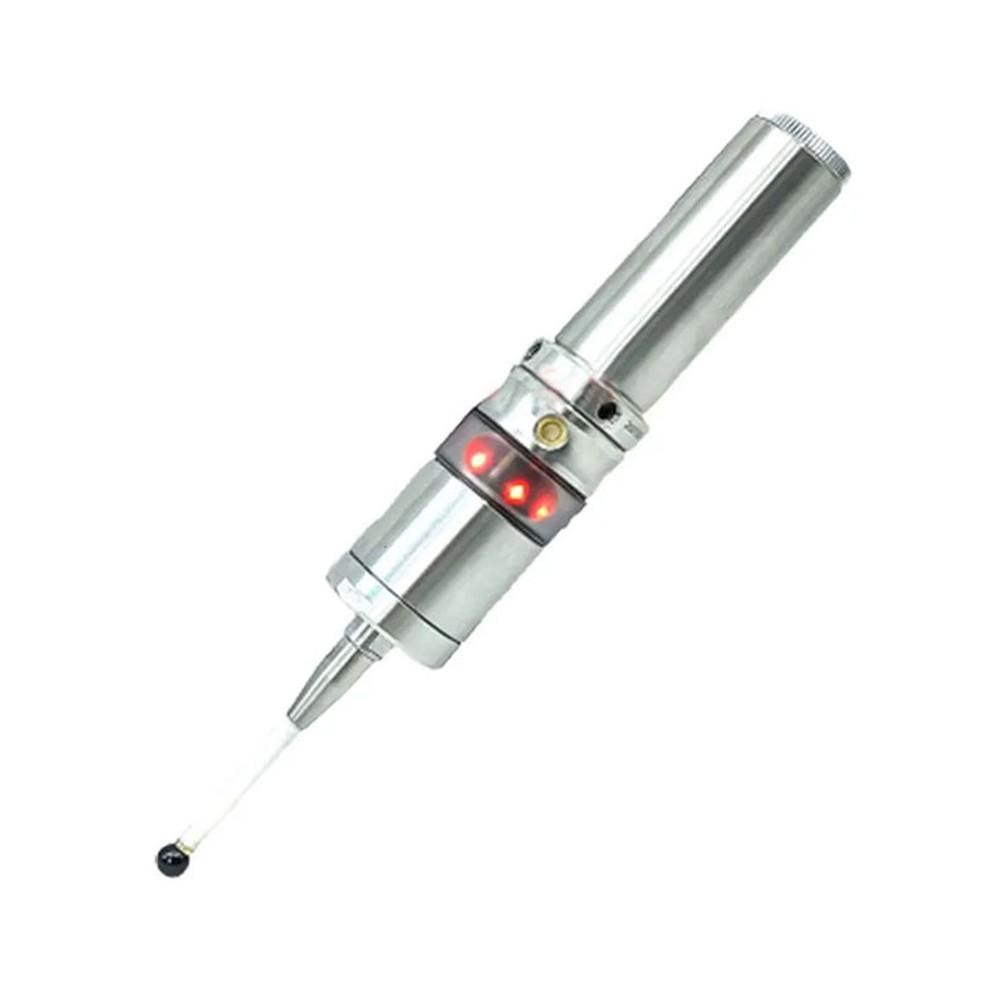

Part name: 3D photoelectric edge finder
Model: MMP25
Material: stainless steel
Color: as shown
Size: as shown
Measurement accuracy: 0.001mm
Repeat positioning accuracy: 0.001mm
Probe direction: ±X±Y +Z
Probe safety : XY±15°, Z+5mm
Power supply: 14250 / 3.6V
Trigger life: 5,000,000 times
for Scope of use: metal, bakelite, wood, plastic, .
Usage :
How to use 3D photoelectric edge probe
According to the position of the workpiece to be measured, move the probe to the workpiece position and approach the workpiece in a step-by-step approach.
Package content:

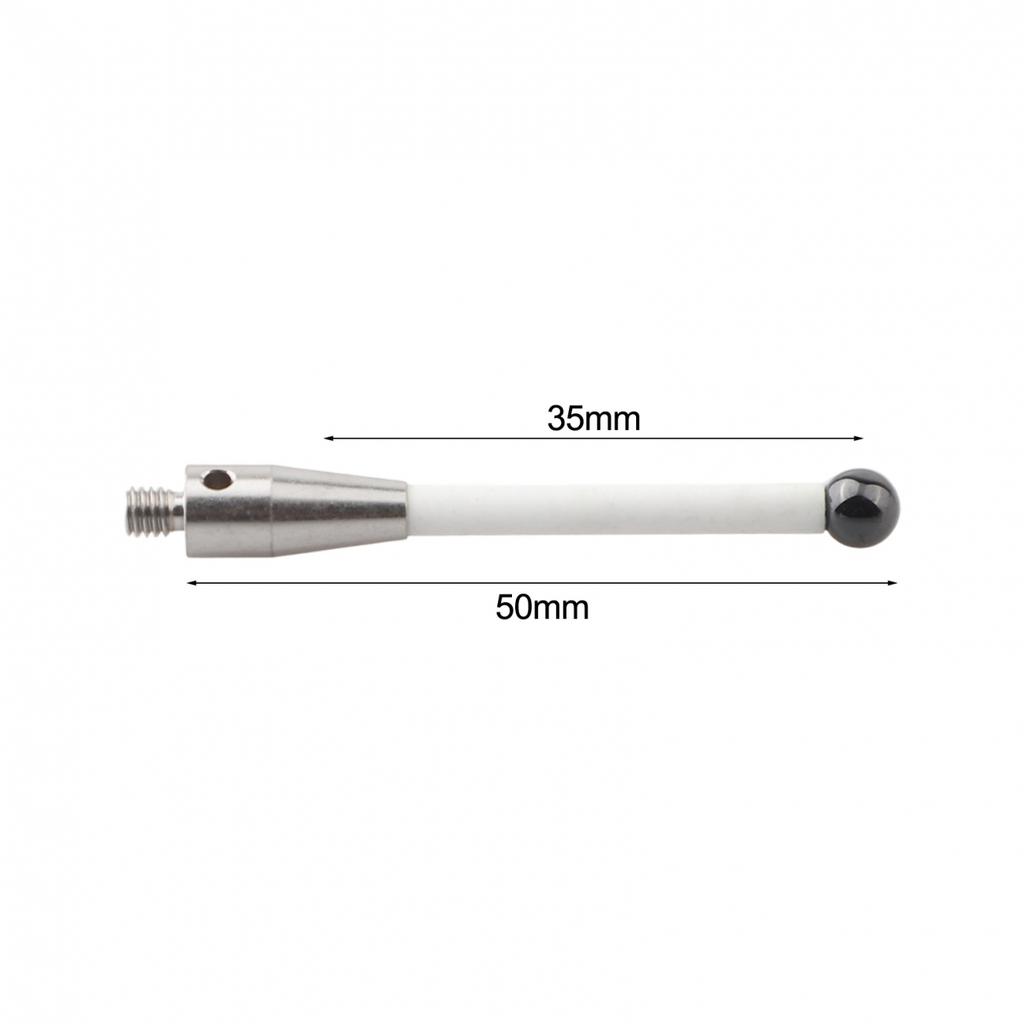

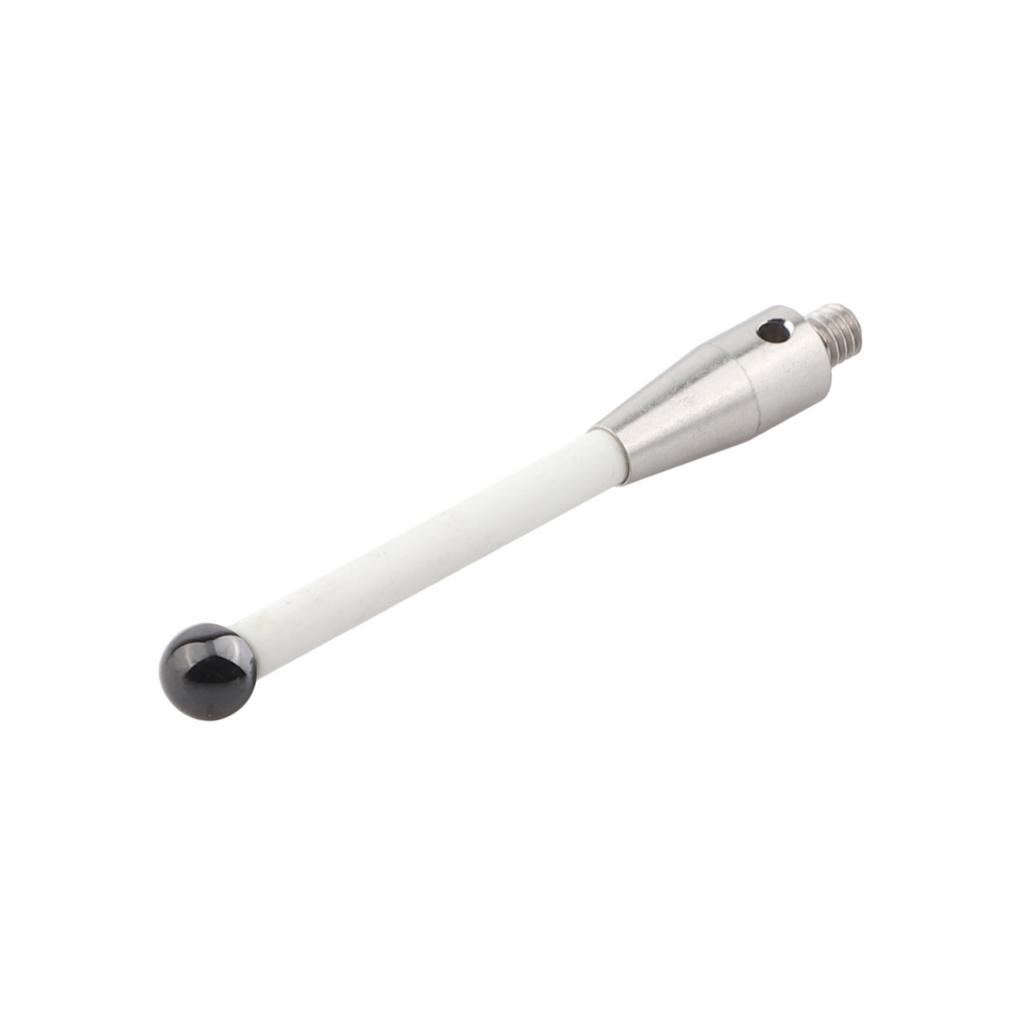

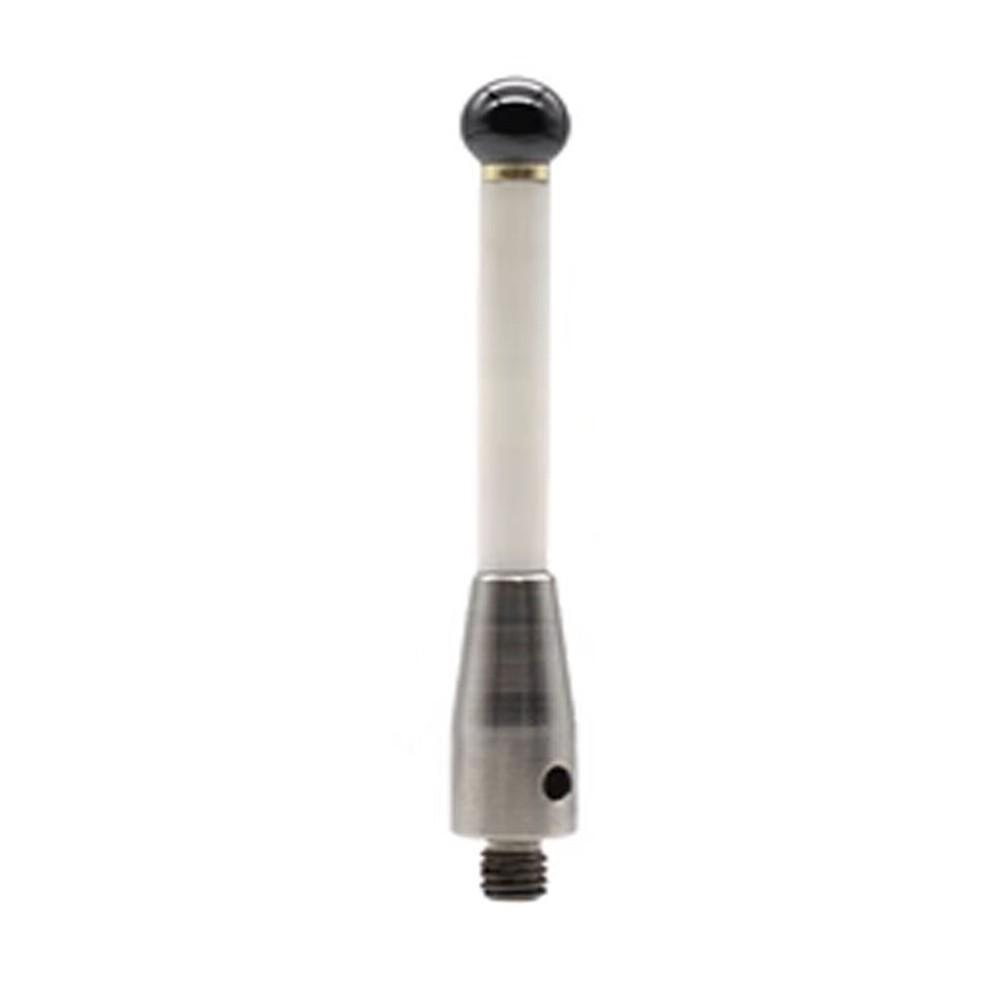

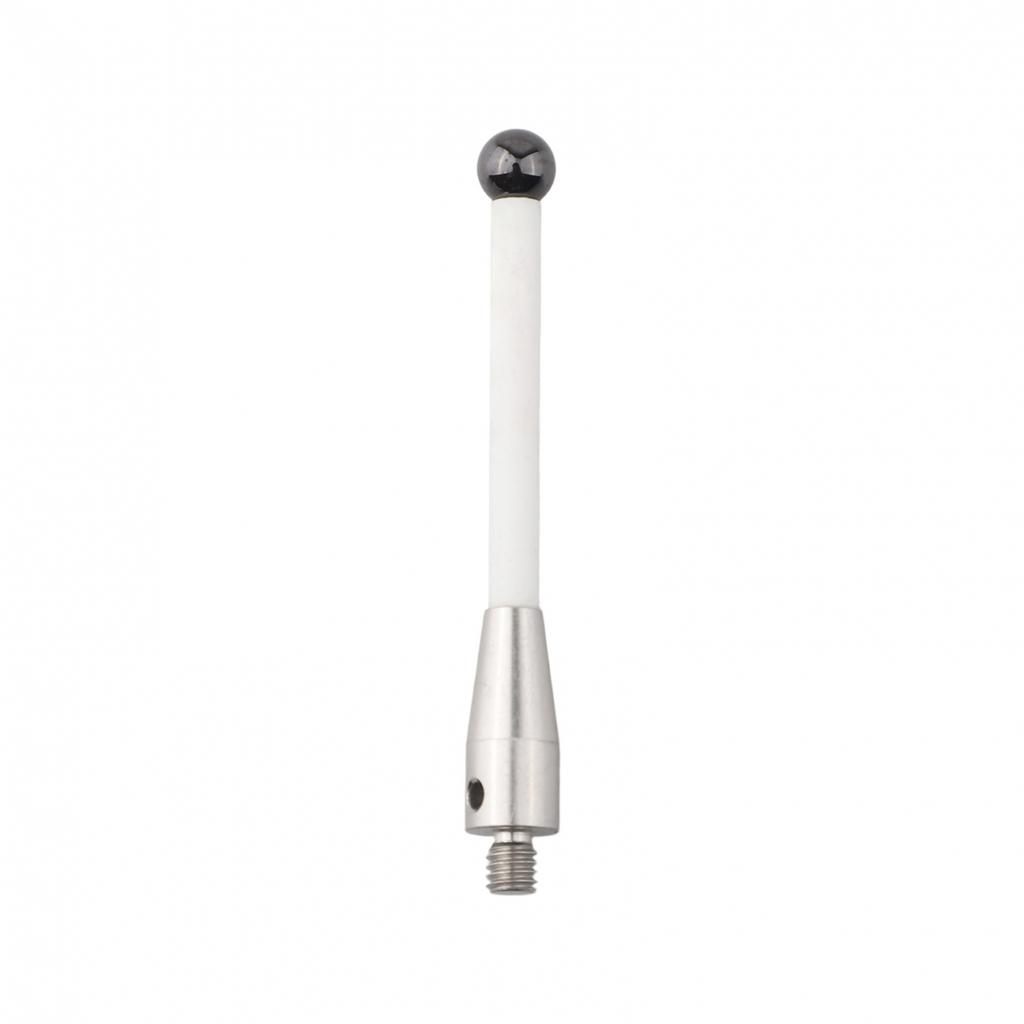

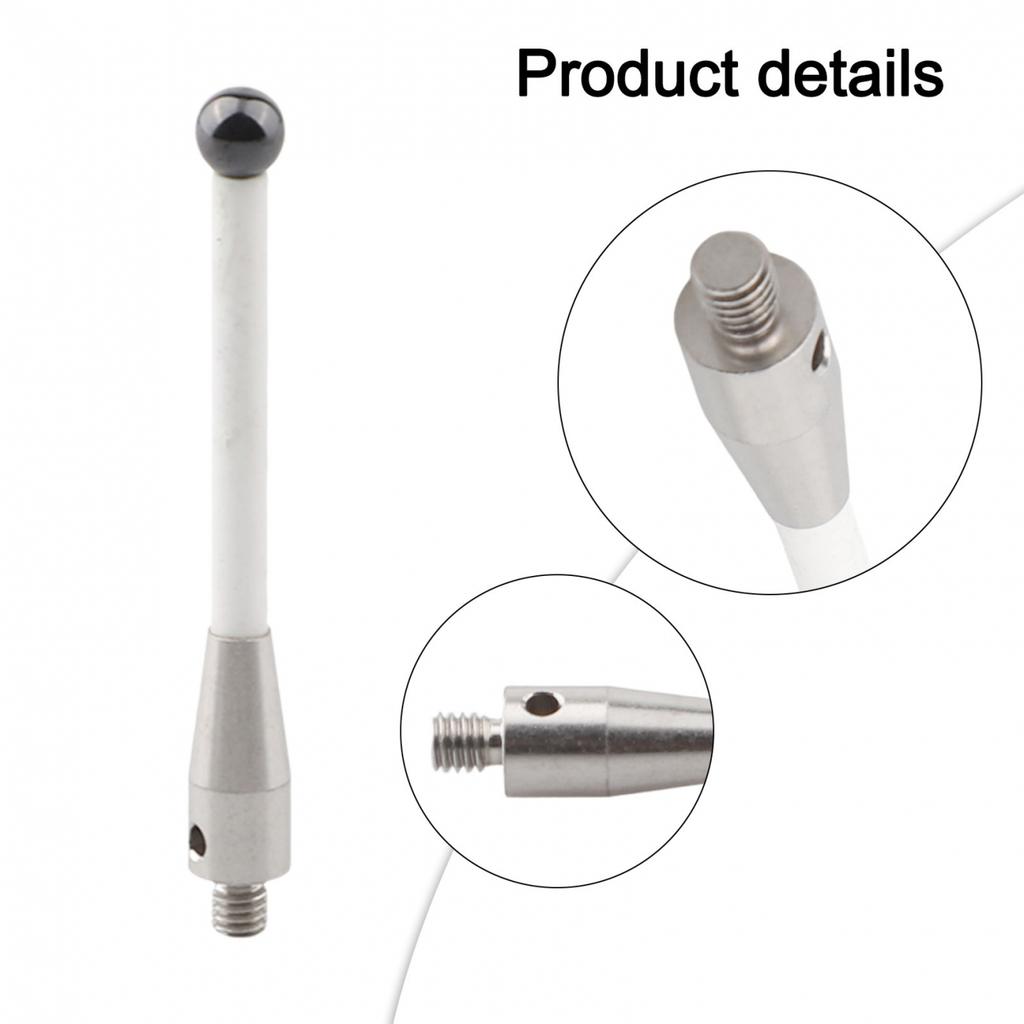

A: 1*probe (just the probe)
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
B: 1*MMP25 edge finder
