2-Channel Isolated CAN Bus Extension for Raspberry Pi

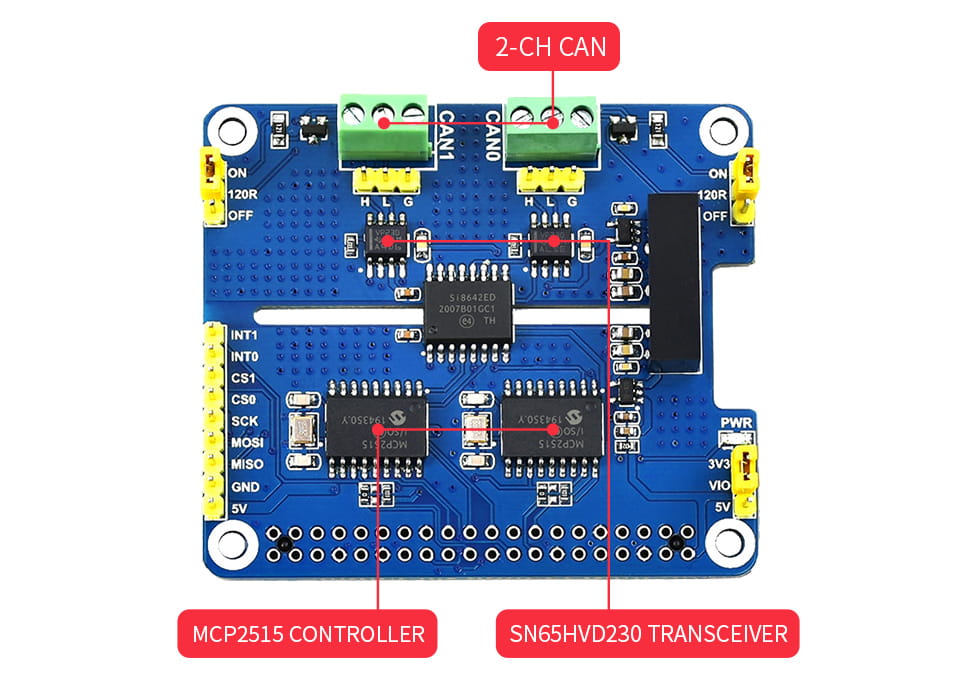

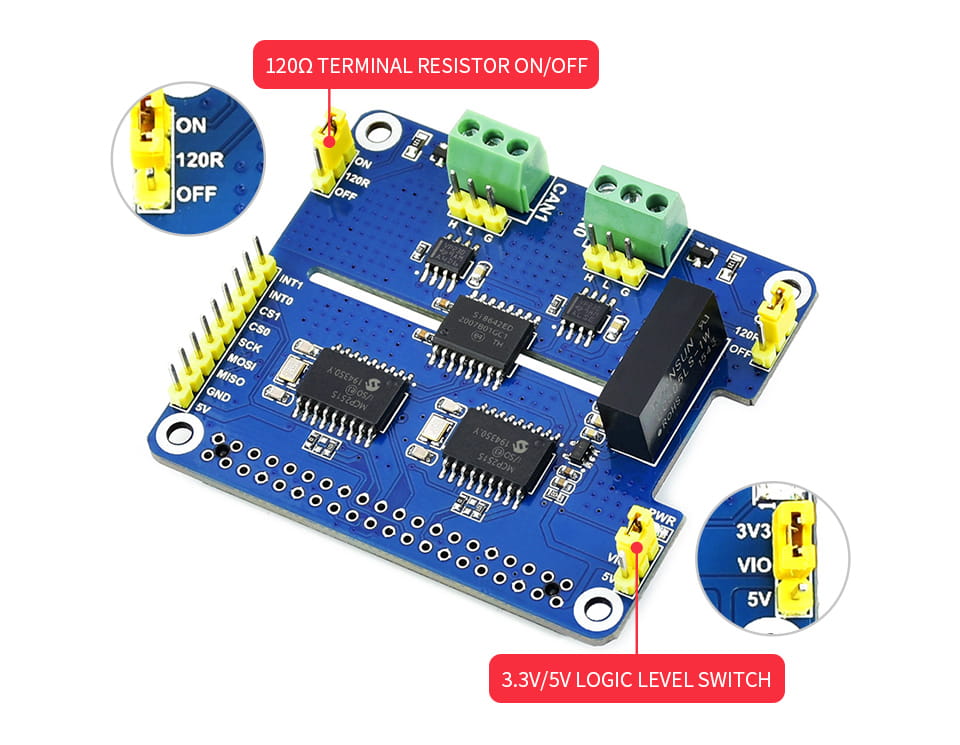

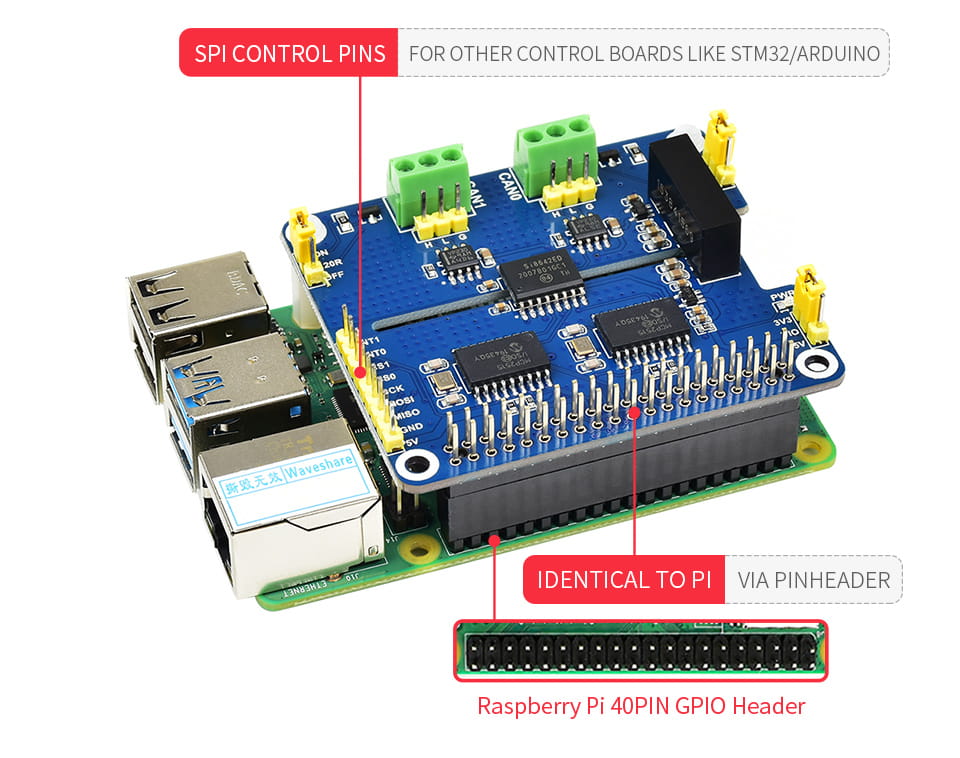

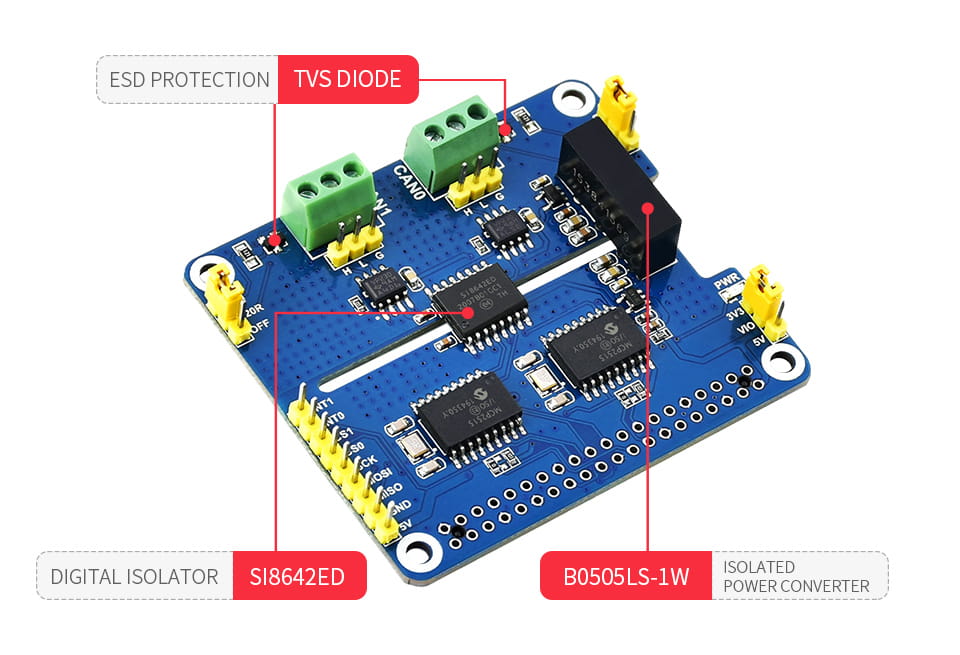

2-Channel Isolated CAN Bus Extension for Raspberry Pi. This extension is specifically designed for Raspberry Pi users who require stable and secure dual-channel CAN bus communication. Utilizing the MCP2515 and SN65HVD230 chips and digital signal isolation, this module delivers high quality and performance. Module features: 2-channel CAN communication ensures optimal conditions for data transmission Power supply isolation ensures stabilization of the isolated voltage, eliminating the need for additional interface power supply Digital signal isolation ensures greater security, stability, and immunity to interference Installed TVS diodes provide protection against electrostatic discharges and overvoltages Built-in 120Ω terminating resistors adapt to various settings Additional SPI connector enables cooperation with other systems Specifications: CAN controller MCP2515 CAN transceiver SN65HVD230 SI8642ED digital isolator RT9193-33 power supply B0505LS-1W power supply isolation module SM24CANB TVS diodes Standard Raspberry Pi 40PIN GPIO connector CAN bus connector SPI interface connector for use with other microprocessor modules Selectable 120Ω terminating resistors Selectable voltage levels of digital signals 3.3V/5V Power indication CAN bus controller MCP2515 Supply voltage: 5V CAN bus transceiver SN65HVD230 Digital signal voltage levels: 3.3V/5V SPI control bus Dimensions: 65 × 56.5 (mm) Thanks to the functionality and reliability of this 2-channel isolated CAN bus extension for Raspberry Pi, you will be able to effectively develop your Raspberry Pi-based projects and applications. What will you find on the board? CAN Controller MCP2515 CAN Transceiver SN65HVD230 Digital Isolator SI8642ED Power Supply RT9193-33 Power Isolation Module B0505LS-1W TVS Diodes SM24CANB TVS Standard Raspberry Pi 40PIN GPIO Connector CAN Bus Connectors SPI Interface Connector for Use with Other Microprocessor Modules Selectable 120Ω Termination Resistors Selectable 3.3V/5V Digital Signal Voltage Levels Power Indication Dimensions: Wiki: 2-CH_CAN_HAT
