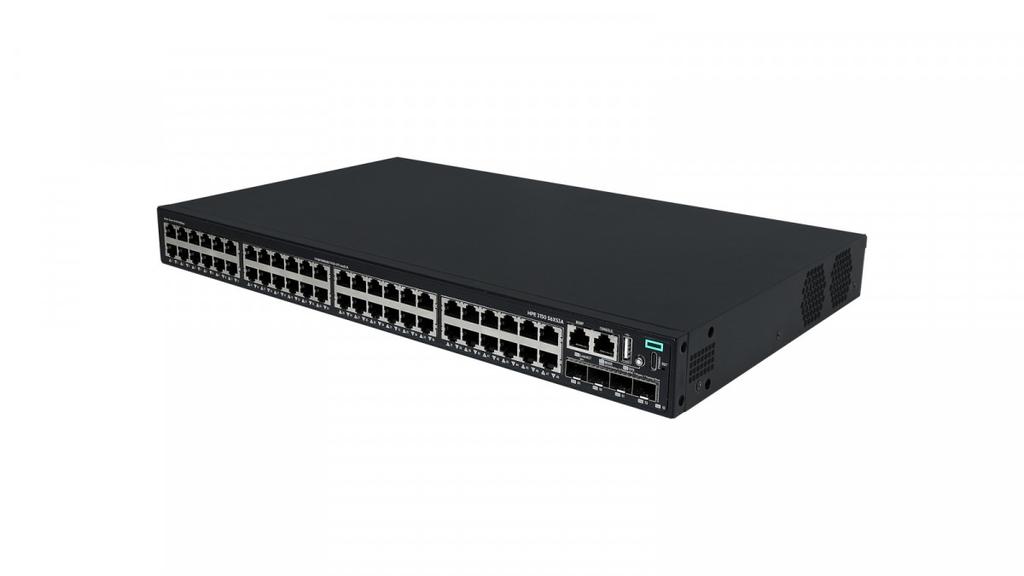

Switch NW CW 2150 48G PoE+ 4P 390W S6X53A

Switch NW CW 2150 48G PoE+ 4P 390W S6X53ASwitch NW CW 2150 48G PoE+ 4P 390W S6X53ASwitch NW CW 2150 48G PoE+ 4P 390W S6X53AThe HPE Networking CW 2150 Switch Series is a stackable Layer 3 access switch designed for business network environments. This model, identified as S6X53A, is intended for use in branch offices and small to medium-sized business networks where dependable wired connectivity is required.

With 48G PoE+ support and a 390W power budget, this switch is suitable for network setups that need both data and power delivery over Ethernet. It can be used in office infrastructure for connecting workstations, access points, IP phones, and other compatible network devices in a structured and organized way.

The stackable design supports flexible network expansion and helps simplify deployment in growing environments. Layer 3 access functionality makes the switch appropriate for networks that require routing capabilities at the access layer, supporting more advanced network organization and traffic handling.

The PoE+ capability is useful for installations where separate power sources are not practical for all connected devices. This can reduce cable complexity and make equipment placement more convenient, especially in offices, service areas, and network closets.

Built for enterprise branch and SMB use, the switch is designed for regular day-to-day network operation in professional environments. Its construction and feature set are focused on stable connectivity and long-term use in managed network installations.

Specifications: HPE Networking CW 2150 Switch Series Model: S6X53A Switch type: Stackable L3 access switch Port configuration: 48G PoE support: PoE+ Power budget: 390W Intended use: Enterprise branch offices and small and medium-sized business networksSwitch class: ManagedApplication: Medium and large companiesSwitch layer: L4Switch layer : L3Switch layer : L2Network architecture: GigabitEthernetNumber of 10/100 Mbps ports: NoneNumber of 10/100/1000 Mbps ports: 4810/100/1000/2500 Mbps ports: NoneNumber of ports 1G/2.5G/5G/10G: NoneNumber of 10Gb ports: 4Number of ports 25Gb: NoneNumber of 100Gb ports: NoneNumber of PoE ports (PoE & PoE+): NoneNumber of PoE+ ports: 48Number of PoE++ ports: NoneNumber of COMBO ports: NoneNumber of SFP ports: NoneNumber of SFP+ ports: 4SFP28 ports: NoneNumber of SFP56 ports: NoneNumber of QSFP ports: NoneNumber of QSFP+ ports: NoneNumber of QSFP28 ports: NoneConsole port: YesSupport for Jumbo frames: YesStackability: NoVLAN: Guest VLANProvides a browser-based environment for authenticated clients, similar to IEEE 802.1X.Private VLAN (PVLAN)Increases network security by enabling virtual organization of devices regardless of their physical location, and improves performance by reducing traffic congestion.Management VLANSegments traffic to and from management interfaces, including CLI/Telnet, the web interface, and SNMP.Supported protocols and standards: STP, MSTP, RSTP, PVST+, RPVST+, MVRPSupports IEEE 802.1D STP, IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) for faster convergence, and IEEE 802.1s MSTP (Multiple Spanning Tree Protocol). Additionally, it supports Per-VLAN Spanning Tree (PVST+) and Rapid Per-VLAN Spanning Tree (RPVST+), which improves bandwidth utilization and accelerates convergence. MVRP enables automatic learning and dynamic VLAN assignment.Rapid Ring Protection Protocol (RRPP)A protocol specific to Ethernet ring topologies, designed to prevent broadcast storms and ensure rapid topology convergence, typically under 50 ms. Supports 8 instances and 16 rings.Bridge Protocol Data Unit (BPDU) TunnelingEnables the transparent transmission of STP BPDU frames, allowing for correct spanning tree calculation across carrier networks, WANs, or MANs.QoS: Advanced Classifier-Based QoSClassifies network traffic using multiple matching criteria based on information from OSI Layers 2, 3, and 4; enables the application of QoS policies such as setting priority levels and limiting bandwidth for selected traffic on a port, VLAN, or the entire switch.Security: Secure BootVerifies digital signatures to prevent unauthorized or malicious software from running during system startup.Access Control Lists (ACLs)Provides Layer 2 to Layer 4 (IP) traffic filtering; supports global ACLs, VLAN-specific ACLs, port-specific ACLs, and IPv6-specific ACLs.IEEE 802.1XA standard user authentication method that uses an 802.1X client (supplicant) on the end device in conjunction with a RADIUS server.RADIUS / HWTACACSSimplifies switch security management by utilizing a password authentication server.MAC-based AuthenticationThe client is authenticated by the RADIUS server based on the device's MAC address.L2 features: 16K MAC Address TableSupports a large number of Layer 2 devices.10GbE Port AggregationAllows ports to be grouped together to increase the total data throughput to a remote device.VLAN Support and TaggingSupports the IEEE 802.1Q standard, offering up to 4094 VLAN IDs and 512 simultaneous VLANs.L3 features: Address Resolution Protocol (ARP)Determines the MAC address of another IP host on the same subnet; supports static ARP entries; gratuitous ARP enables the detection of duplicate IP addresses; proxy ARP allows standard ARP operation between subnets or when they are separated by a Layer 2 network.Domain Name System (DNS)Provides a distributed database that translates domain names to IP addresses, simplifying network design; supports client and server modes.Dynamic Host Configuration Protocol (DHCP)Simplifies the management of large IP networks; supports DHCP server, DHCP client, DHCP relay, and rogue DHCP server detection (DHCP Rogue Server Check).Chassis type: RackFan : NoPower supply : ExternalEnvironment requirements: Operating temperature: -5°C to 50°C, Operating relative humidity: 5% to 95%, non-condensingPower supply: AC Power: 90V to 290VDimensions: 440 × 260 × 44 mmEAN: 5902887070815Manufacturer: Hewlett Packard Enterprise1314.70Hewlett Packard Enterprise
