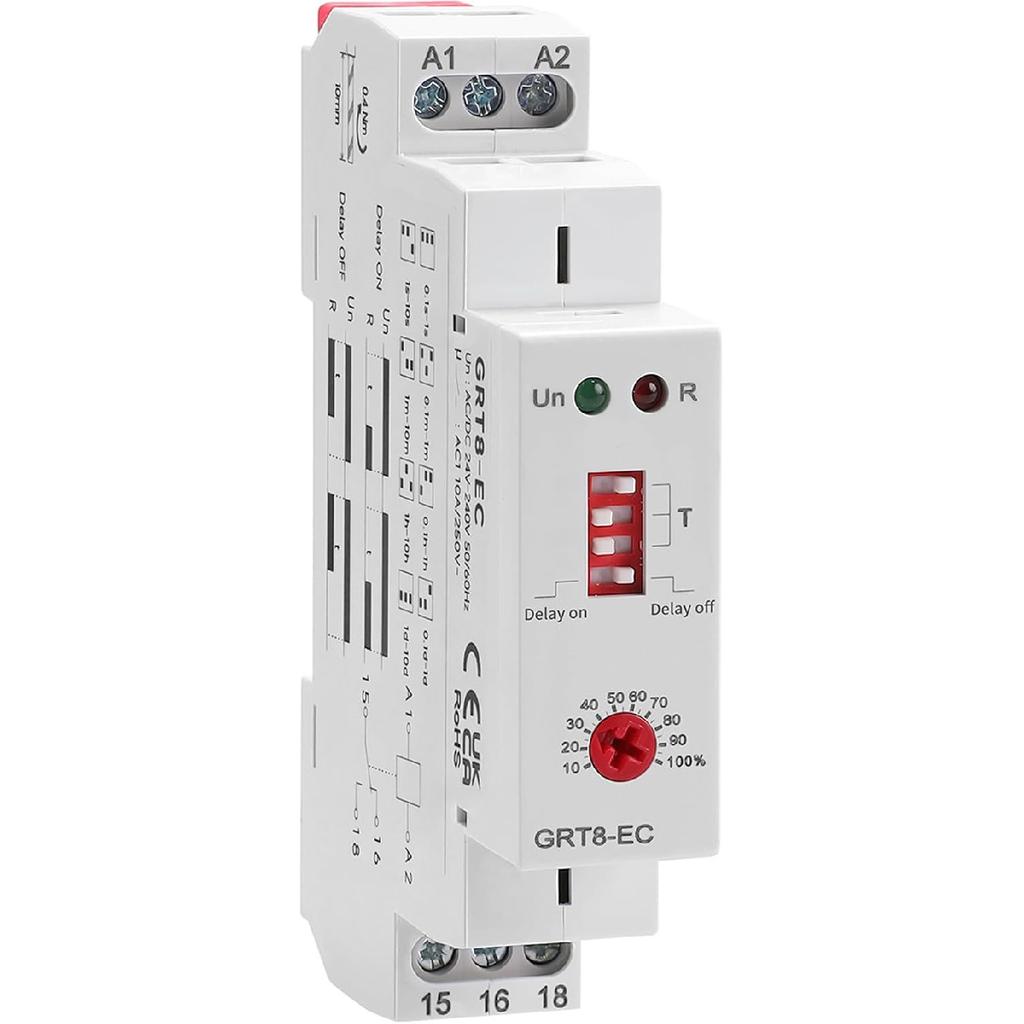

10A Timer Relay On Delay or Off Delay GRT8-EC Dual Function, 24V Time Relay On Delay or Off Delay Adjustable Wide Time Delay Range for 0.1Seconds To

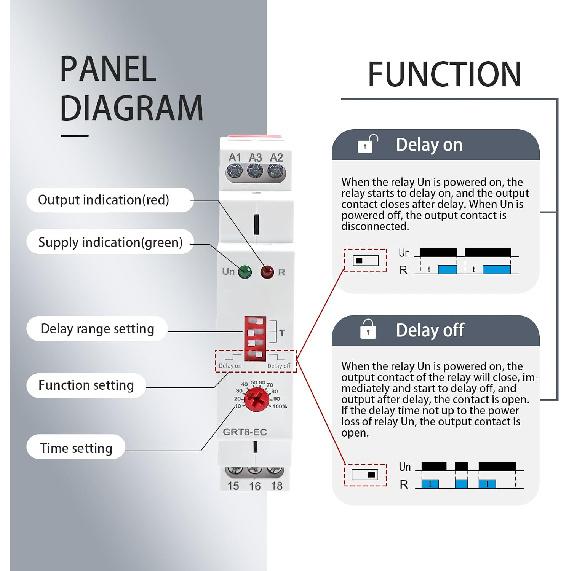

Function& Application : delay off or delay on DC 24v timer relay, preset machine start time or shut down time. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC220V or DC 24V(50-60Hz), rated current of 10A. Output contact: 1SPDT (1NO1NC). This 24V timer delay relay can be used in industrial equipment, lighting, manufacturing industry to accurately control the delay change time of lighting, heating, motors, machines, etc. Indicator Button : the working status of the GRT EC economical adjustable delay relay is indicated by the LED indicator: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality)

the red LED indicator flashes (indicating that it starts working), and the relay delay function works

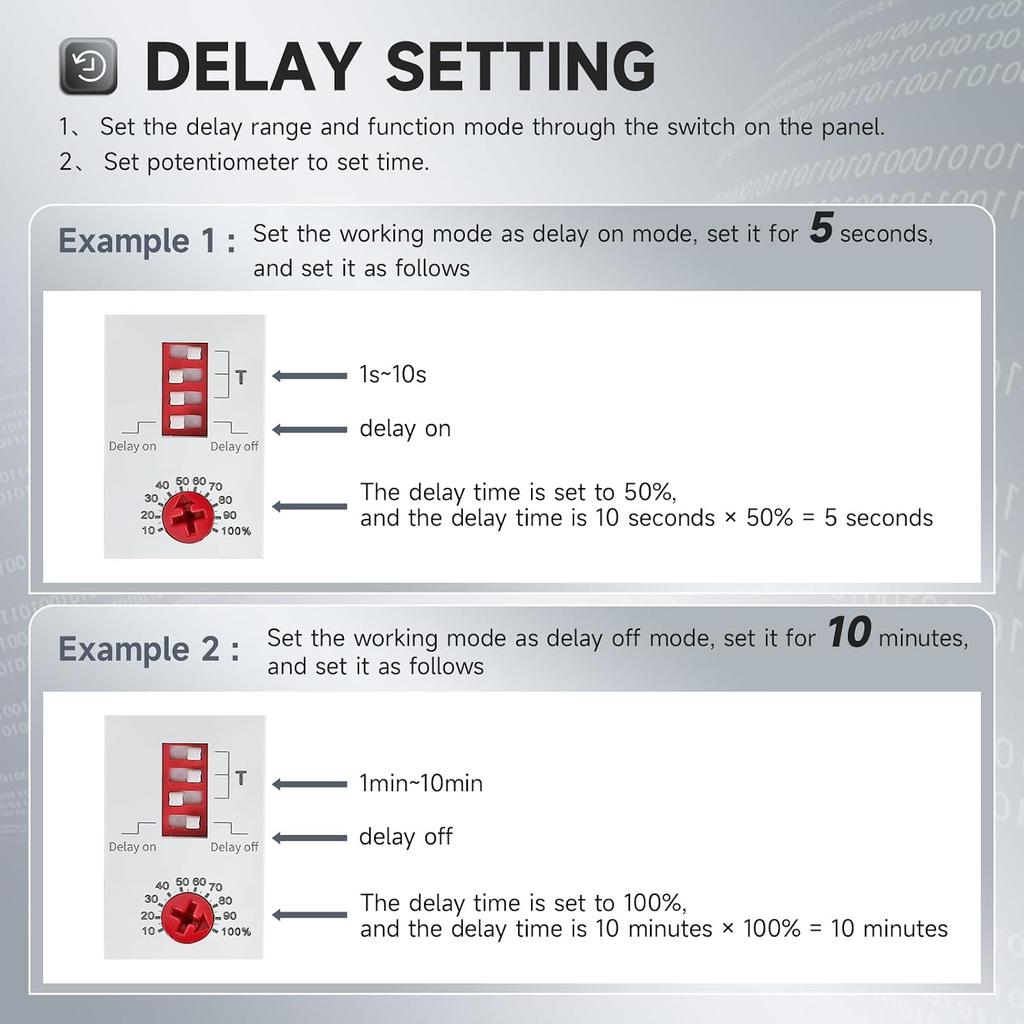

the red LED indicator is always off (indicating that the load stops working). If you need to set a 6-minute delay off, please select the delay off terminal of this delay relay, operate the delay setting T area, select 10 minutes, and finally adjust the round knob to 60%, then the terminal will start working after 6 minutes. Choice Materials : GRT8 EC delayed opening or delayed closing rail timer relay is made of industrial grade plastic and complies with CE, CB, and RoHS standards. It can work stably in different environments and protect your expensive equipment Designed time relay : the GRT8-EC 10A dual function timer relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact Worry Free After-Sales Service : we provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time. Please check the instructions and videos before operation, which can help you better use the relay The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom’s policies and EU Product Safety and Compliance laws.

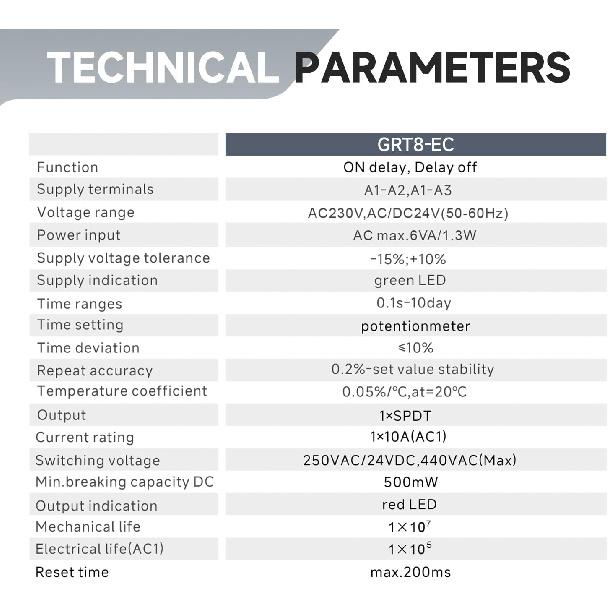

Connector Type: Screw Current Rating: 10 A Mounting Type: DIN Rail Mount Operation Mode: Automatic Coil Voltage: 24 volts_of_direct_current Contact Current Rating: 10 A Minimum Switching Voltage: 24 volts_of_direct_current Upper Temperature Rating: 131 °F Specification Met: CCC, CE, RoHS Brand Name: IGEYAPA Unit Count: 1 Count Included Components: 1PCS GRT8-EC AC240V&DC24V +1*Operating instruction manual Manufacturer: IGEYAPA Model: GRT8-EC AC240V&DC24V Part Number: GRT8-EC AC240V&DC24V
