Inductive proximity switch is a position switch that can be operated without mechanical direct contact with moving parts. When an object approaches the sensing surface of the switch to the action distance, it can be operated without mechanical contact and any pressure, thus driving DC electrical appliances or providing control instructions to computer (plc) devices.
Proximity switch, also known as contactless proximity switch, is an ideal electronic switch sensor.
Compared with general mechanical travel switches, products have many advantages in these aspects, such as general stroke control, positioning accuracy, operating frequency, service life, convenience of installation and adjustment, and adaptability to harsh environment.
When the metal detector is close to the sensing area of the switch, the switch can be contactless, pressure-free, spark-free, and quickly send out electrical instructions, accurately reflecting the position and range of the motion mechanism.
The proximity switch is a kind of on-off sensor (i.e. contactless switch). It has the characteristics of travel switch and micro-switch, as well as sensing performance. It has reliable action, stable performance, fast frequency response, long application life, strong anti-interference ability, and has the characteristics of waterproof, shock proof and corrosion resistance.
Feature:
Products are widely used in machine tools, metallurgy, chemical industry, textile and printing industries. In the automatic control system, it can be used as the link of limit, count, position control and automatic protection.
Specification:
Model: PR30-15DN
Detection distance: 15mm(0.59in) ± 10%
Set distance: 0 -13mm(0.00 -0.51in)
Delay distance: <10% Detection distance
Standard object: Magnetic metal(Detection distance decreases for nonmagnetic metals)
Detect object: Iron 54*54*1mm(2.13*2.13*0.04in)
Size: 28*58mm(1.10*2.28in)
Thread Specification: M30×1.5
Color: As picture shown
Response frequency: DC: 0.5kHz AC: 25Hz
Power: DC 12-24(6-36)(P-P) less than 10%
Withstand voltage: AC 1000V 50/60Hz
Effect of Voltage: Rated voltage±15%, Rated voltage±10% detection distance
Consumption current: N.P: <13mA, D: <0.8mA, A: <1.7mA
Control Output: N.P: <300mA, D:<200mA, A: <400mA
Circuit protection: A: Surge absorption protection N.P.D: Surge absorption protection, Reverse connection protection, Load short circuit protection
Temperature effect
: -25 -+60℃, +23℃,±10% detection distance
-30 - +65℃, +23℃,±15% detection distance
Isolation Resistance: >50Mohm
Material: ABS and Nickel plated brass
Storage and use temperature: -30 - +65℃(No ice, no frost)
Storage and use humidity: 35 - 95%RH
Package list:
1 * Switch
Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.

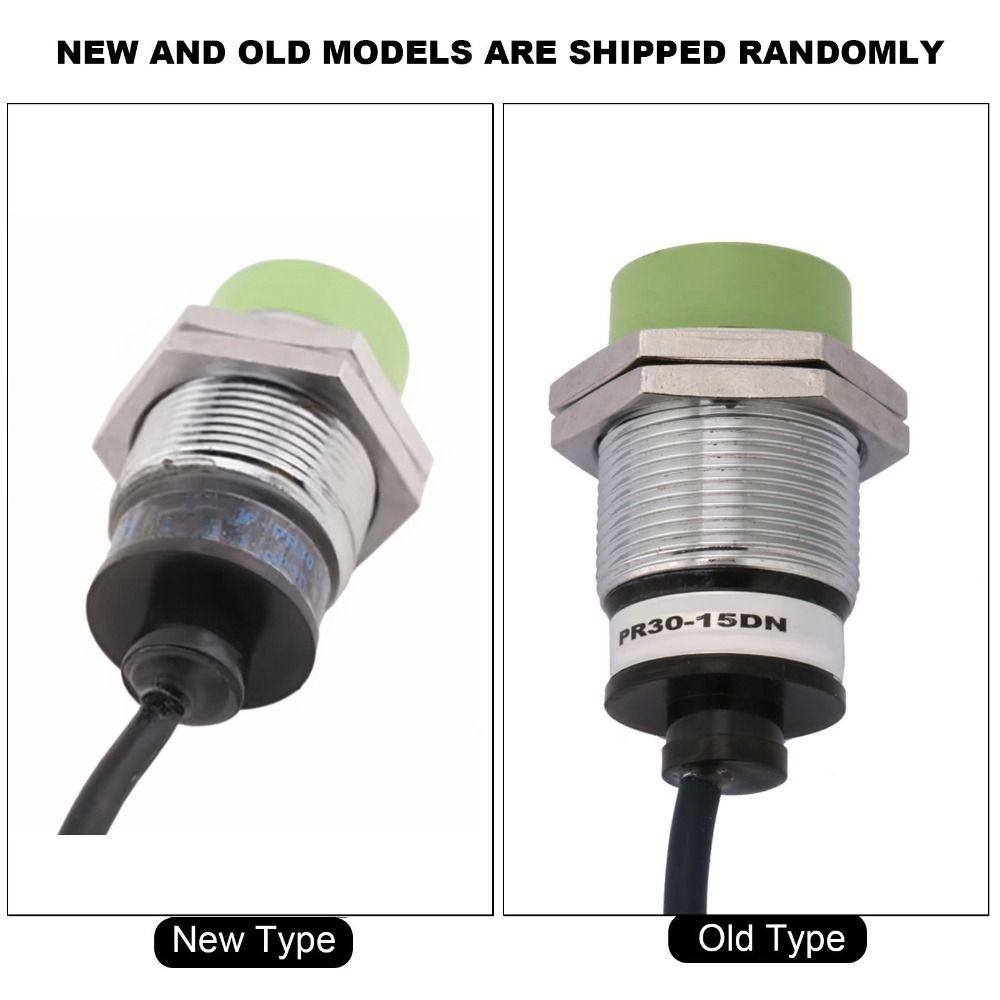

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
