Quantity : 1
High-concerned chemical : none
Supply Voltage : 220V
Type : Relay
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Product selling point:

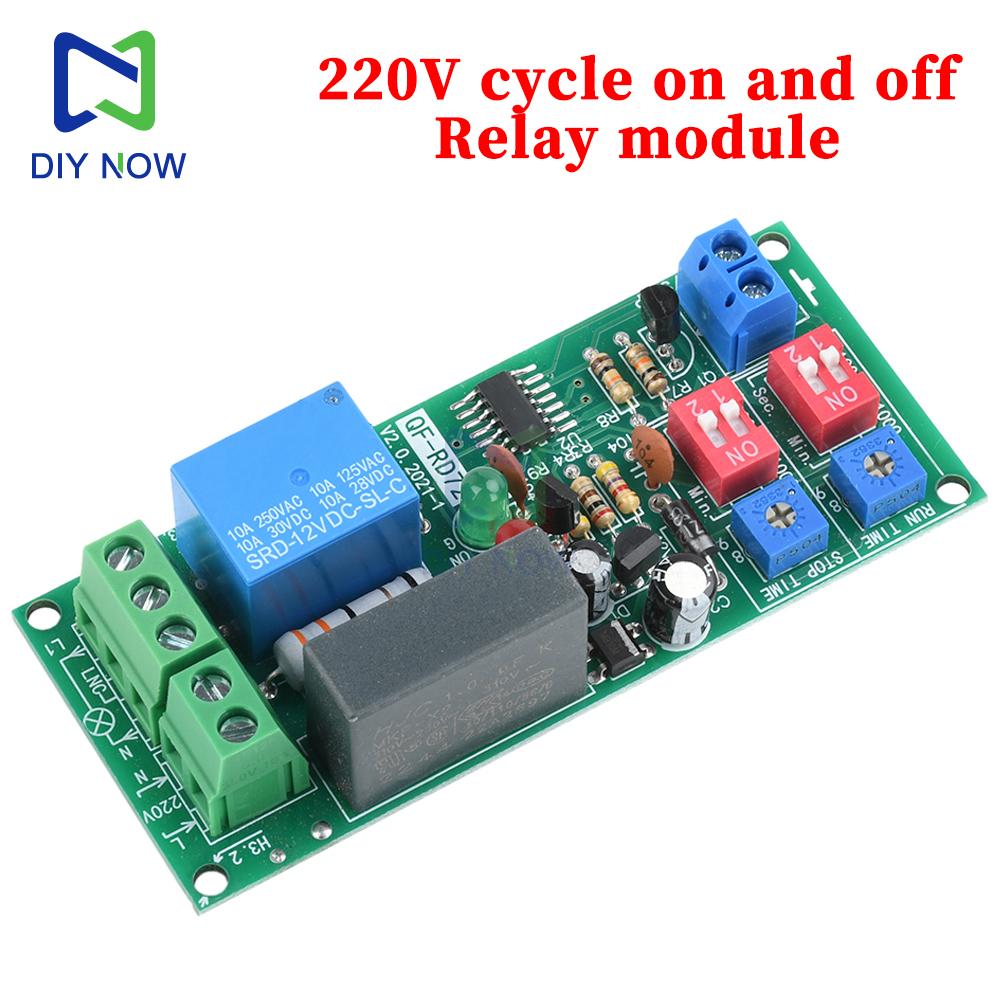

It is a timer relay module with high precision, stable and reliable performance.
You can set a wide time range, both the "run" time and the "stop" time can be adjusted.
Supports power on/off function, the module enters infinite loop mode after power on, and the relay works according to the set run and stop time.
Equipment and product aging test can control reciprocating stroke or repeated power switch.
Widely used in timer operation equipment, machine repeated test circuit, fish tank intermittent pump, etc.
Product parameters:
Voltage: AC 100V-250V, can be used for 100V/110V/120V/127V/220V/230V/240V power supply.
Power consumption: <1.0W
Output: active output, the output voltage is equal to the input voltage.
Maximum output current: <10A
Input: Passive switch input, green indicator light turns on after turning on, red indicator light turns on after stopping
Time range: 0.5 seconds - 1000 minutes
Time accuracy: max. range value * 0.001 (resolution is 1000).
Input (start button): Passive switch input, green indicator light turns on after turning on, red indicator light turns on after stopping
- Start input is not required. You can connect the two terminals 2 terminals with a short wire, and then the board will loop infinitely after powering on (no button).
Life: 100,000 times
Dimensions: 88 x 38 x 22mm / 3.46 x 1.49 x 0.86 inch
Mounting hole spacing: 83 x 33mm / 3.26 x 1.3 inch
Mounting hole diameter: 3.2mm / 0.12 inch
Packing list:
220V cycle on-off relay module *1
Difference between RD72-A standard version and RD72-AS enabled version:
Only the response mode of K1 is different, other aspects are the same

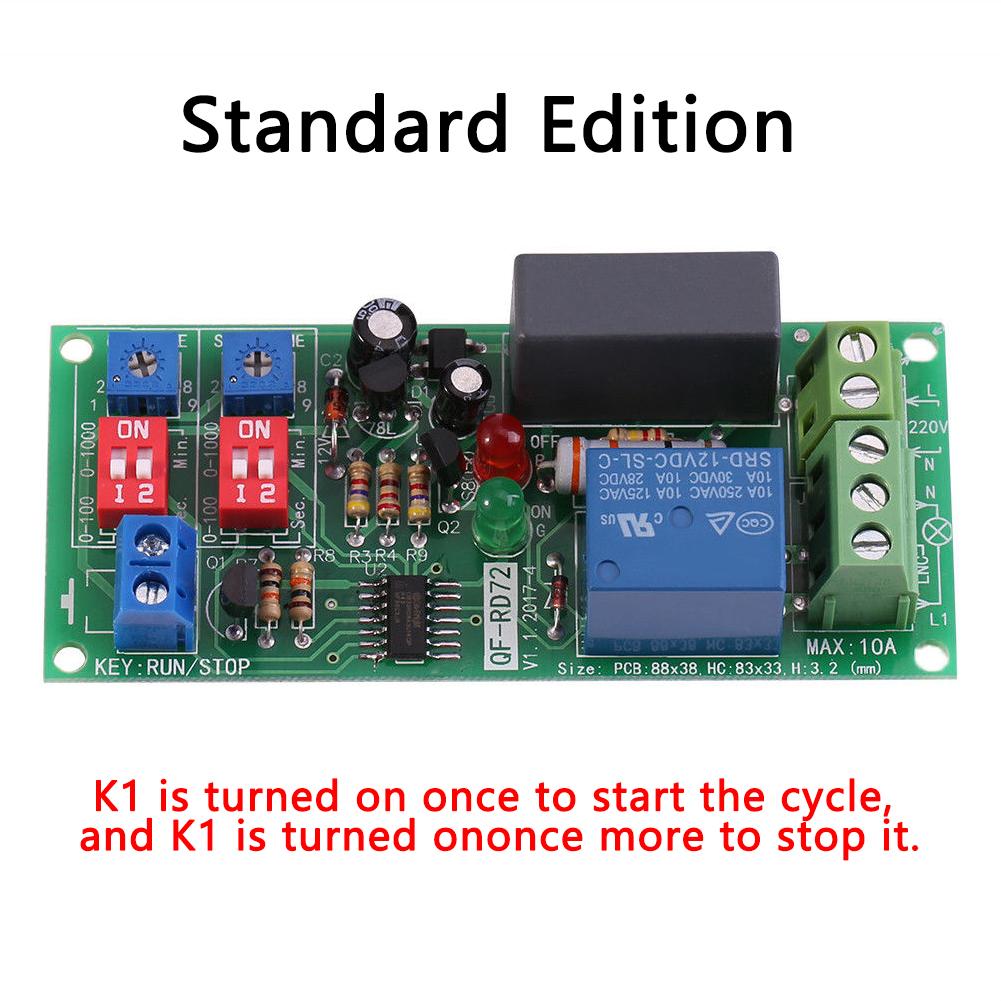

RD72-A standard version: K1 is connected to start the cycle, and K1 is connected again to stop the cycle.

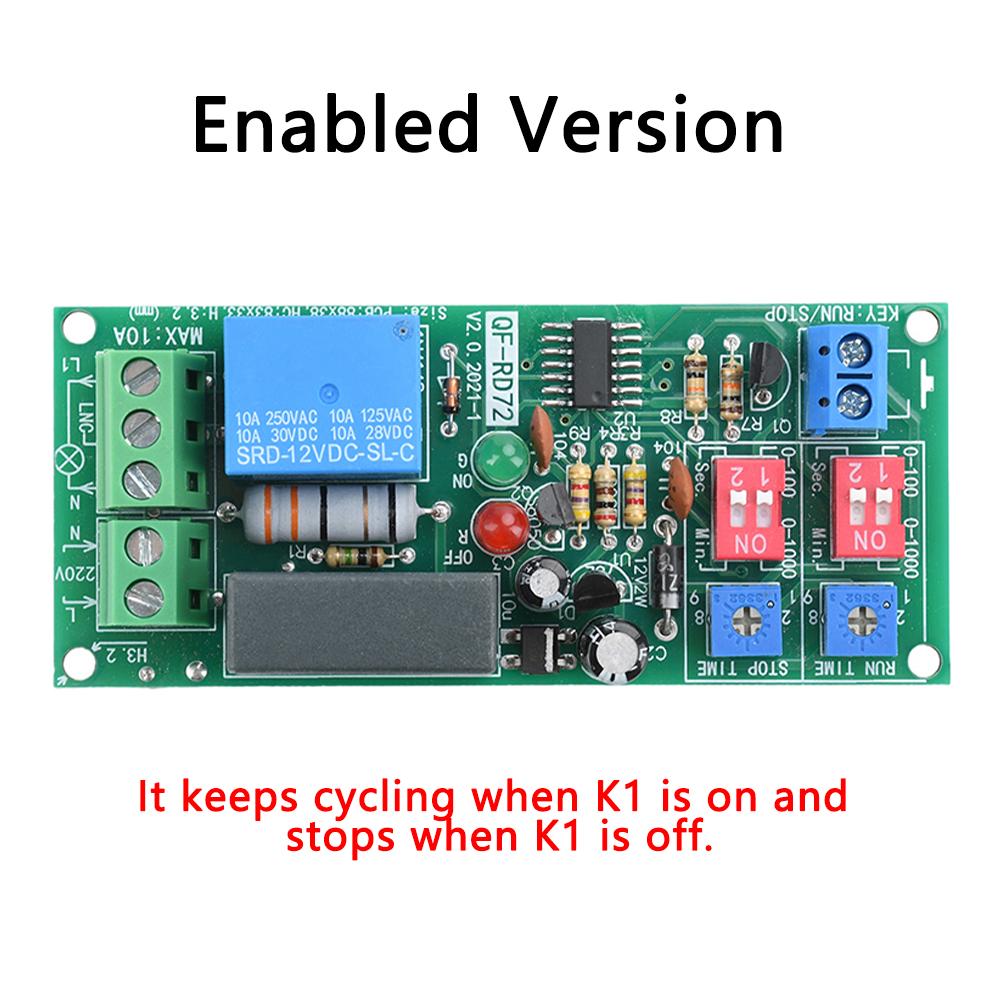

RD72-AS enabled version: K1 keeps circulating when it is connected, and stops when K1 is disconnected
label:yes
Material: paper
