ELECOM ECT-3920WH Power Strip, 30W, 3-Port Type-C to USB-A, 6 Outlets, 2m, with Master Switch, Rotating Legs, and Lightning Guard, White









აღწერილობა

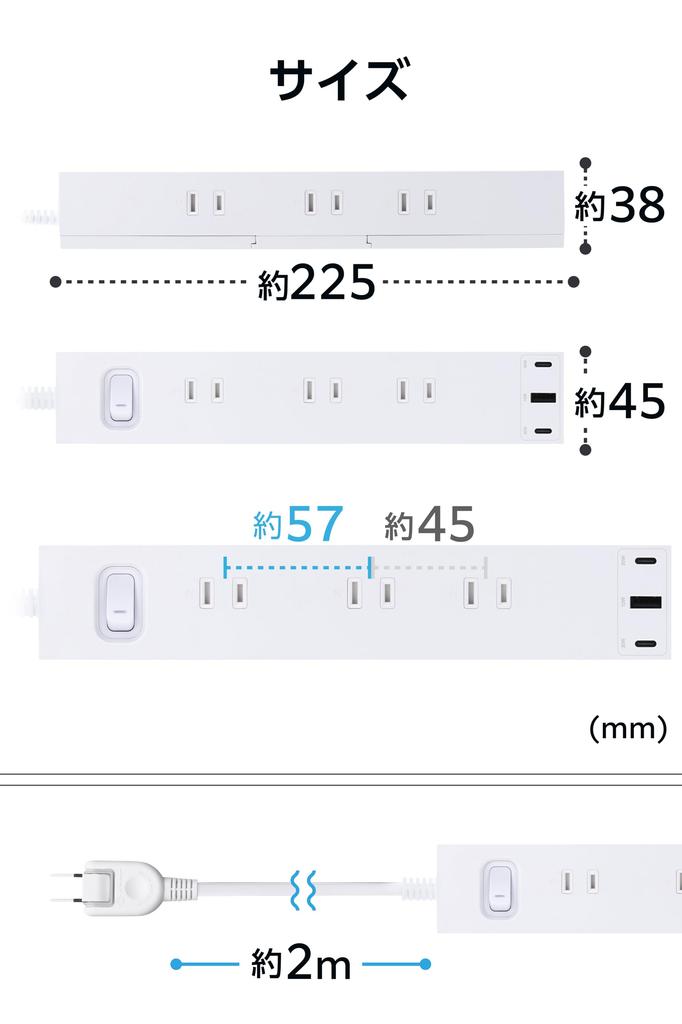

Specifications ■Outlet Type: Type A, 2-pin ■Outlet Count: 6 ■Outlet Spacing: 57mm, 45mm ■Plug Type: Type A, 2-pin ■AC Cord Length: Approximately 2m ■USB Port Type: 2 x USB Type-C™ Ports, 1 x USB-A Port ■AC Power Rating: 14A/125V, up to 1400W ■USB Power Input: 100-240V AC, 50/60Hz, 0.8A ■USB Power Output: [When using one port] USB Type-C1/C2 Ports: 30W (5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A), PPS: 30W (5V-11V/3A, 5V-16V/2A), USB-A1 Port: 12W (5V/2.4A) ■USB Output Power: [USB Type-C1 + USB Type-C2 Ports Connected] Maximum 24W Total, USB Type-C1/C2 Ports: 15W (5V/3A) ■USB Output Power: [USB Type-C1/C2 + USB-A1] Maximum 24W Total, USB Type-C1/C2 Ports: 15W (5V/3A), USB-A1 Port: 12W (5V/2.4A) ■USB Output Power: [USB Type-C1 + USB Type-C2 + USB-A1 Ports Connected] Maximum 24W Total, USB Type-C1/C2 Port: 15W (5V/3A), USB-A1 Port: 12W (5V/2.4A) ■ Polarity: △ (Outlet is compatible, plug has markings only) ■ Switch: ◯ (Bulk) ■ Lightning Guard: ◯ ■ Dust Shutter: ◯ (AC Outlet Only) ■ Anti-Disconnect Function: ◯ ■ Power Indicator: ◯ ■ Double Construction: ◯ ■ Double Insulation: ◯ ■ Plug with Insulation Cap: ◯ ■ Swing Plug: ◯ ■ Magnet: ◯ ■ Hanging Hole: ◯ ■ Circuit Breaker: ◯ ■ USB Power Delivery Compatible: ◯ ■ Color: White ■ Material: Main Unit: PCR, Outlet: Urea Resin, Plug: PVC Resin ■ Dimensions: Approx. 225mm W x 45mm D x 38mm H (Main Unit Only, excluding cable protrusions) ■ Weight: Approx. 530g ■ Accessories: Instruction Manual ■ Compatible Regions: Japan Only ■ Regulations: ◇PSE Specified Electrical Appliance ■ Warranty Period: 1 Year

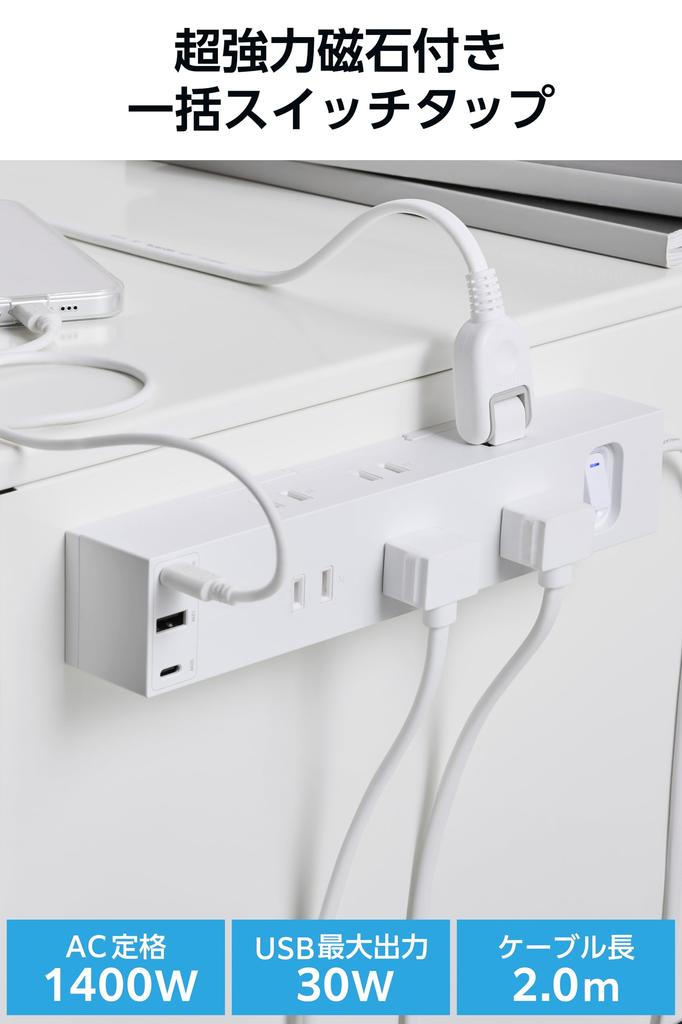

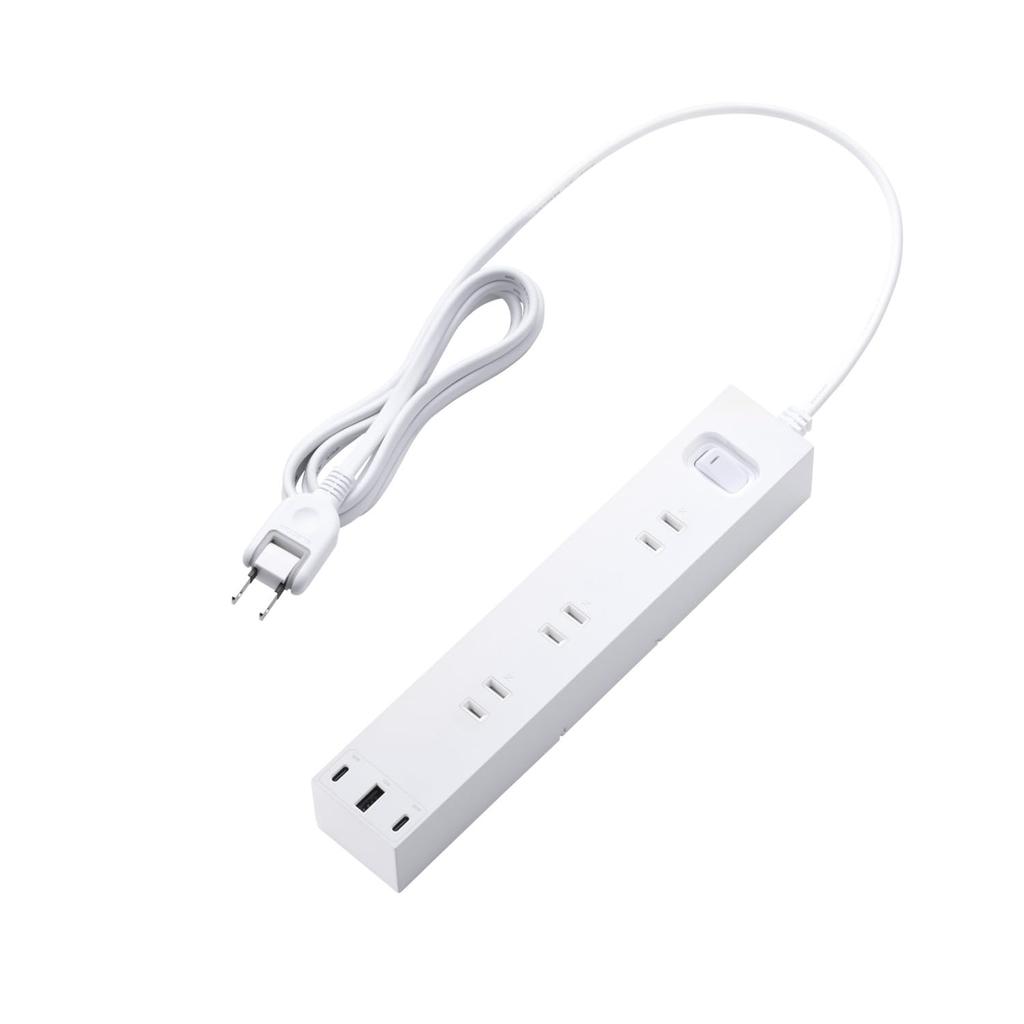

【 Description 】 ■ This power strip features six 2-pin sockets, three on each side and three on the top. ■ Two USB Type-C™ ports and one USB-A port are included. Plug a USB cable directly into the power strip to charge laptops, tablets, smartphones, and more. ■ An ultra-strong neodymium magnet is located on the bottom. It adheres securely to steel furniture and office equipment. ■ Features a convenient 360-degree rotating element. Unfolding the rotating element reduces tipping over when connecting a heavy AC adapter or if the cable is pulled. ■ The rotating element has a hanging hole approximately 10mm in diameter, allowing you to hang it on a wall or other surface with a hook or screw. ■ Features a master switch that turns connected devices on and off simultaneously to conserve standby power. It illuminates blue when on, allowing you to check the on/off status at a glance. ■ When using the USB Type-C port alone, it can output up to 30W of USB Power Delivery. In addition to charging compatible laptops, it also allows for high-speed charging of smartphones and tablets. ■※USB Power Delivery is a USB standard that enables high-speed charging by exchanging information between the adapter and connected device to select the appropriate power for that device. ■The PPS function allows you to charge compatible connected devices without putting a strain on them by varying the voltage and current. ■※PPS (Programmable Power Supply) is an optional standard for USB Power Delivery that adjusts the voltage in 0.02V increments to efficiently supply the appropriate power. ■The USB-A port supports "Automatic Charging," in which a high-performance IC automatically identifies the connected device and charges it accordingly. ■The outlet can also accept two-pin plugs, such as smart plugs made overseas, which have different blade widths depending on the polarity. ■The power plug has the same blade width depending on the polarity. ■If you need to match the polarity of the connected device, align the long hole of the outlet with the "E" side of the ELECOM logo (the side with just "ELECOM" written on it) on the power plug. ■ The sockets are spaced 57mm apart at the widest point and 45mm apart at the narrowest point. The widely spaced sockets minimize interference with adjacent sockets, even when using large adapters. ■ Equipped with a varistor with a surge current rating of 3000A/15 times and a limiting voltage of 775Vmax (50A 8/20μs), it protects connected devices by absorbing lightning surges caused by induced lightning. ■* Protecting connected devices may not be possible in the event of a direct lightning strike or a lightning surge exceeding the element's tolerance, even if the surge is induced lightning. Performance will also degrade depending on the voltage and number of strikes. ■ The housing features a double-layered construction, with a highly flame-retardant PCR resin exterior and a thermosetting resin (urea resin) interior. This prevents melting in the event of overheating, effectively preventing electrical fires. ■ Equipped with a dust-proof shutter to prevent dust from entering the socket when not in use. ■ The 180-degree swing plug facilitates wiring even in tight spaces. ■The power cord features a double-insulated cord that complies with the Japan Wiring Systems Industry Association standard (JWDS0010), effectively preventing electric shock and fire caused by broken wires or torn insulation. ■The flat cord features two parallel cores, making it flexible and easy to handle. ■The 0.8mm thick blade holder inside the socket is resistant to deformation even with repeated use. This prevents the plug from losing its holding force and reduces heat buildup in the socket, allowing for worry-free use. ■The plug features a thermosetting resin between the blades that effectively prevents tracking, a fire-causing phenomenon, and is equipped with an insulating cap to reduce the risk of electric shock. ■*Some devices may stop output when they detect a drop in current as they approach full charge. This is not a malfunction, so please be aware of this beforehand. ■*USB Type-C and USB-C are trademarks of USB Implementers Forum. ■This product meets one or more of our company's environmental certification standards and bears the "THINK ECOLOGY" mark. ■In an effort to protect the environment, this product uses more than 20% less plastic in its packaging than our internal standards. ■In an effort to protect the environment, this product's packaging is made entirely of paper, cardboard, and plastic bags.
[Product Inquiries] Please visit our website. This power strip features six 2-pin ports, three on the top and three on the side. The USB ports include two USB Type-C™ ports and one USB-A port. Plug a USB cable directly into the strip to charge devices like laptops, tablets, and smartphones. The base features an ultra-strong neodymium magnet, which adheres securely to steel furniture and office equipment. The convenient 360-degree rotating element prevents the power strip from tipping over when a heavy AC adapter is connected or the cable is pulled. The rotating element has a hanging hole approximately 10mm in diameter, allowing it to be hung on a wall or other surface using a hook or screw.
