Feature:

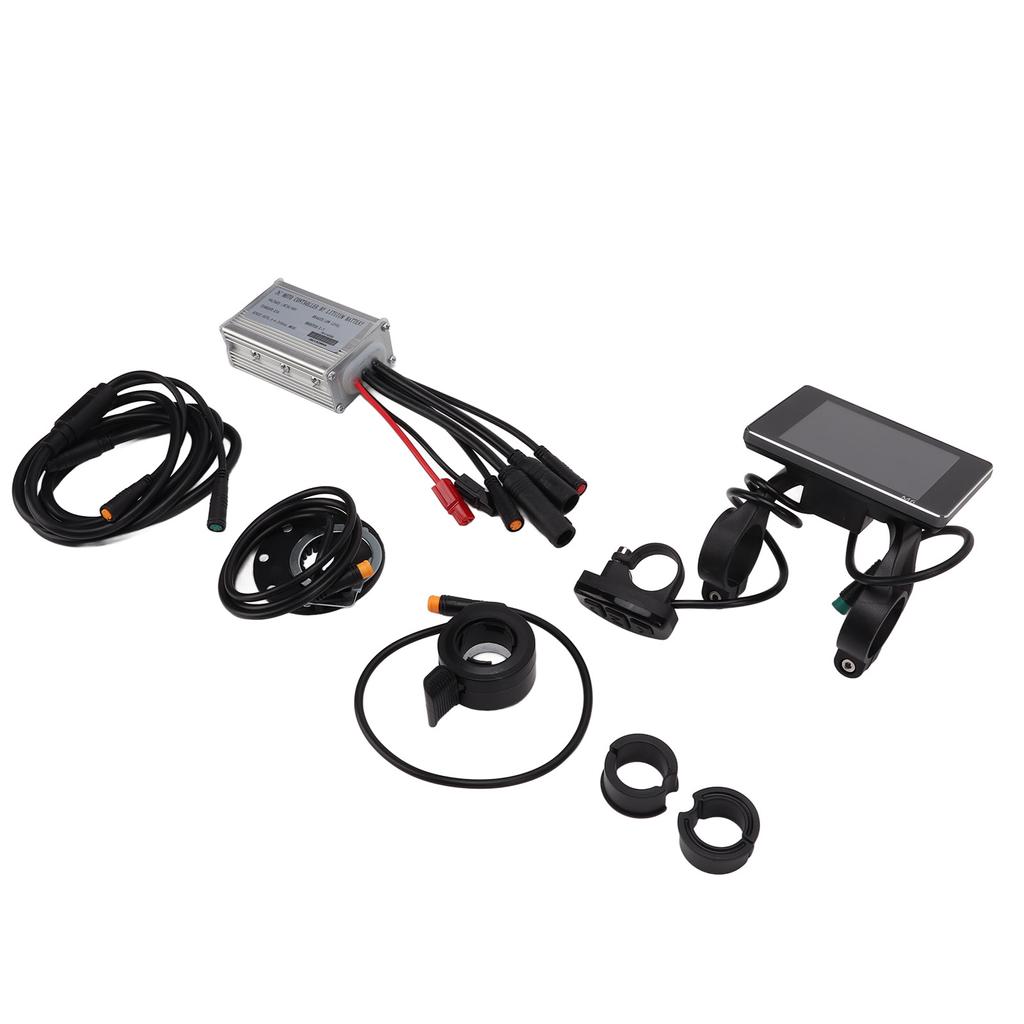

1. Rich Content: There is 15A controller, M6 LCD panel, 130X thumb throttle, 8C power assist sensor, 1 to 2 cable included in the package, the rich content can meet your needs to convert your electric bikes or repair the damaged part.
2. High Performance: LCD instrument adopts high quality ABS material which is light weight, has good toughness and waterproof properties, providing better protection for internal circuits, making it more durable.
3. Outer Housing: The controller housing is made of high quality metal with grooves designed to protect the internal circuitry from thermal overload due to good heat dissipation.
4. Panel Function: Panel are compatible with 36V and 48V voltages, and while riding the bike, the product will display a lot of useful data on your bike, such as intelligent power display, truly reflect battery power, real time record power consumption, ensure cycling mileage, headlight control, backlight brightness 3 level adjustment, 5 gear control, mileage display, fault code display, power promotion mode 6km h, etc. External 3 way button is easy to operate.
5. Application Scope: Suitable for 250W,350W motor; Main uses is for DIY electric bike, electric bike, electric scooter, folding bikes, etc.; Easy to maintain, the lithium ion bike modification greatly enhances the pleasure of riding.
Specification:
Item Type: Electric Bike Conversion Kit
Material: Aluminum Alloy + ABS Plastic
Color: As Picture Shown
Application: for 250W, 350W Bicycle Motor
Gross Weight: Approx.643g 22.7oz
Product Size: Controller Box 82x52x30mm 3.2x2.05x1.2in, Panel 95x60mm 3.7x2.4in
Controller Rated Voltage: 36V DC 48V DC
Controller Maximum Current: 15A
Controller Speed Setting: 1 4.2V
Controller Brake Input: Low Level
BOOSTER: 1:5
Connector Type: Fully Waterproof Connector.
Package List:
1 x Motor Controller1 x Panel2 x Panel Washer
1 x Thumb Throttle1 x Power Assist Sensor1 x Controller Wiring Manual1 x 1 to 2 Cable
Note:
Conversion kit must be fully waterproof.
